Home >> Mitsubishi >> 2003 >> Lancer LS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> On-Vehicle Service - Except Evolution >> Transaxle Control >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION: When removing and installing the transaxle control cable and shift lock cable unit, be careful not to impact the SRS-ECU.

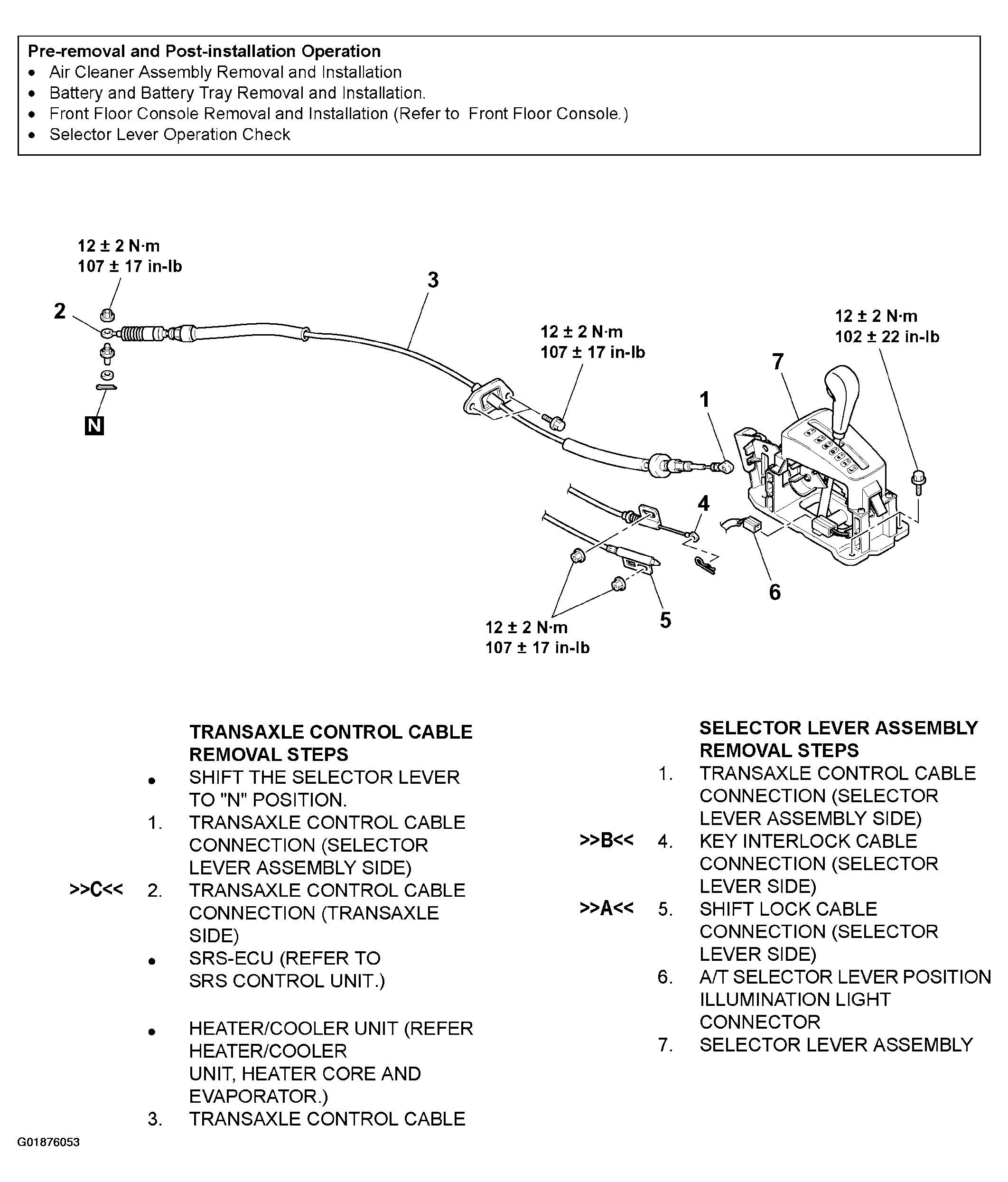

Fig 1: Removing/Installing Transaxle Control
G01876053Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
