Home >> Mitsubishi >> 2003 >> Lancer LS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul - Except Evolution >> Second Brake >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

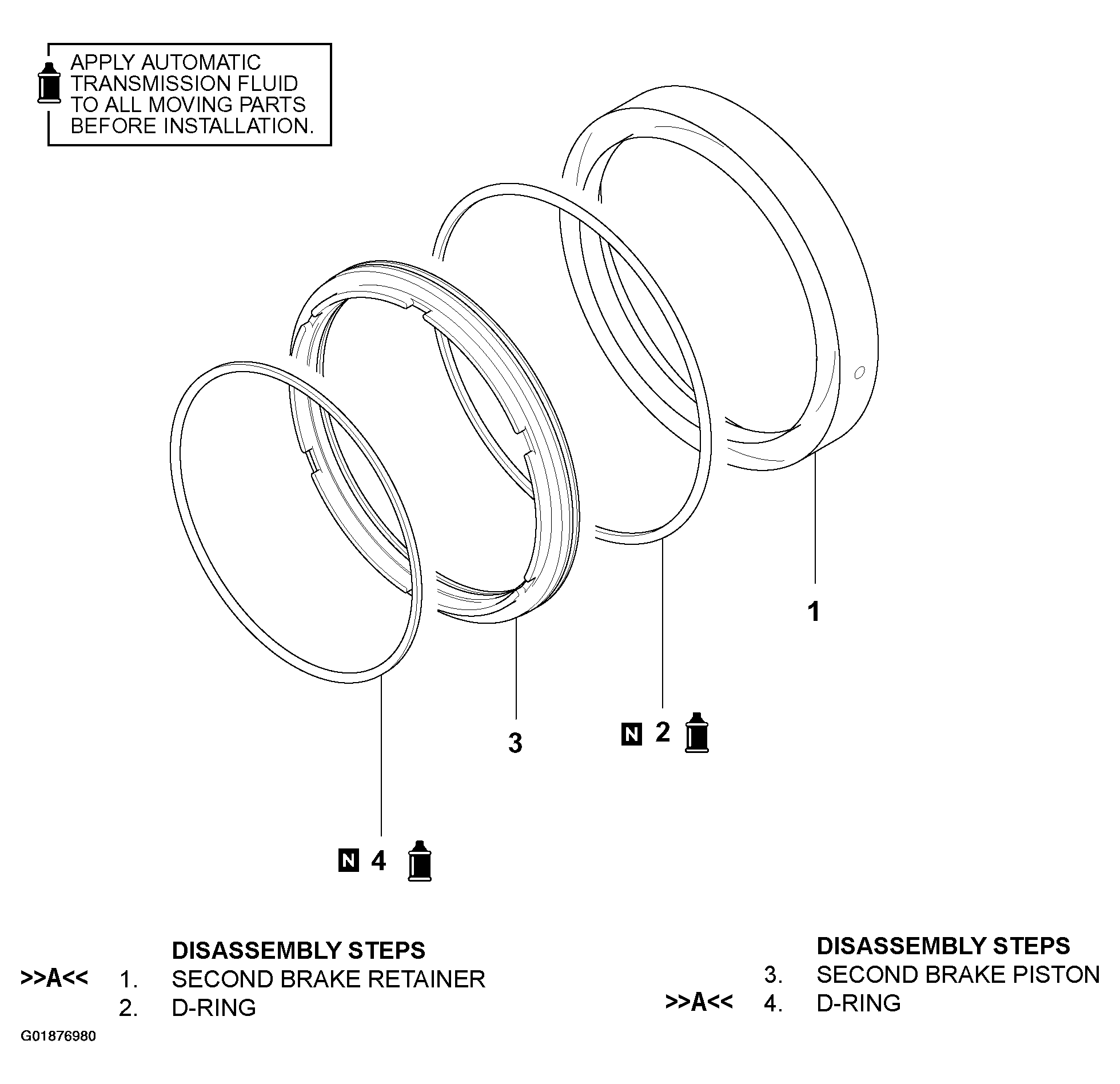

Fig 1: Disassembly & Assembly Of Second Brake
G01876980Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
