Generators & Regulators: Overhaul: Generator: Notes

For generator overhaul procedures, see Fig 1 .

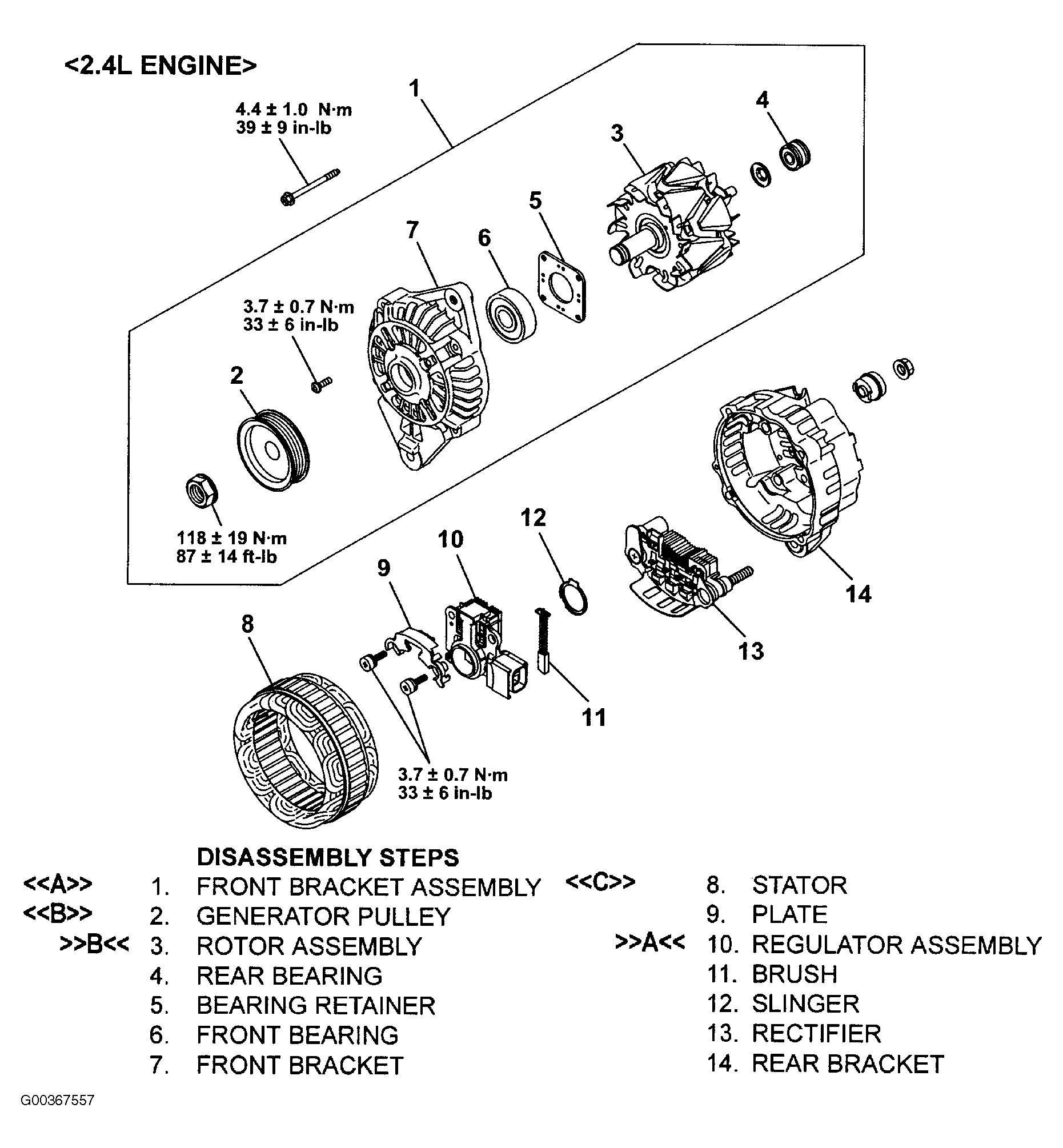

Fig 1: Exploded View Of Generator Disassembly & Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
