Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

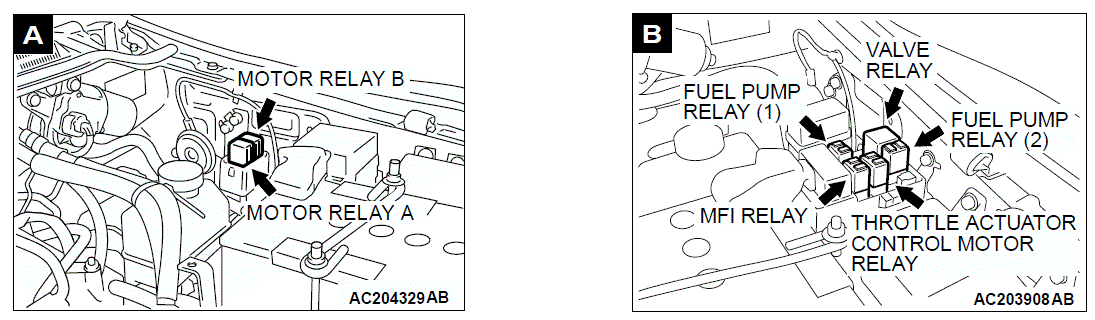

Fig 1: Engine Compartment

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Left Side Of Dash

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Dash

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Left Side Of Engine Compartment

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

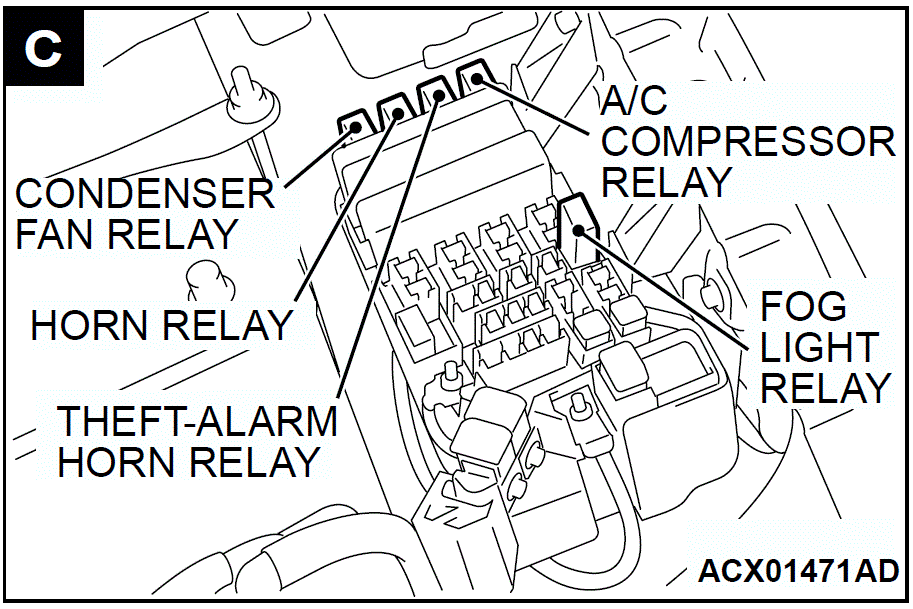

Fig 5: Engine Compartment Relay Box

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
