Starter Relay Check

NOTE: For starter relay testing, see Fig 1 .

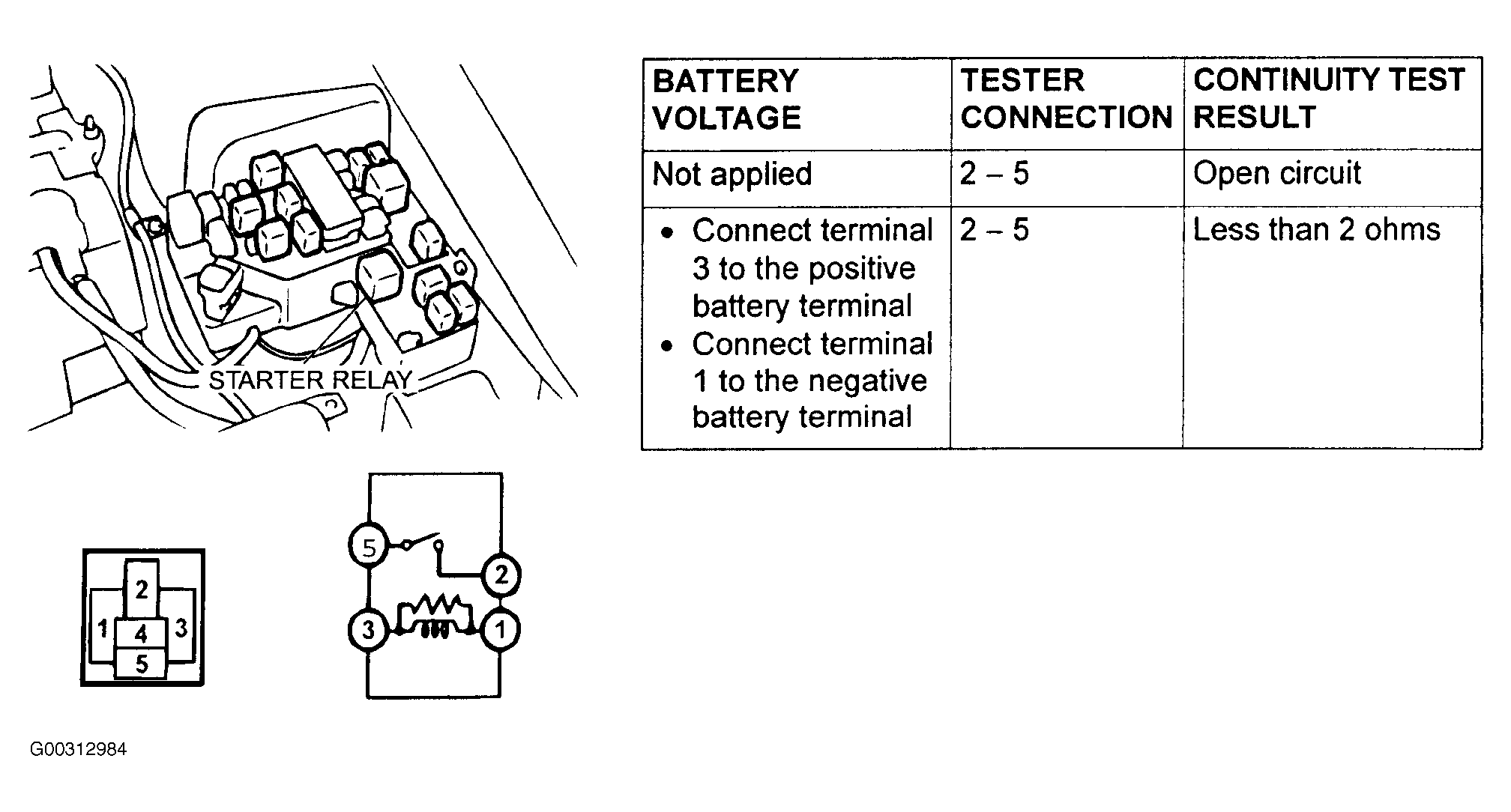

Fig 1: Testing Starter Relay

G00312984

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
