Repair and Diagnosis: Electrical: Starters: Overhaul: Notes

NOTE: To assist in overhaul use illustration. See Fig 1 .

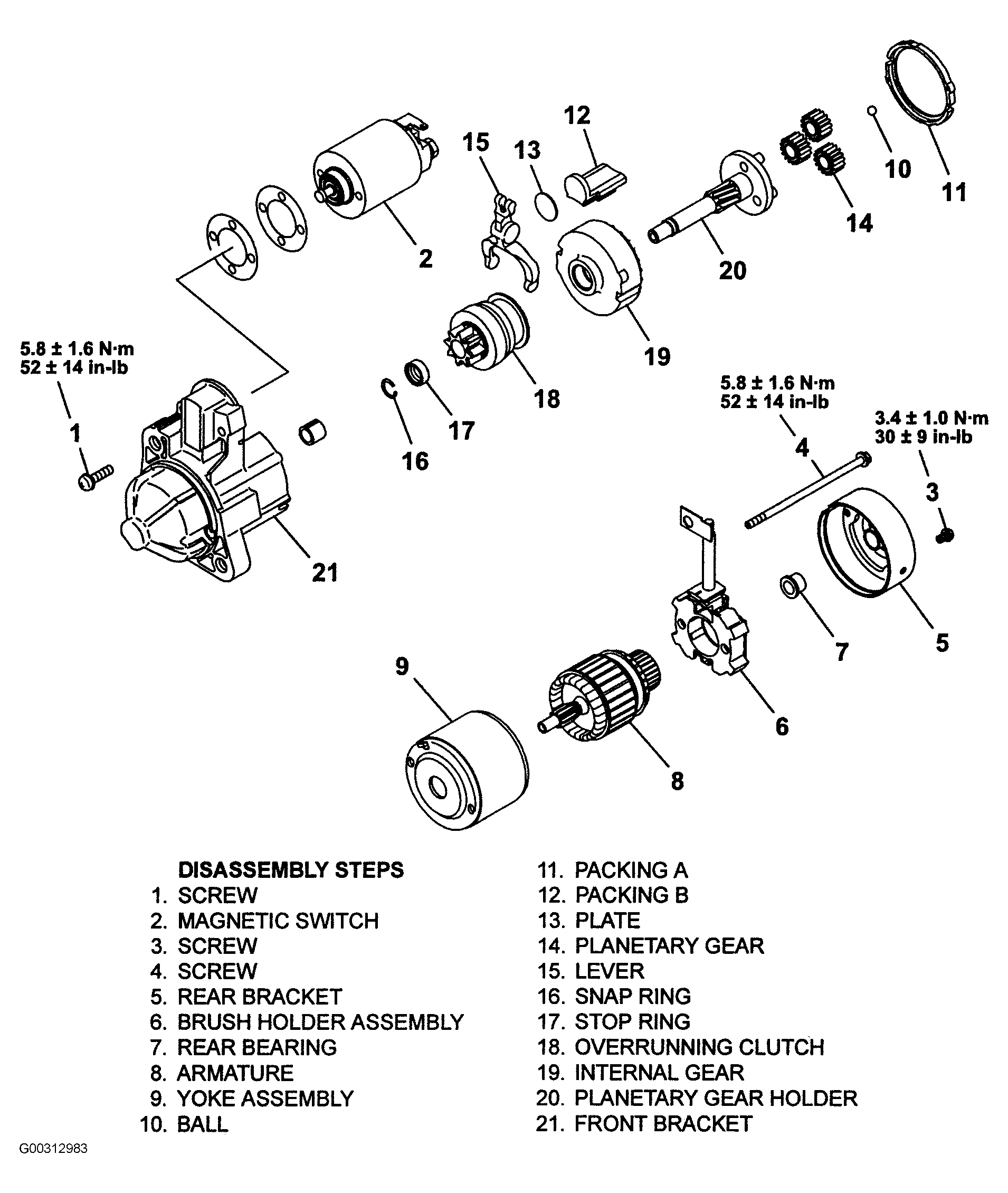

Fig 1: Exploded View Of Starter Motor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
