Disassembly And Assembly: Notes

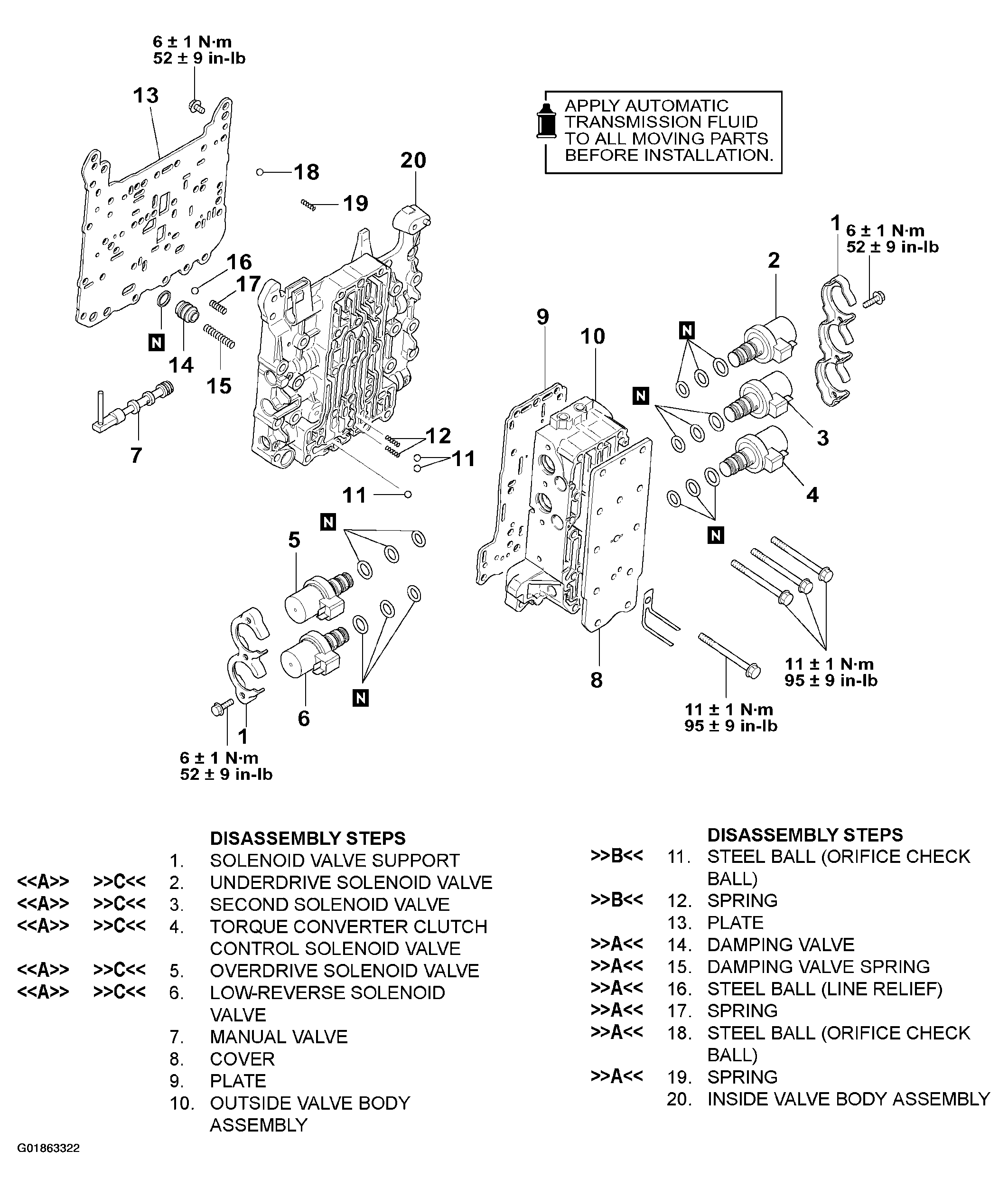

Fig 1: Exploded View Of Valve Body (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

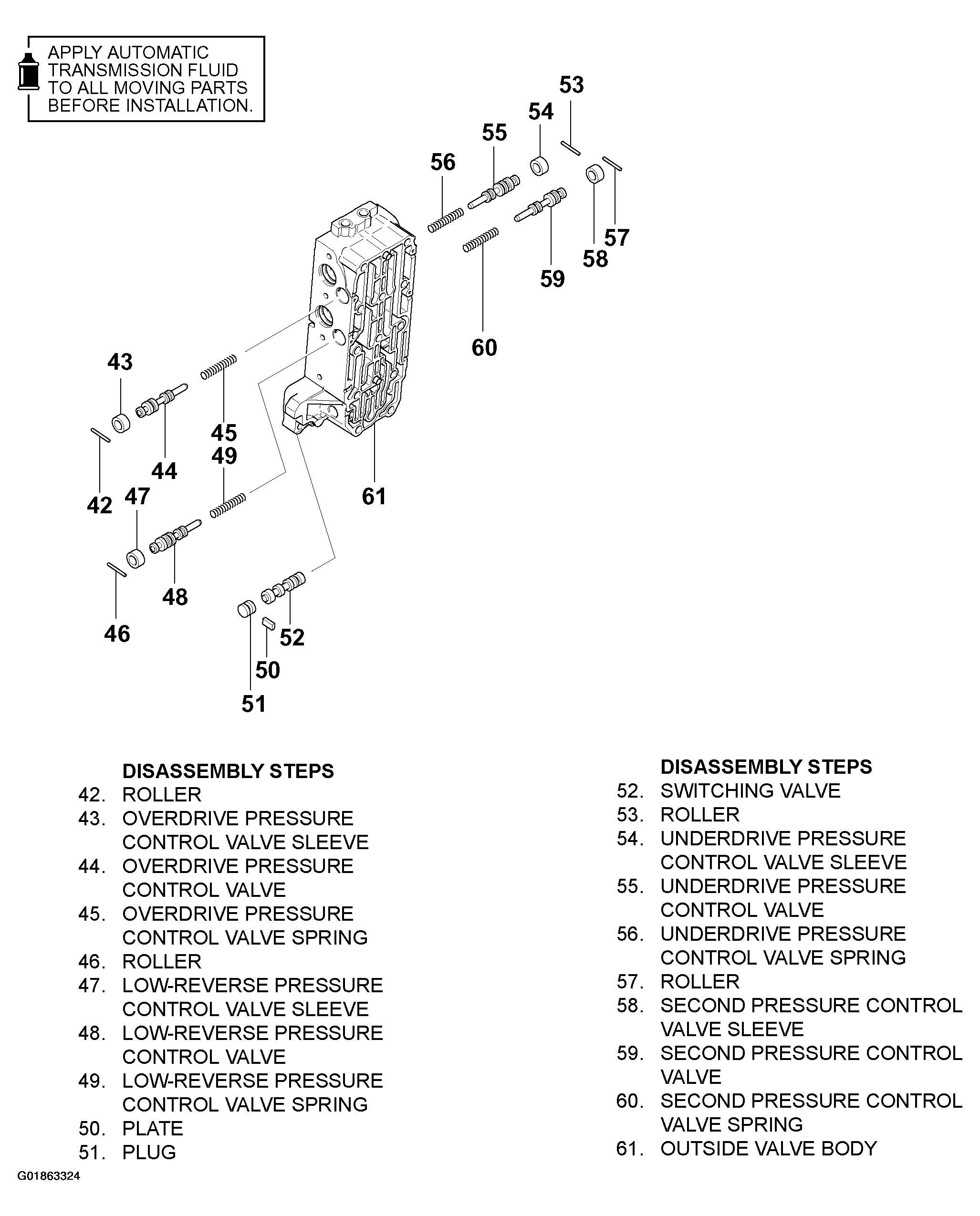

Fig 2: Exploded View Of Valve Body (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Exploded View Of Valve Body (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
