Components And Functions

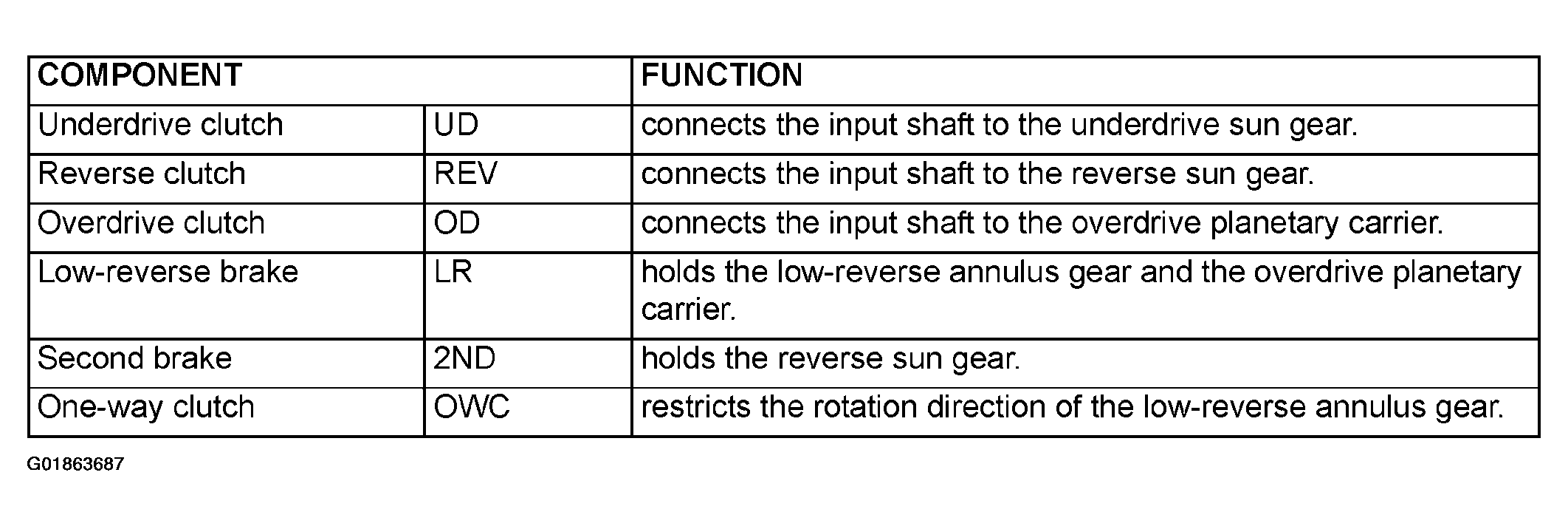

Fig 1: Identifying Transaxle Components And Functions
G01863687Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
