Shift Switch Assembly Continuity Check
Shift Switch Assembly Continuity Check

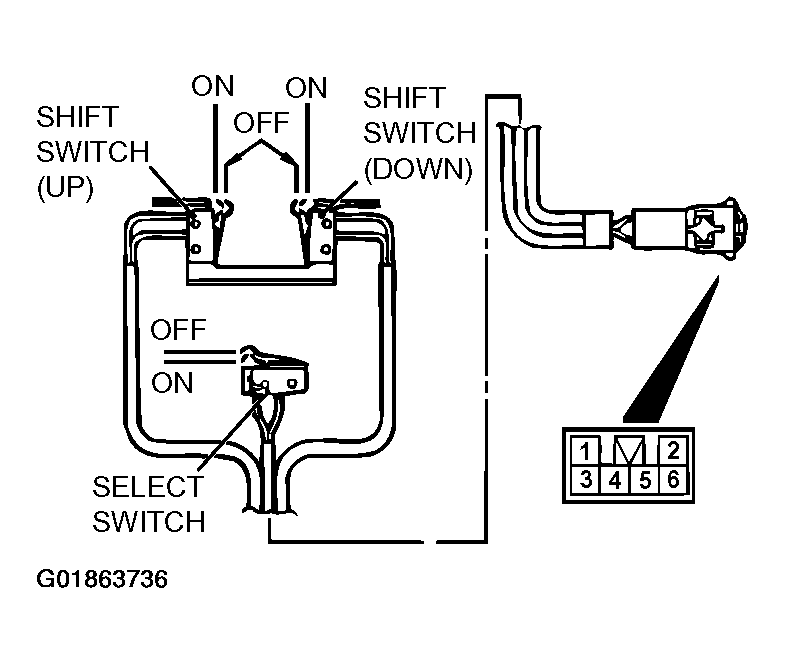

Fig 1: Identifying ON/OFF Position And Terminals Of Shift Switch Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

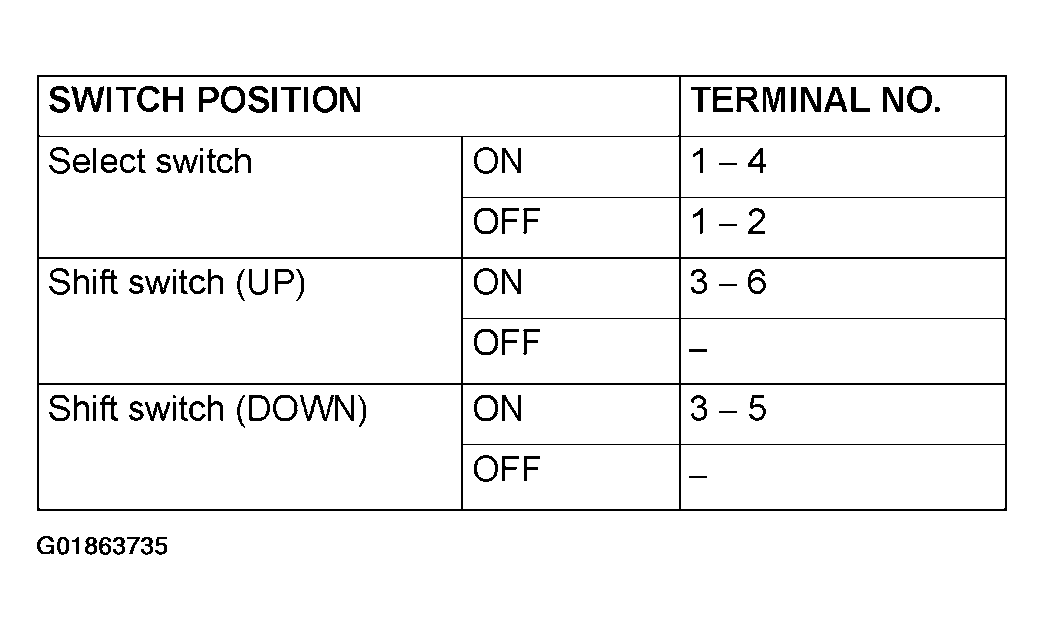

Fig 2: Shift Switch Assembly Continuity Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
