Home >> Mitsubishi >> 2003 >> Outlander LS, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Transaxle Control >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION: When removing and installing the transaxle control cable and shift lock cable unit, be careful not to hit the SRS-ECU.

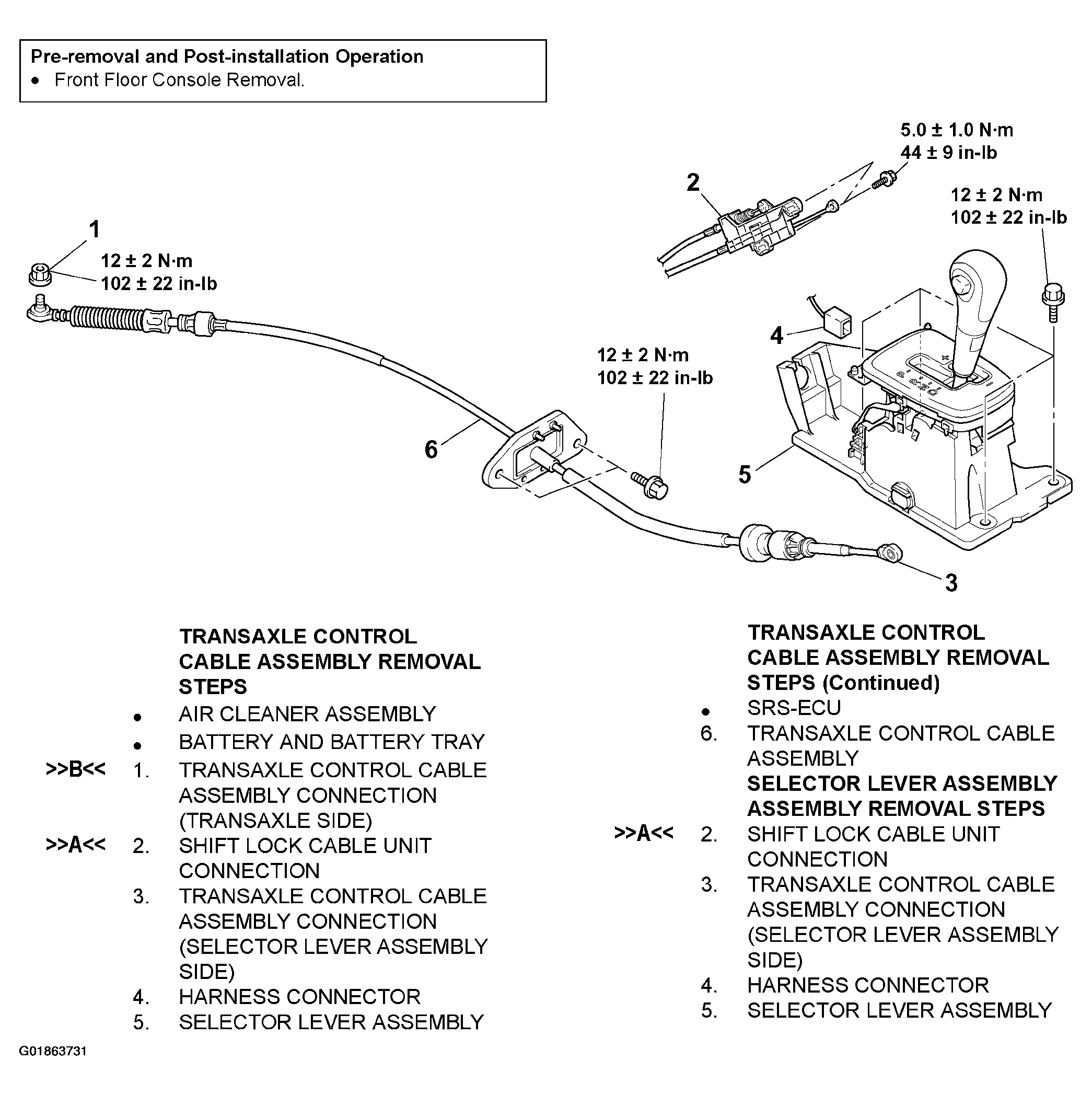

Fig 1: Removal And Installation Of Transaxle Control Cable And Shift Lock Cable Unit
G01863731Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
