Key Reminder Switch Continuity Check

Disconnect key reminder switch connector C-304 without removing the ignition switch and key reminder switch. Then check the continuity.

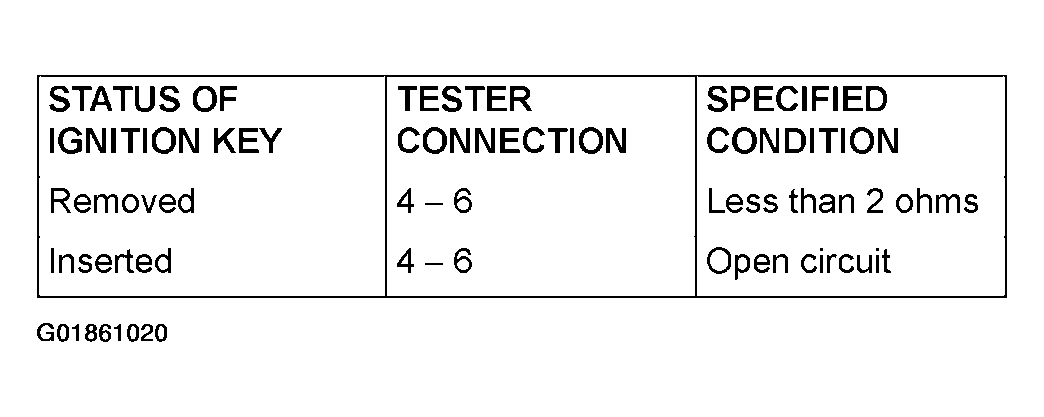

Fig 1: Key Reminder Switch Continuity Reference Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

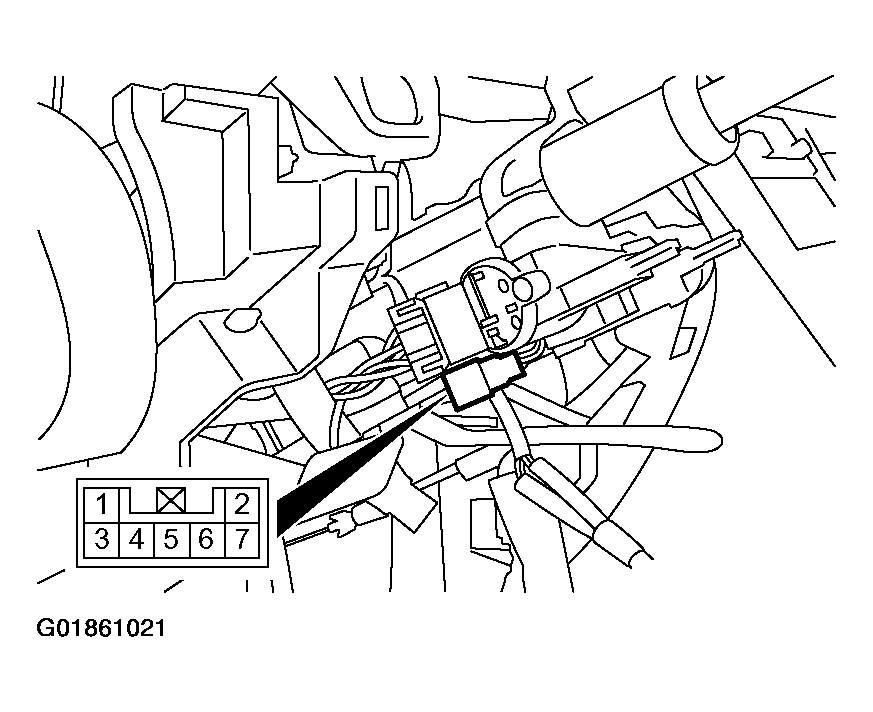

Fig 2: Identifying Key Reminder Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
