Removal And Installation: Notes

WARNING:
  • Before removal of the air bag module, refer to AIR BAG SAFETY PRECAUTIONS .
  • When removing and installing the steering wheel, do not let it bump against the air bag module.

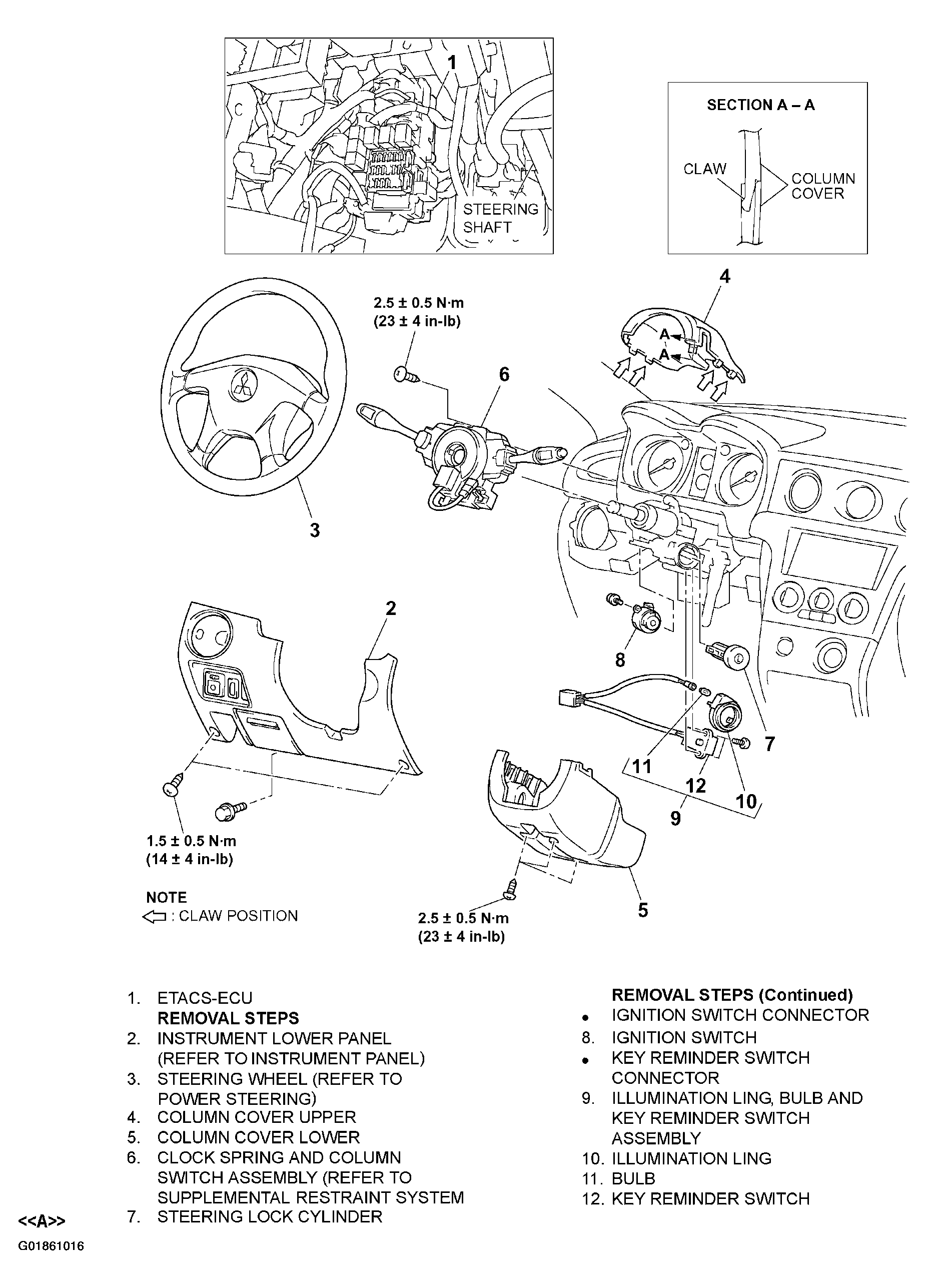

Fig 1: Removing Ignition Switch
G01861016Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
