Brush Check

  1. Brushes that are worn beyond wear limit line, or oil-soaked, should be replaced. See Fig 1 .

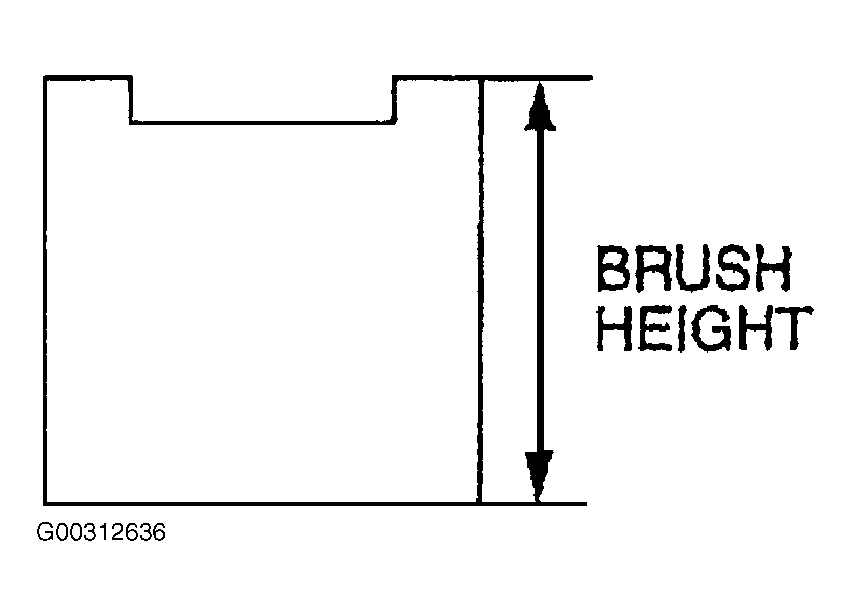

    Fig 1: Checking Brush Height
    G00312636Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. When replacing the ground brush, slide the brush from the brush holder by prying the retaining spring back.
