Removal And Installation: Notes

CAUTION: : Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

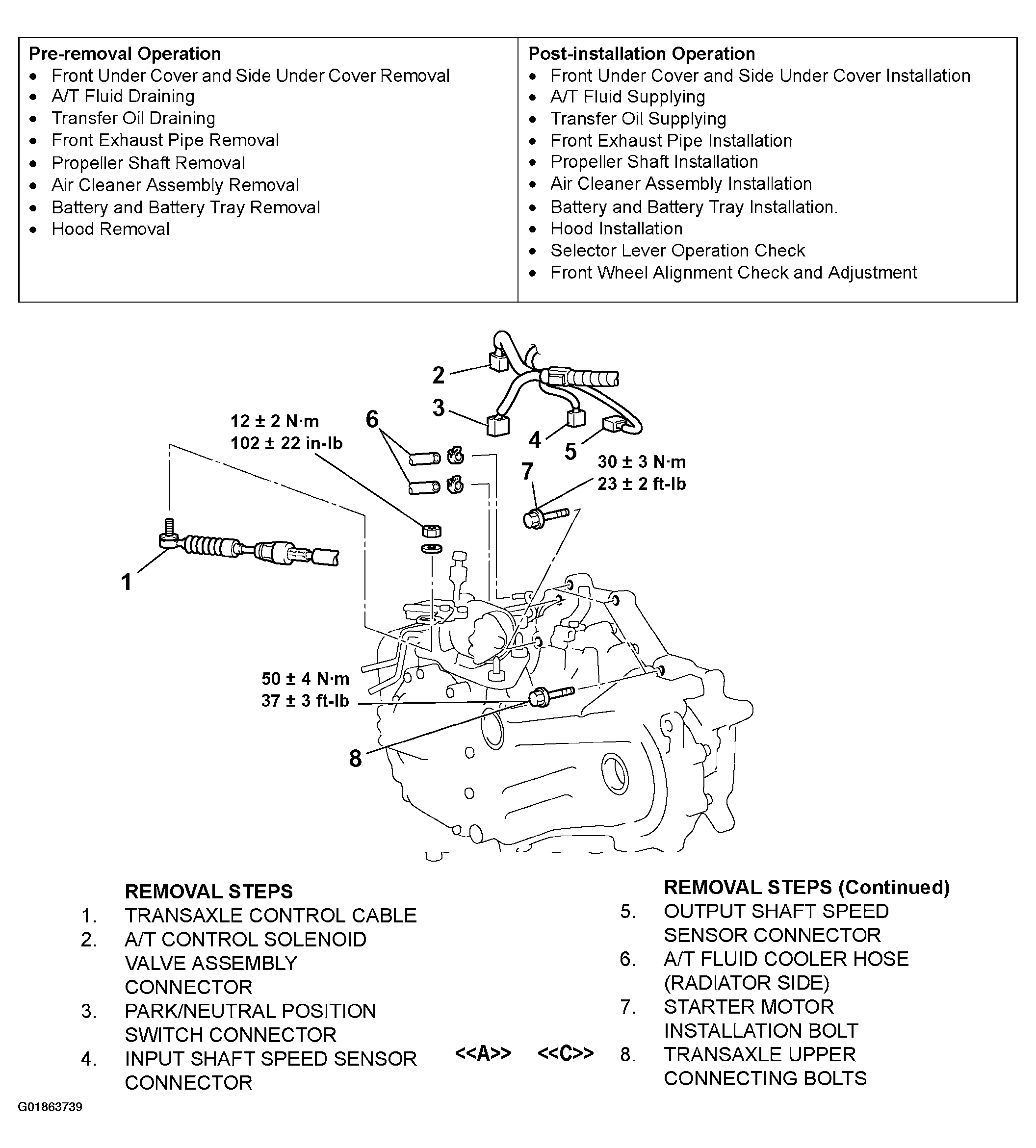

Fig 1: Removal And Installation Of Transaxle Assembly (1 Of 2)
G01863739Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

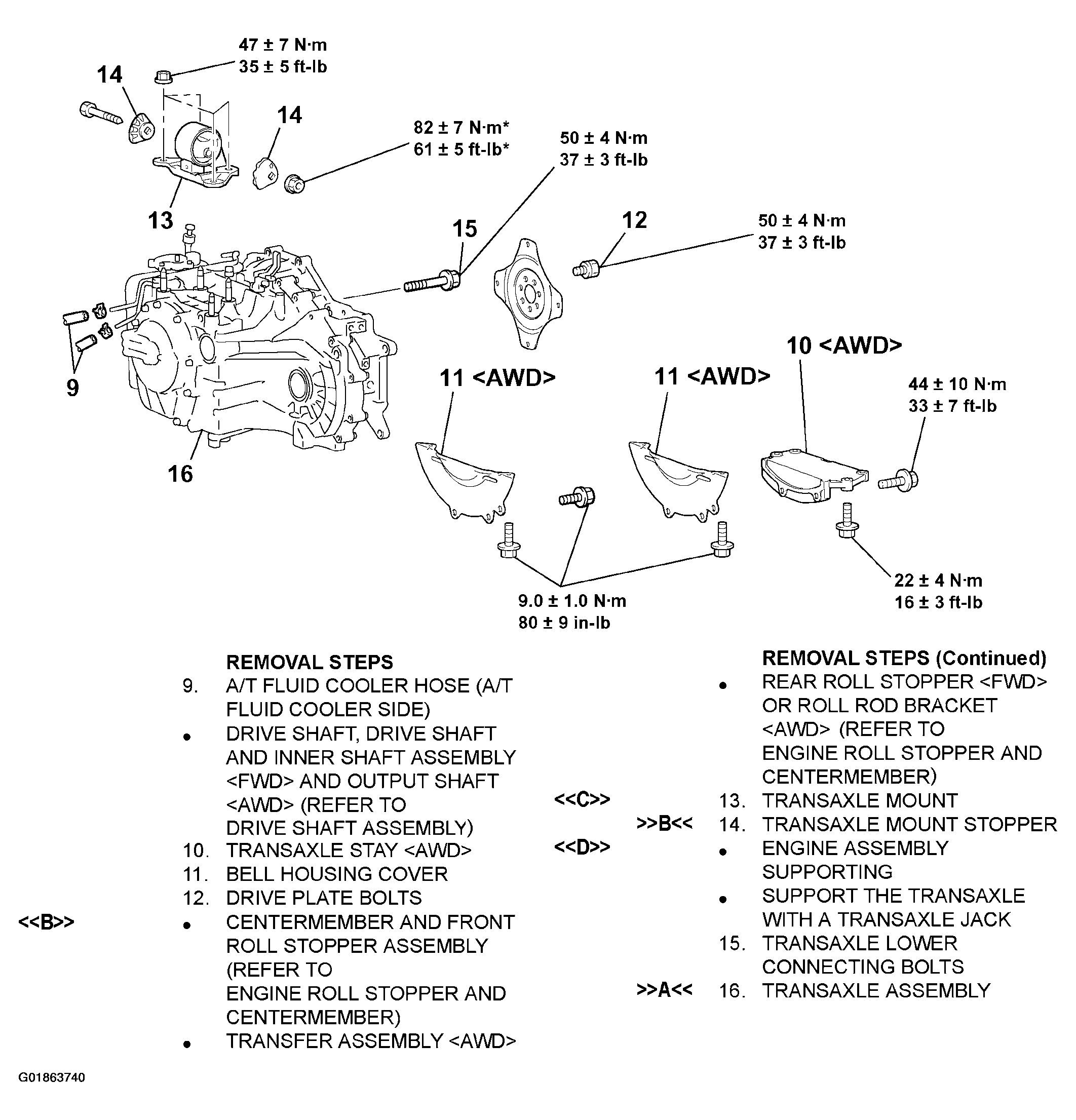

Fig 2: Removal And Installation Of Transaxle Assembly (2 Of 2)
G01863740Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools :
