Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

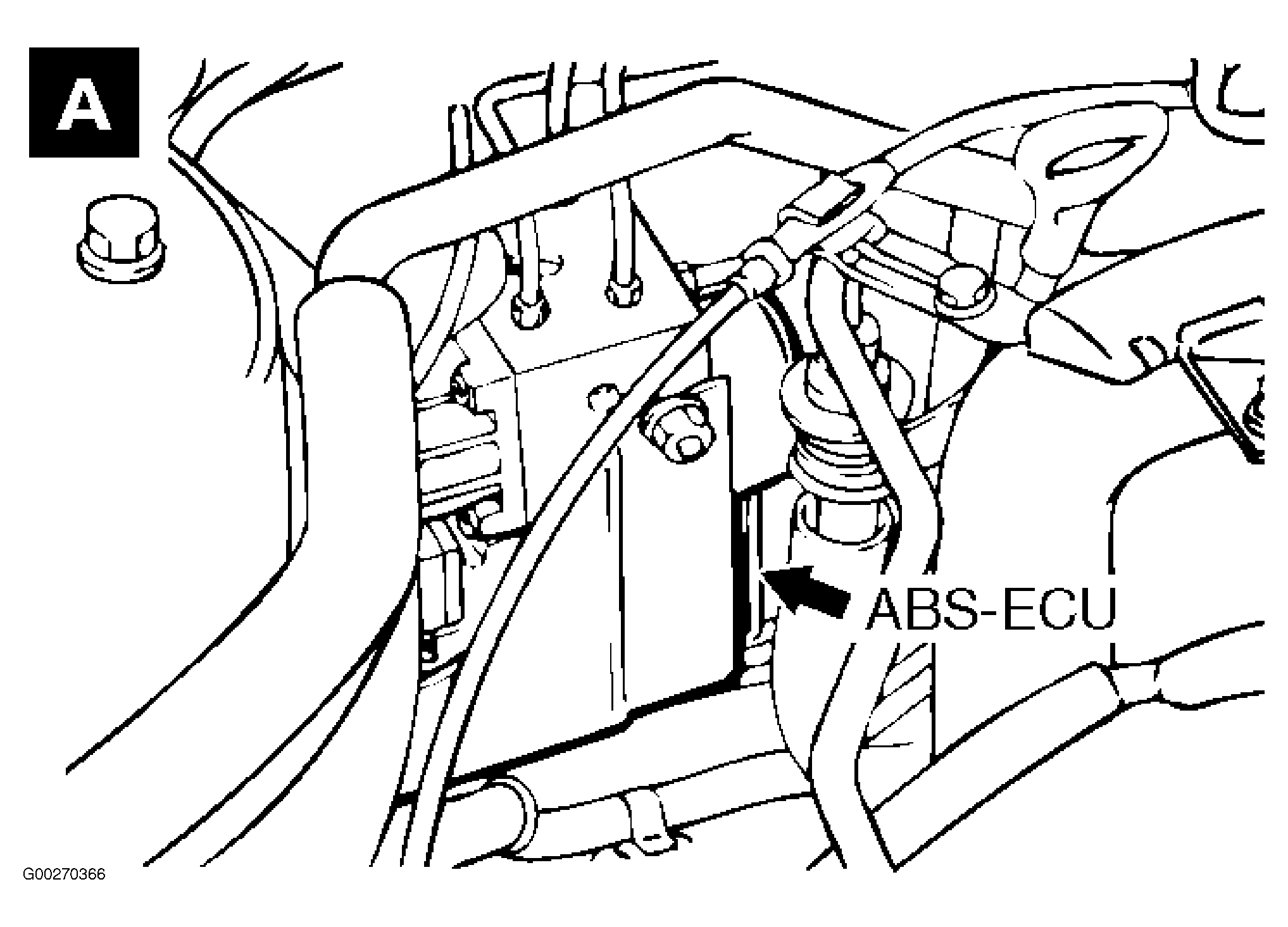

| ABS ECU | Right rear corner of engine compartment, on hydraulic unit. See Figure . |

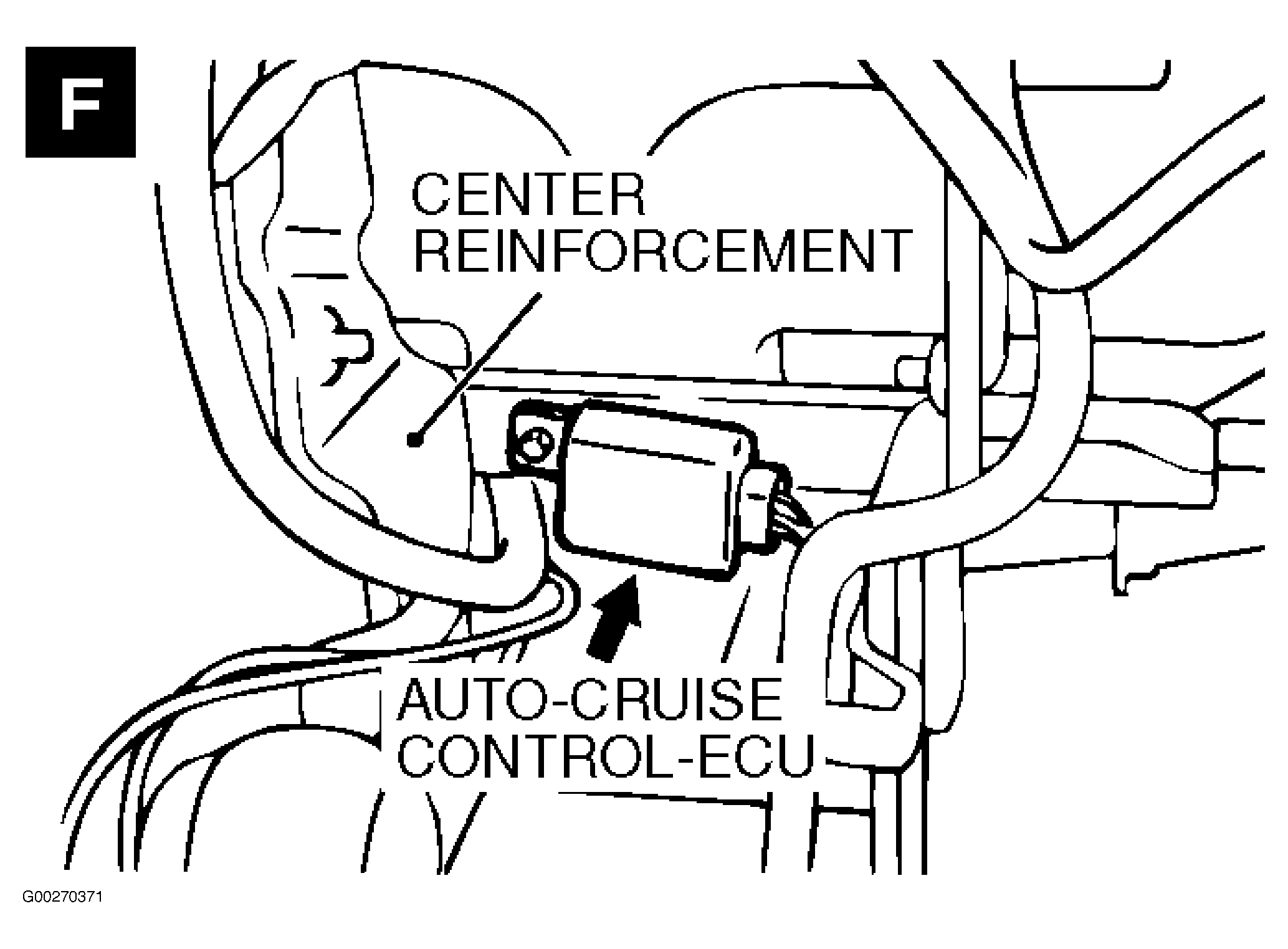

| Auto Cruise Control ECU | Behind center of dash. See Figure . |

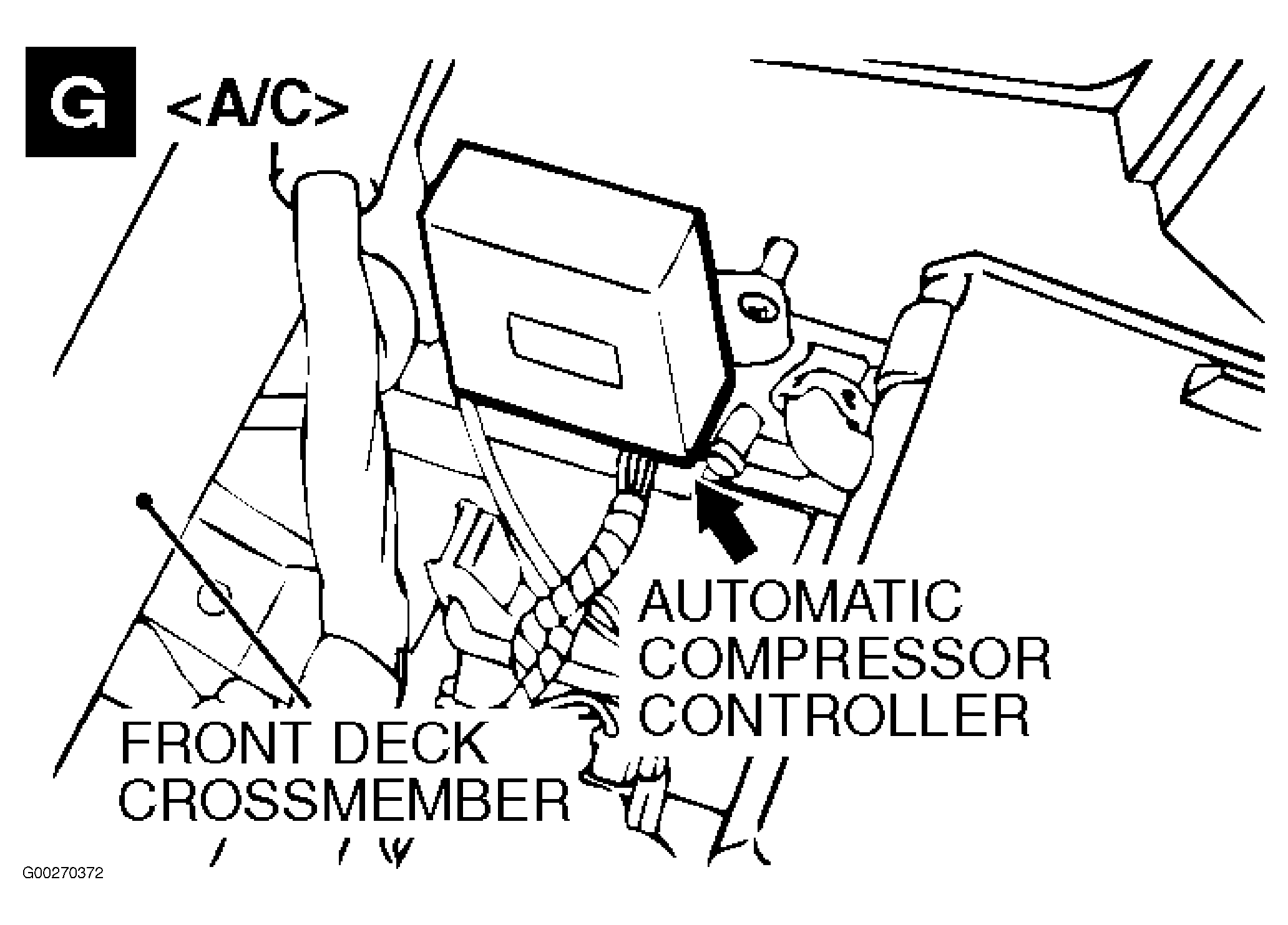

| Automatic Compressor Controller | Behind right side of dash. See Figure . |

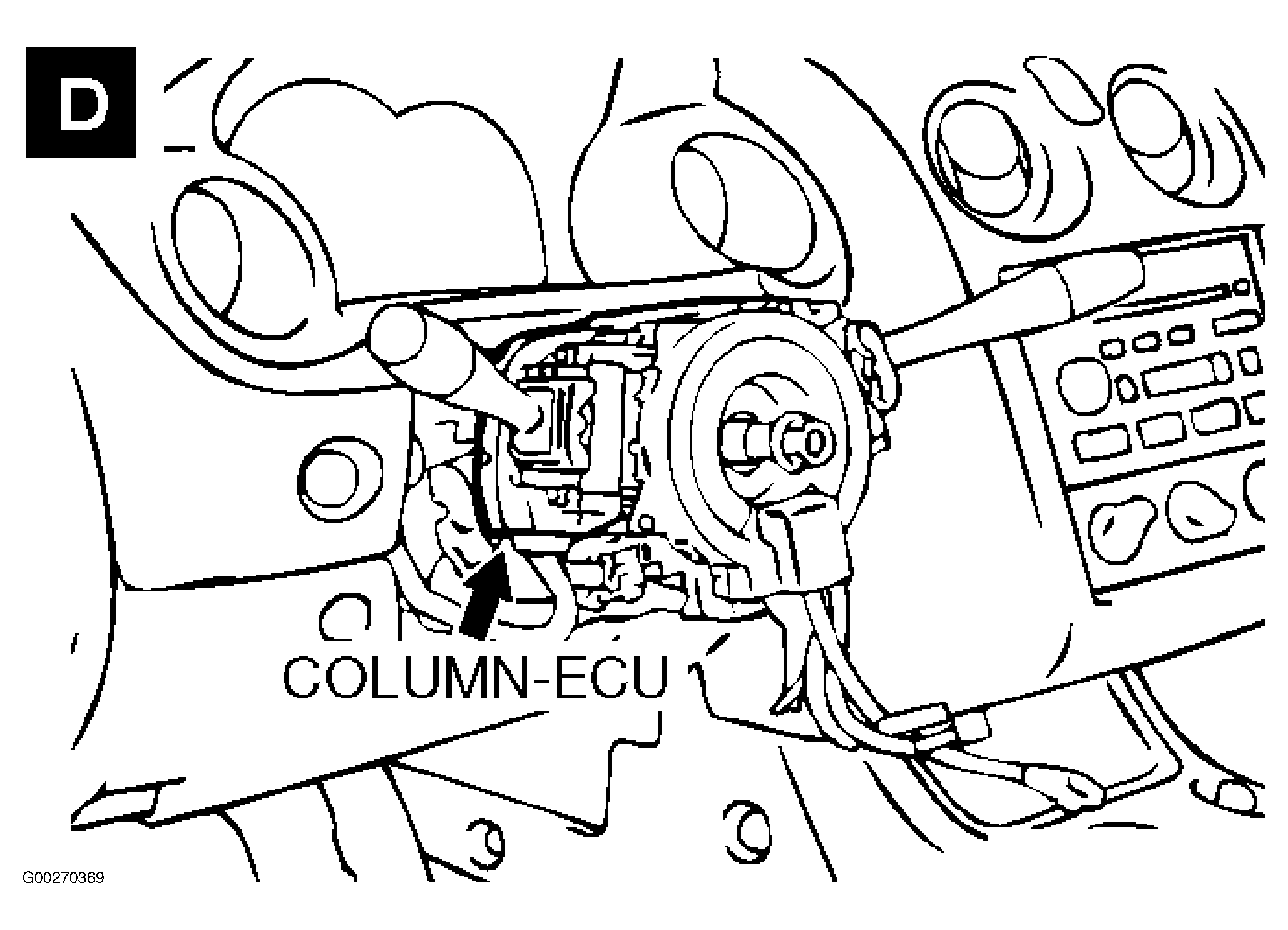

| Column ECU | On upper portion of steering column. See Figure . |

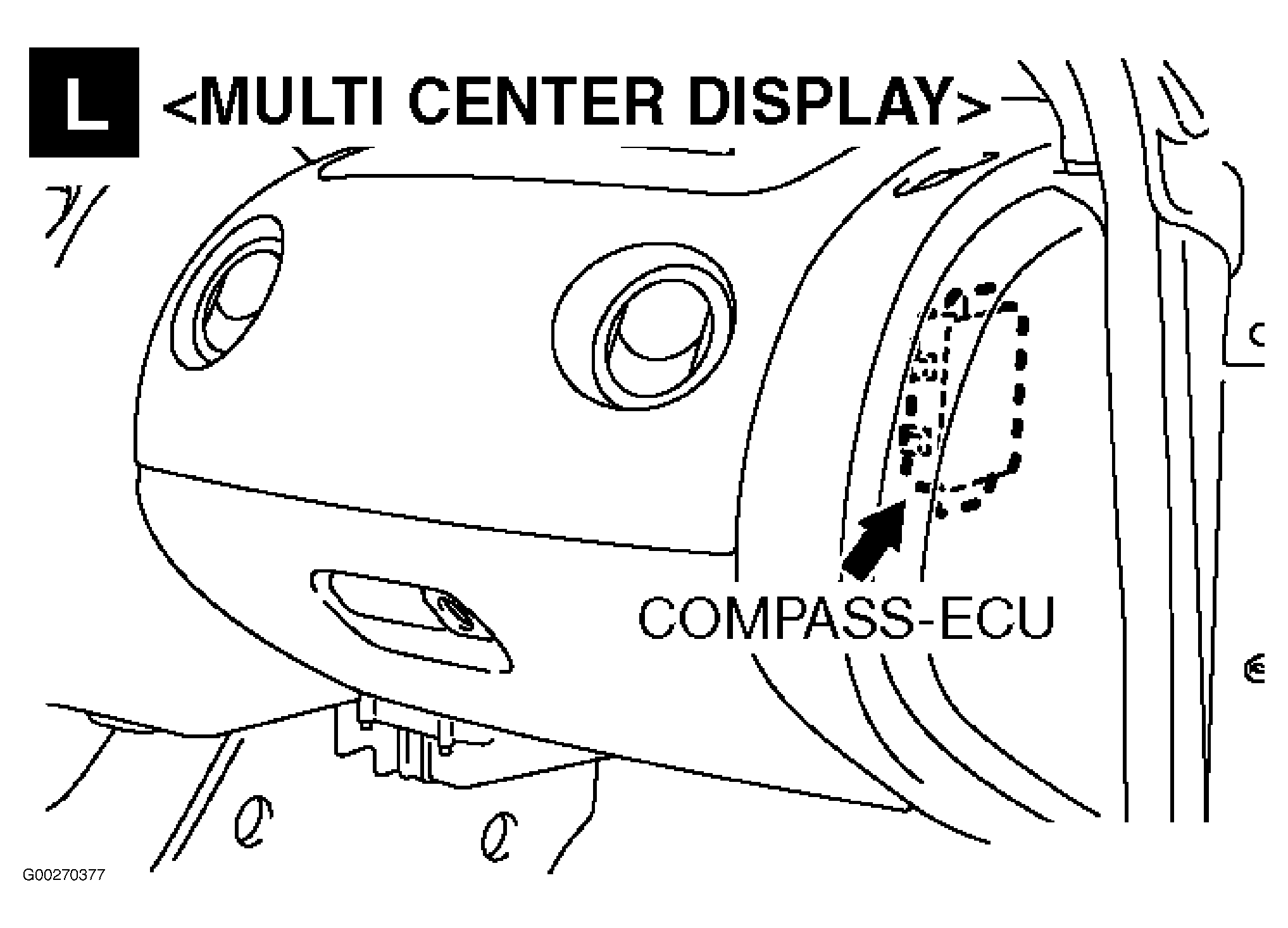

| Compass ECU | Behind right end of dash. See Figure . |

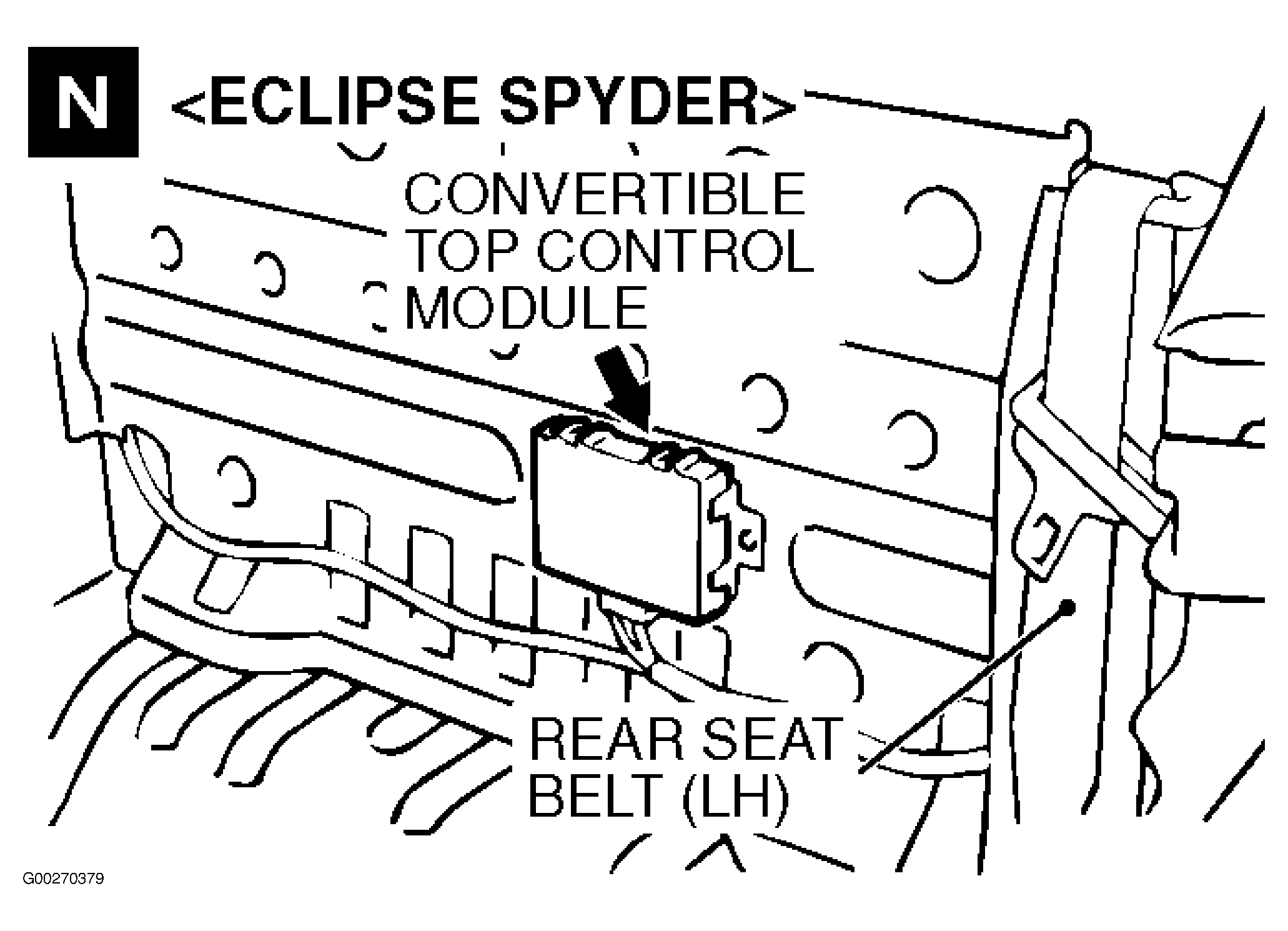

| Convertible Top Control Module | Behind left rear seat. See Figure . |

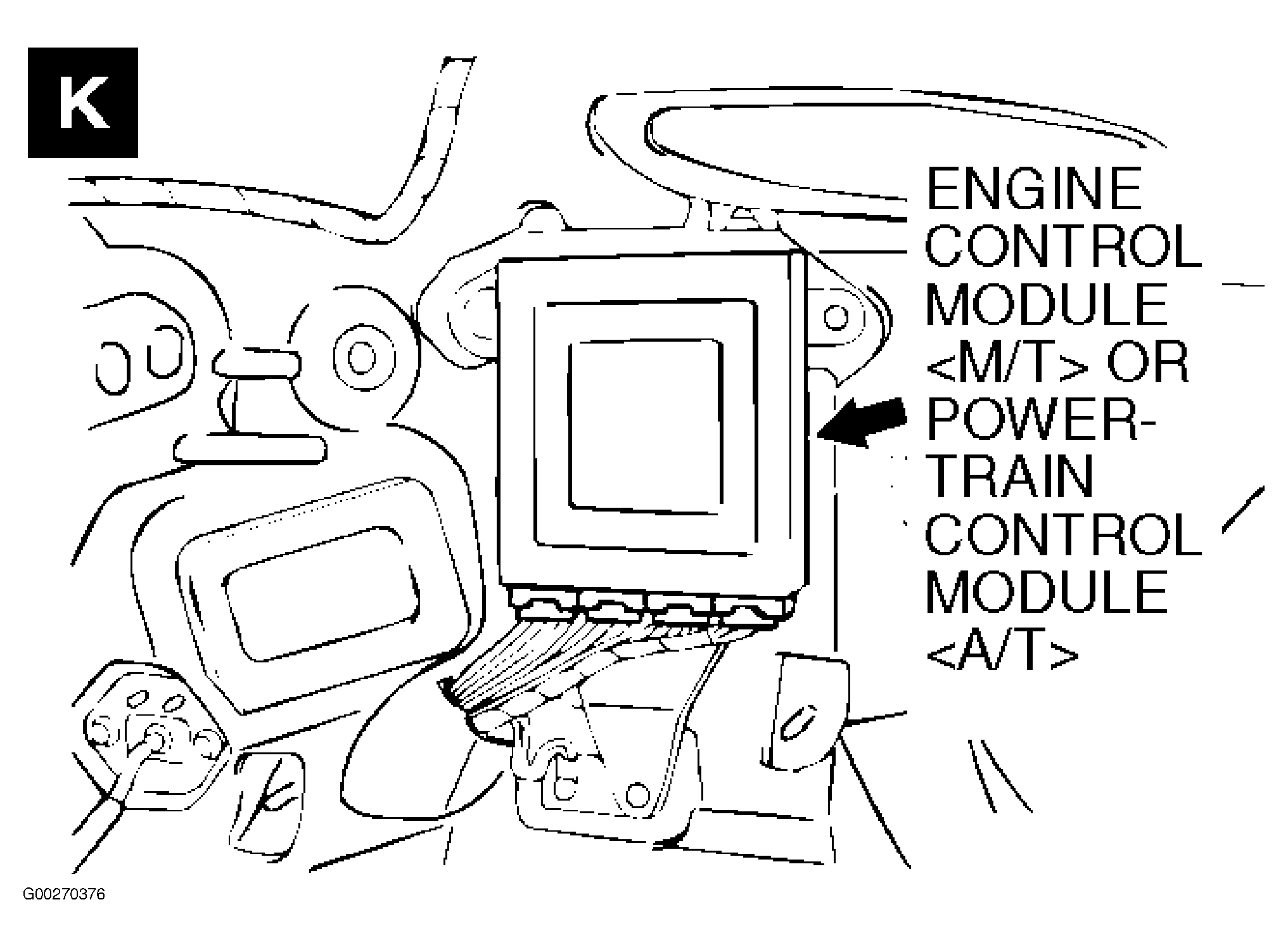

| Engine Control Module (M/T) | Behind right side of dash. See Figure . |

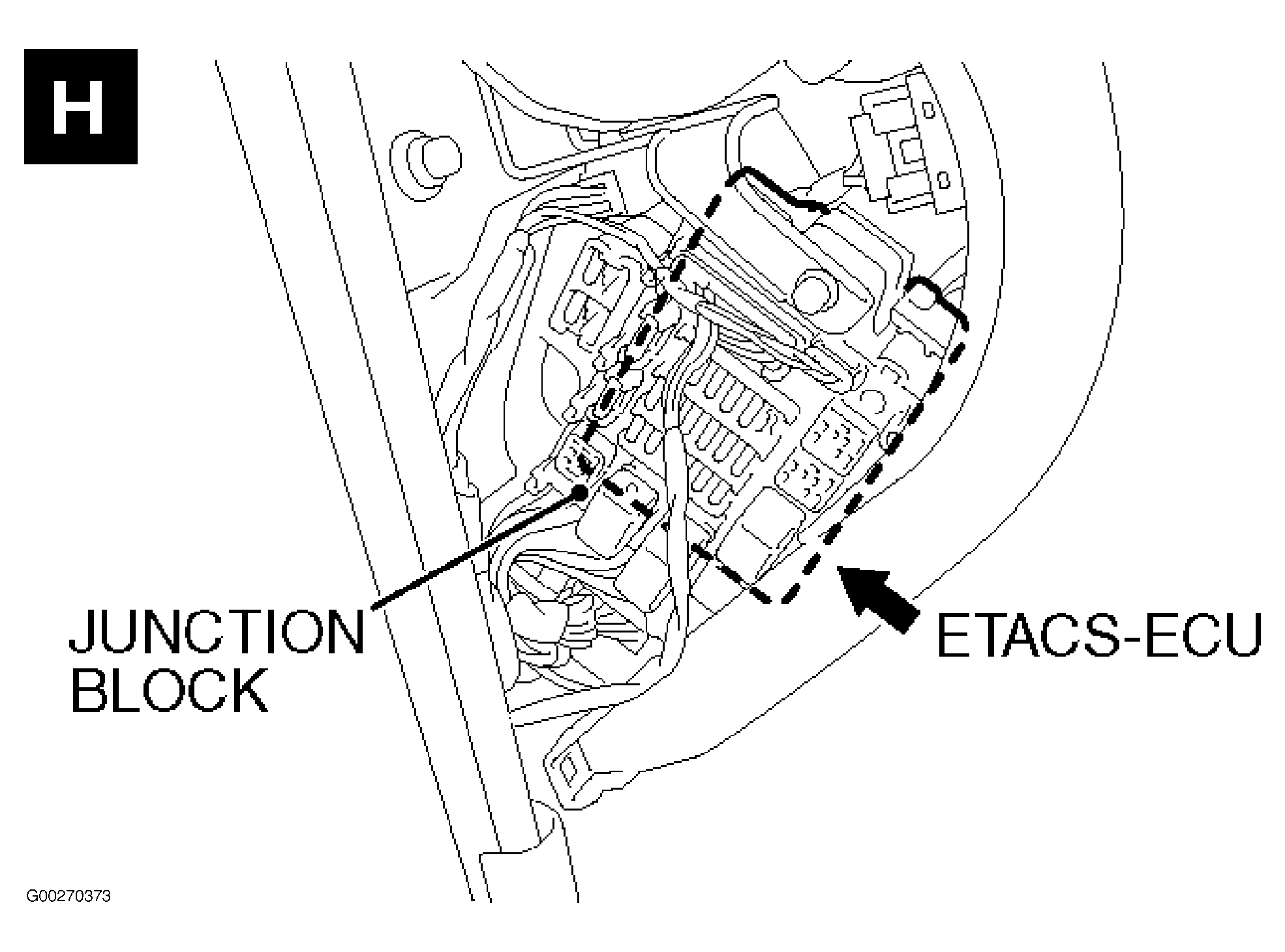

| ETACS ECU | Behind left side of dash, on junction block. See Figure . |

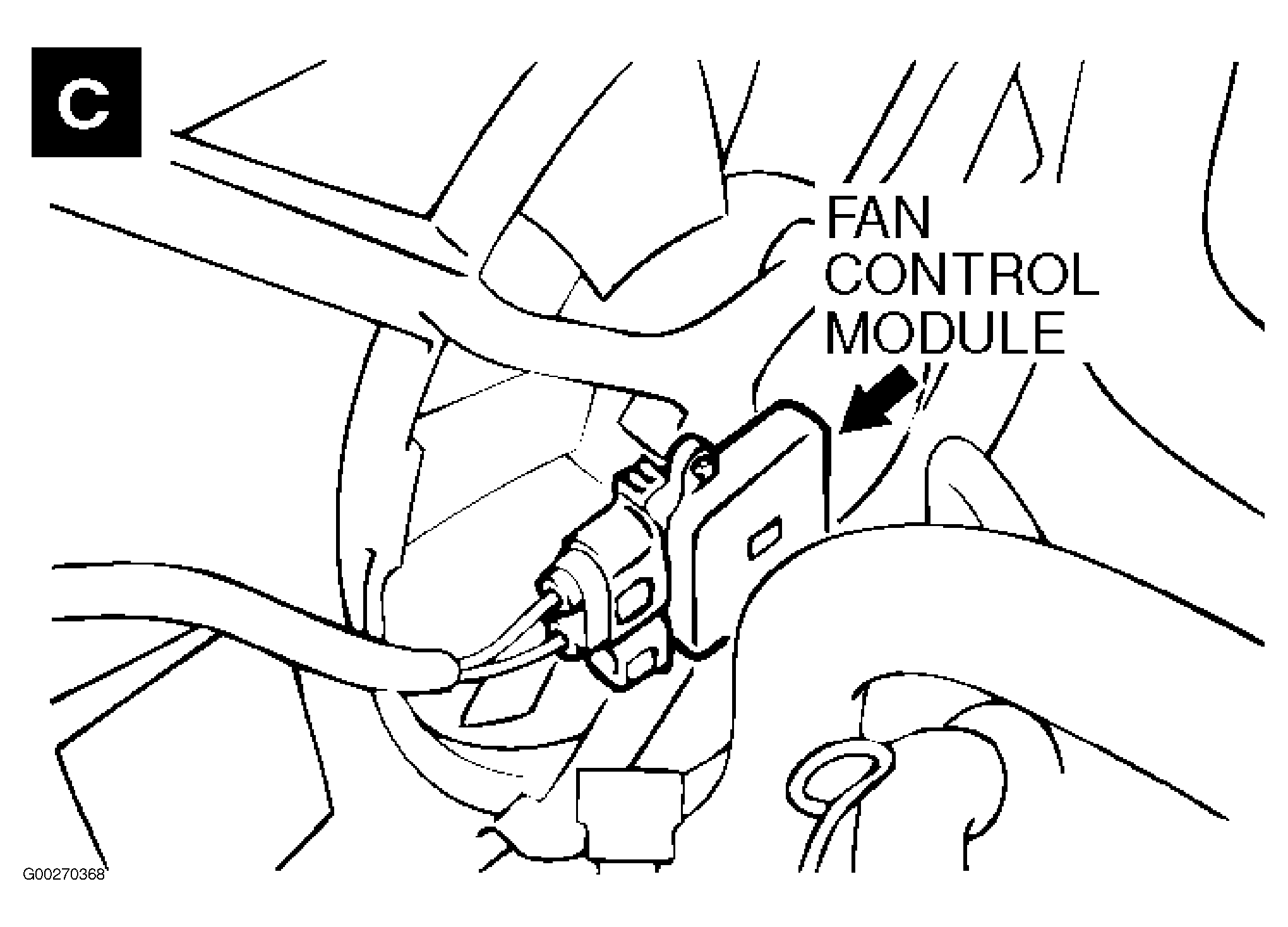

| Fan Control Module | Attached to cooling fan shroud. See Figure . |

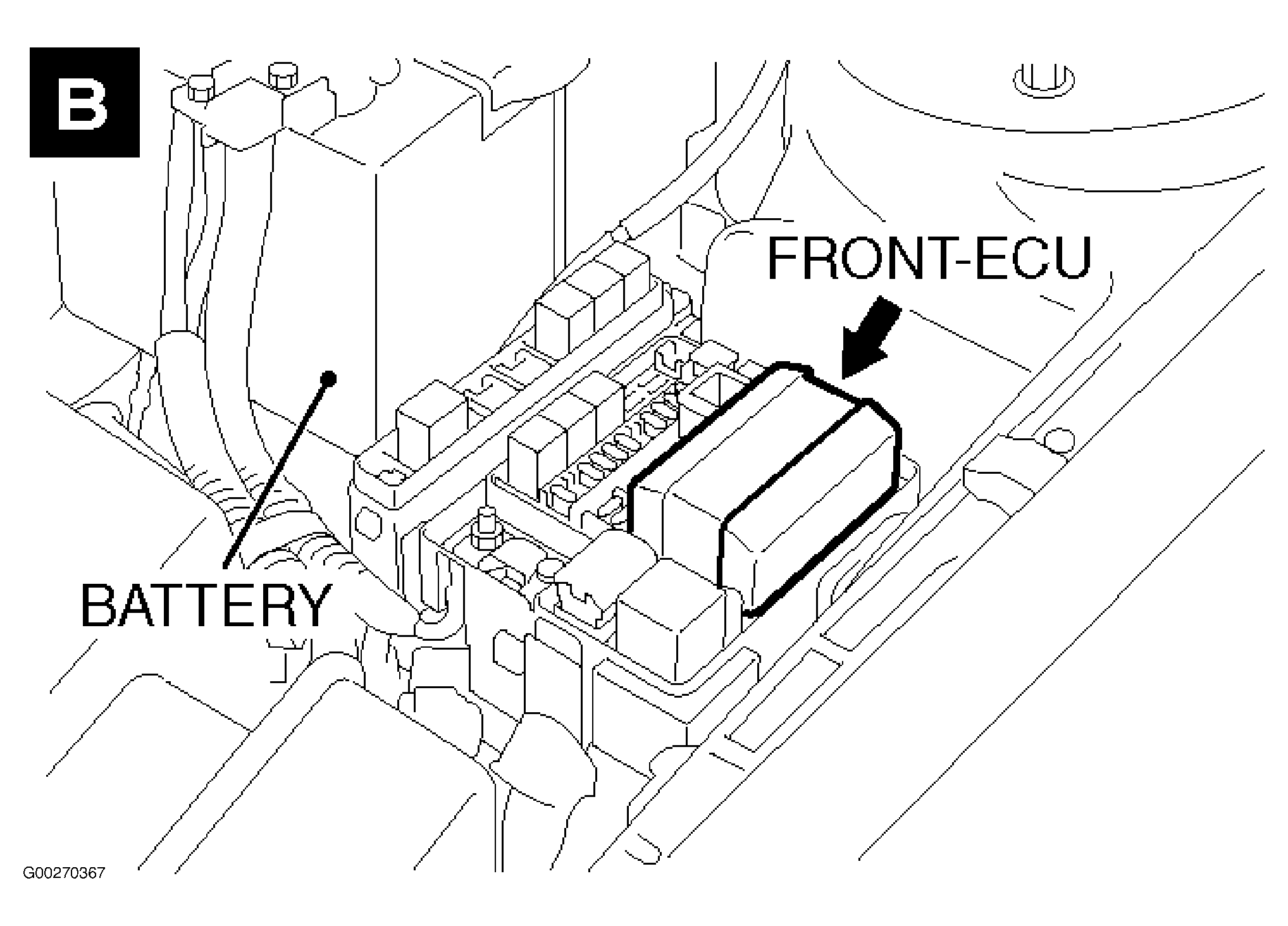

| Front ECU | In engine compartment relay box. See Figure . |

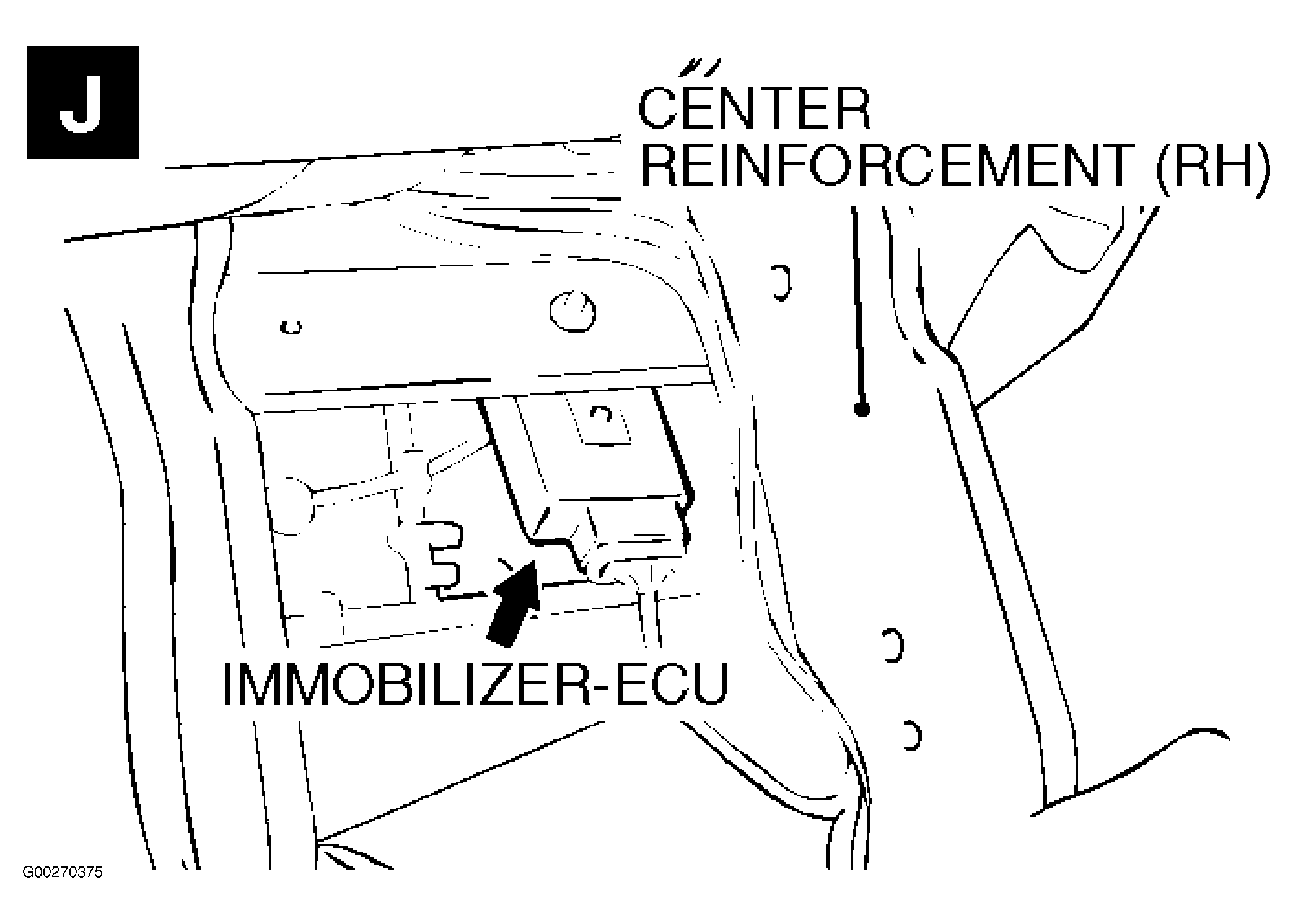

| Immobilizer ECU | Behind center of dash. See Figure . |

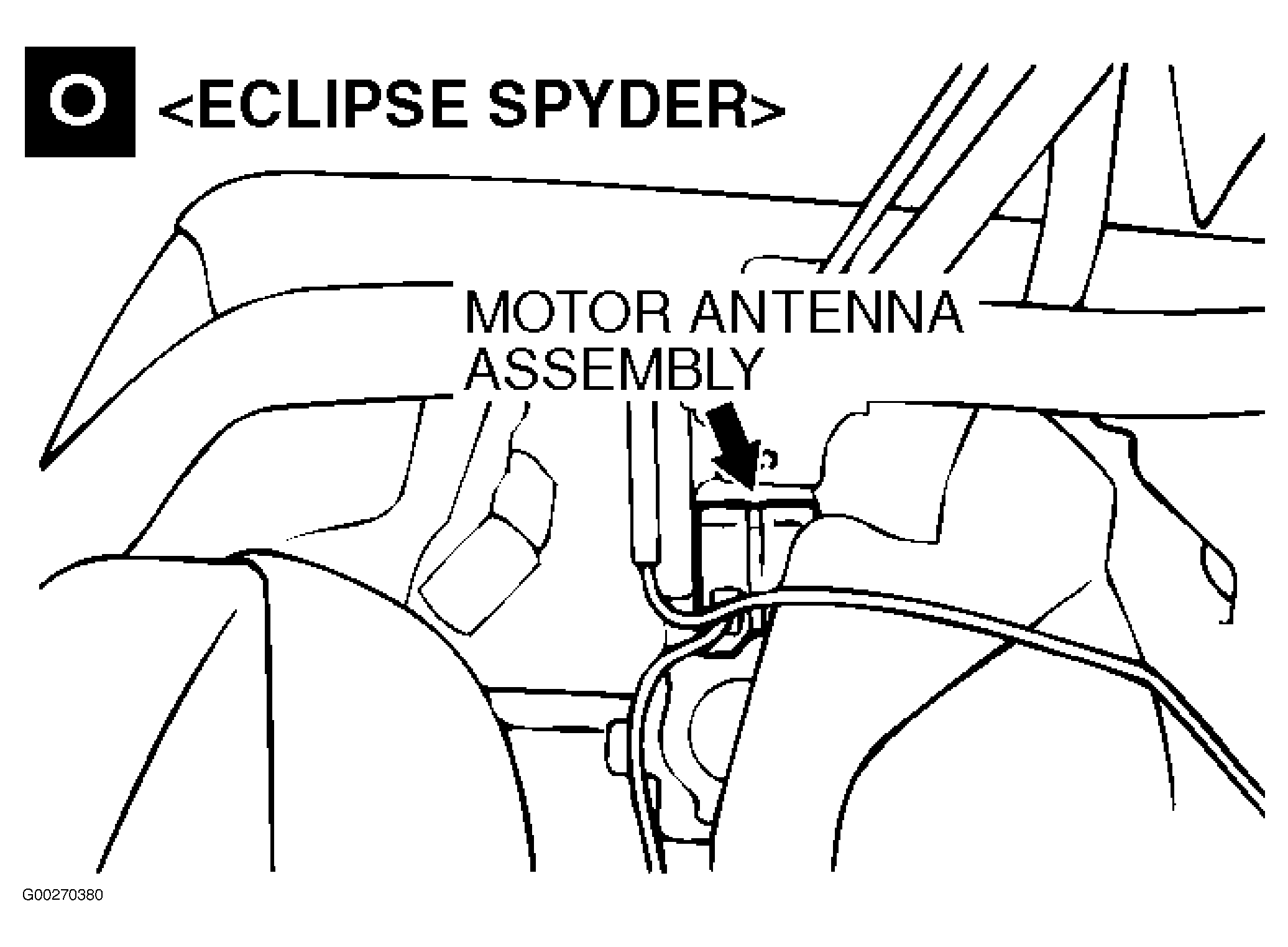

| Motor Antenna ECU | Integral to motor antenna assembly. See Figure . |

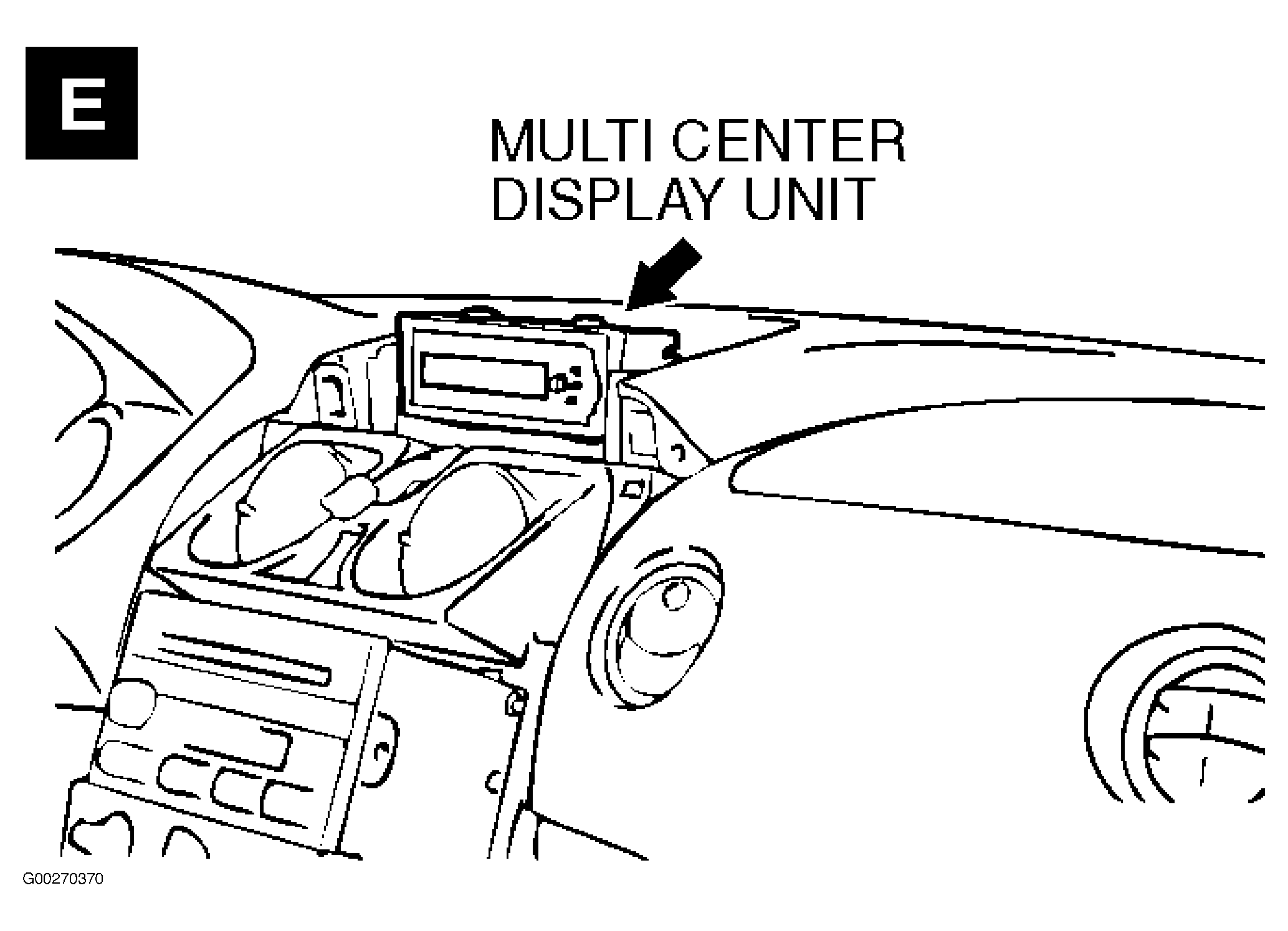

| Multi Center Display Unit | Top center of dash. See Figure . |
| Powertrain Control Module (A/T) | Behind right side of dash. See Figure . |

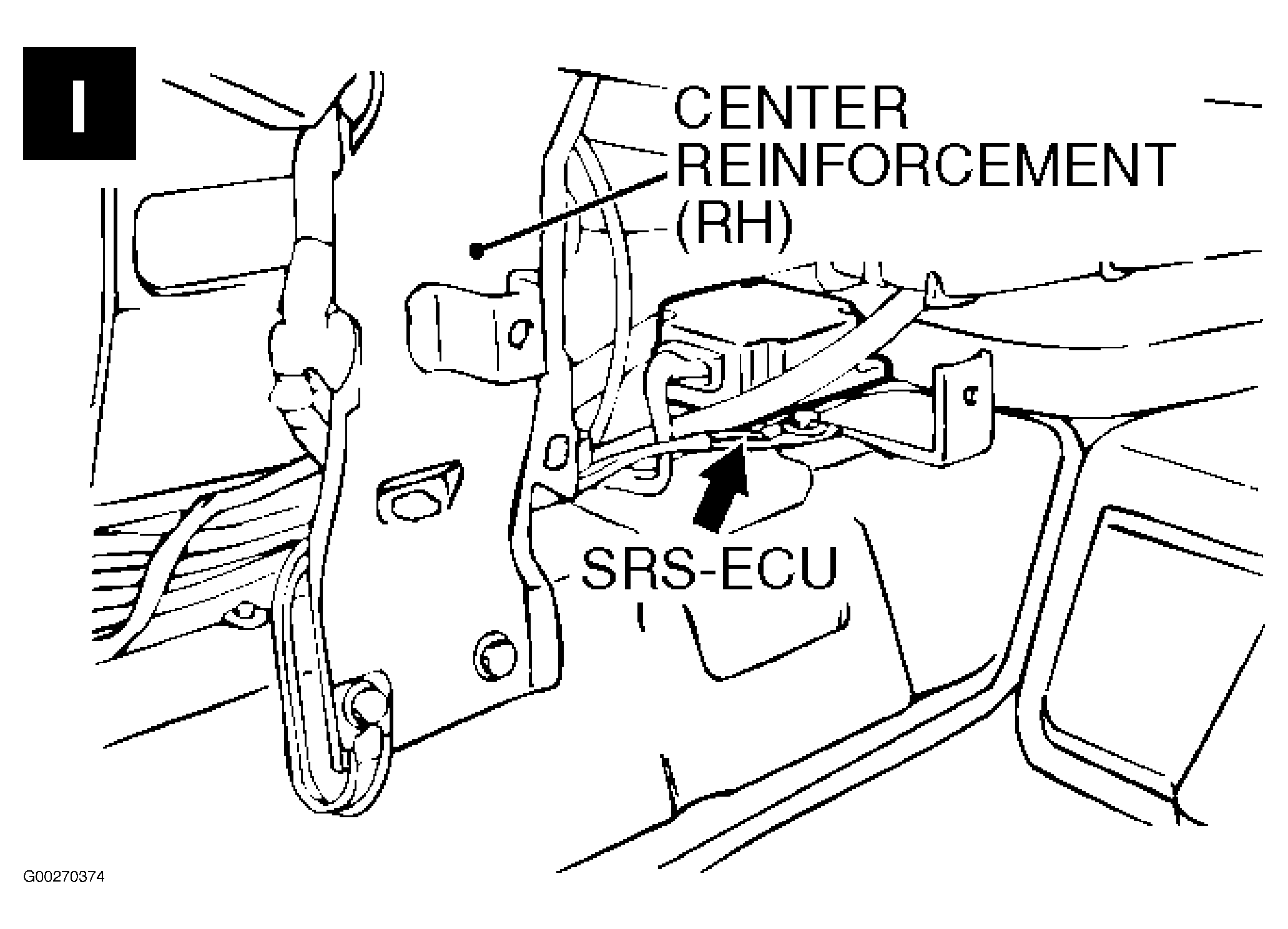

| SRS ECU | Behind lower center of dash, near center reinforcement. See Figure . |

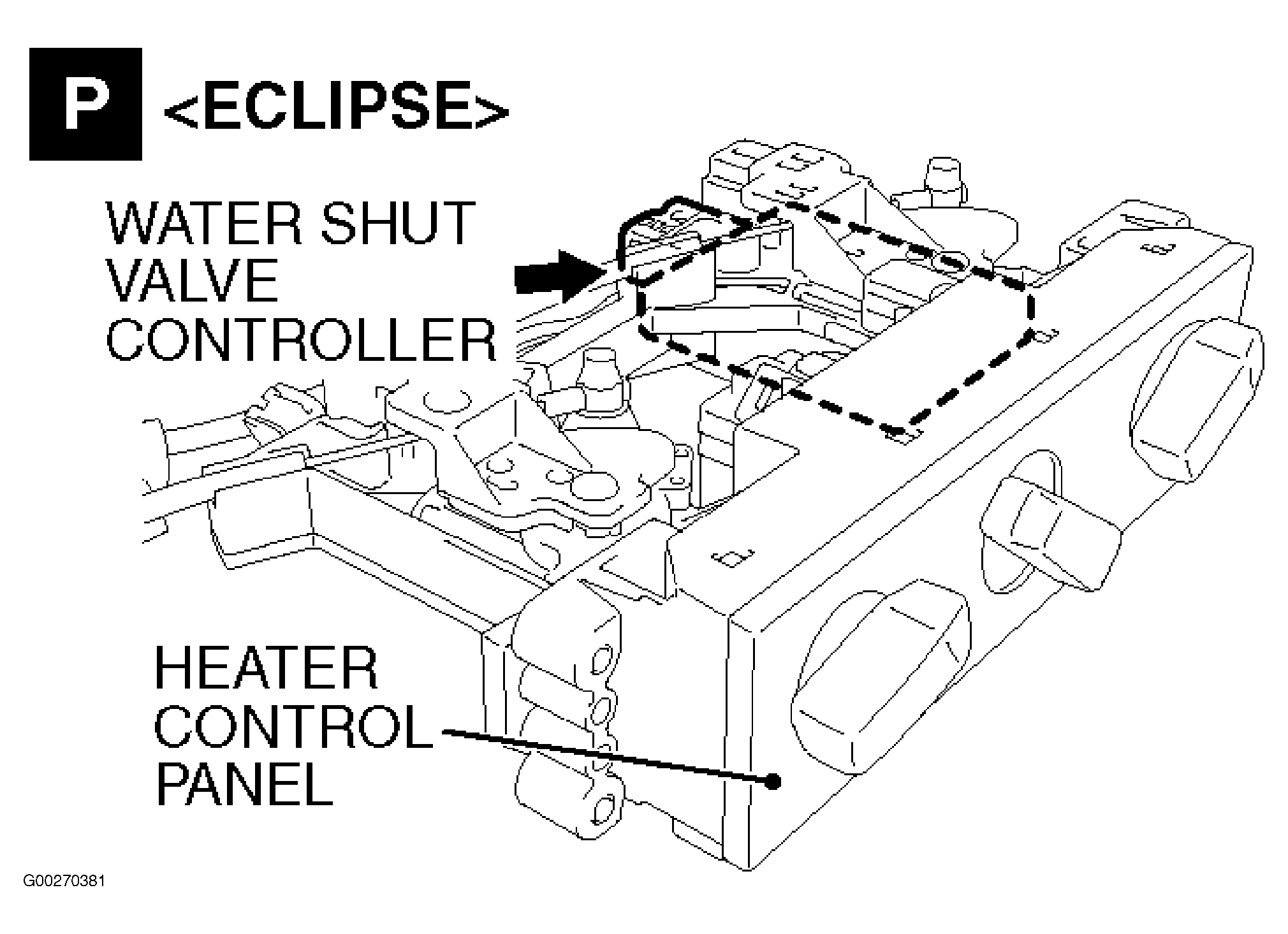

| Water Shut Valve Controller | Behind center of dash, on back of heater control panel. See Figure . |
