Home >> Mitsubishi >> 2004 >> Eclipse GS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Overhaul >> Second Brake >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

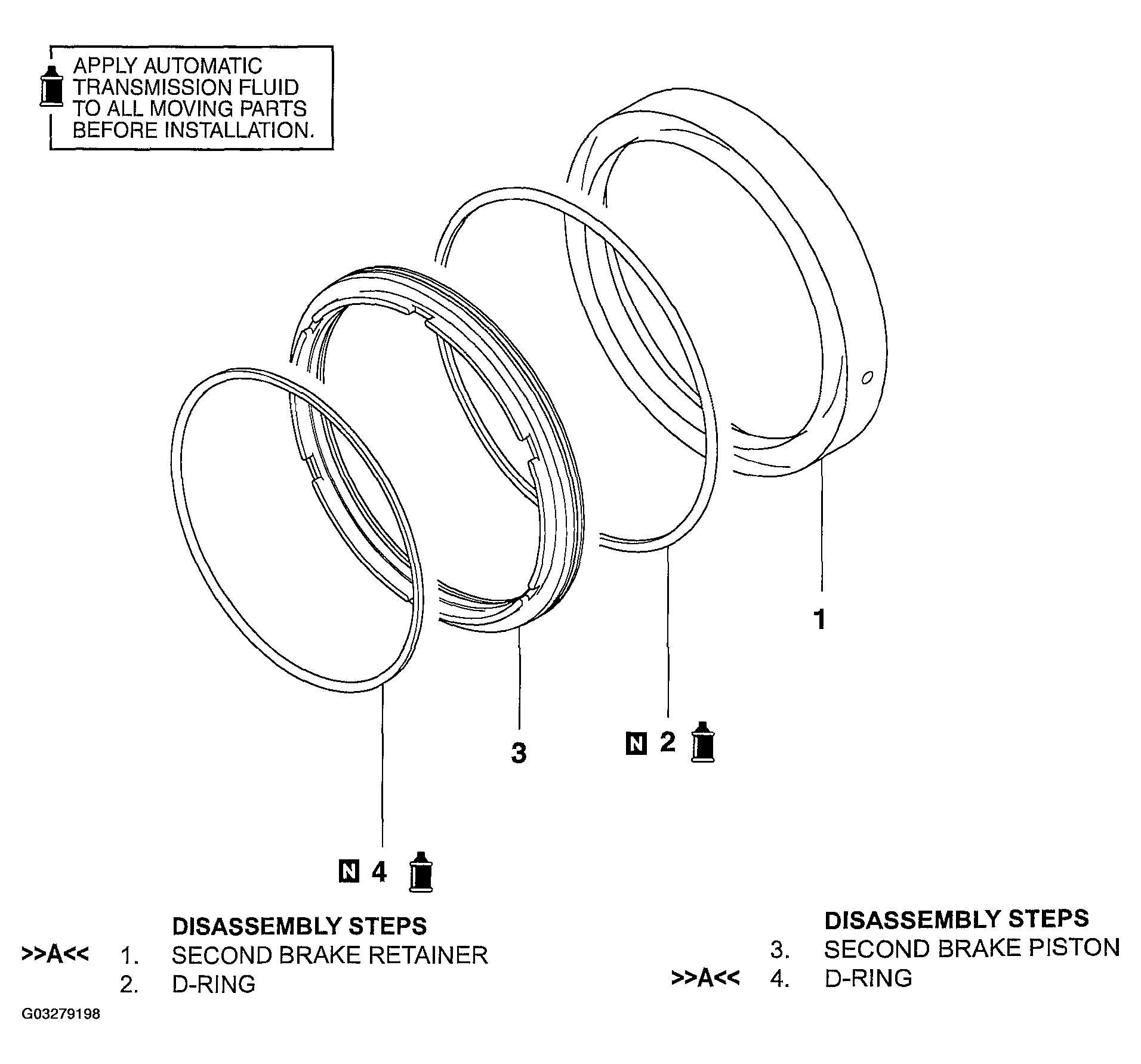

Fig 1: Disassembly And Assembly Of Second Brake
G03279198Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
