Home >> Mitsubishi >> 2004 >> Galant LS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System >> Engine Control >> Accelerator Cable And Pedal >> Removal And Installation

Removal And Installation

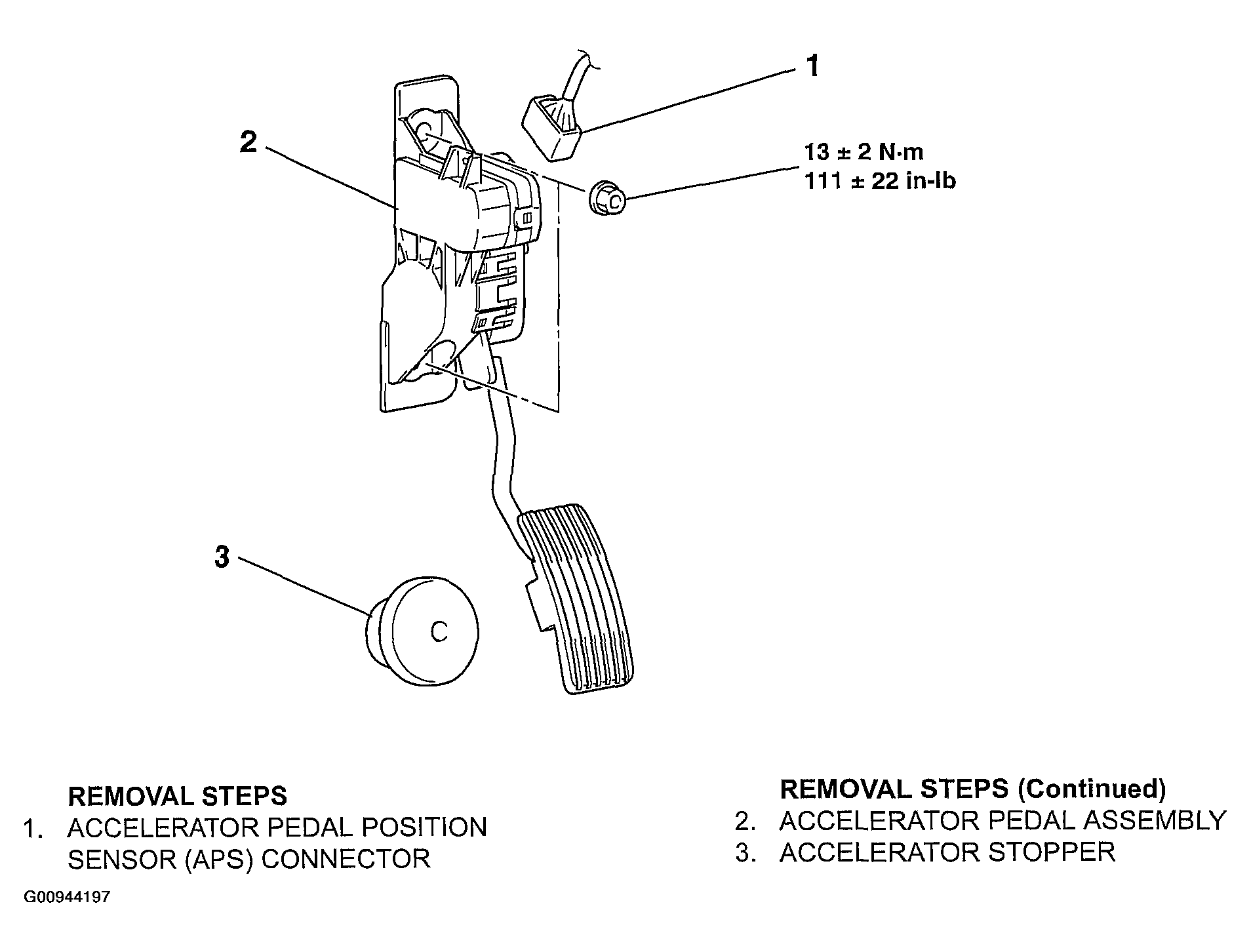

Fig 1: Exploded View Of Accelerator Cable And Pedal
G00944197Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
