Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS ECU | On right rear of engine compartment. See Figure . |
| A/C ECU | Behind center of dash, below radio. See Figure . |
| Air Bag Module (Squib) (Driver's Side) (C-106) | At right side of dash. See Figure . |
| Air Bag Module (Squib) (Driver's Side) (C-201) | In steering wheel. See Figure . |
| Auto Cruise Control ECU (2.0L) | Behind right end of dash. See Figure . |
| Column Switch ECU | On top of steering column. See Figure . |
| DRL ECU (Canada) | At left front corner of engine compartment. |
| Engine Control Module (M/T) | Behind glove box. See Figure . |
| Engine Control Module (2.4L-A/T) | Under right side of dash. See Figure . |
| Engine Control Module (2.4L-A/T) | Under right side of dash. See Figure . |
| Engine Coolant Temperature Gauge Unit (B-112) | Left rear of engine. See Figure . |
| ETACS ECU | On rear of junction block, behind left end of dash. See Figure . |
| Fan Control Module | On fan shroud, at left front of engine compartment. See Figure . |
| Front-ECU | In engine compartment relay box. See Figure . |

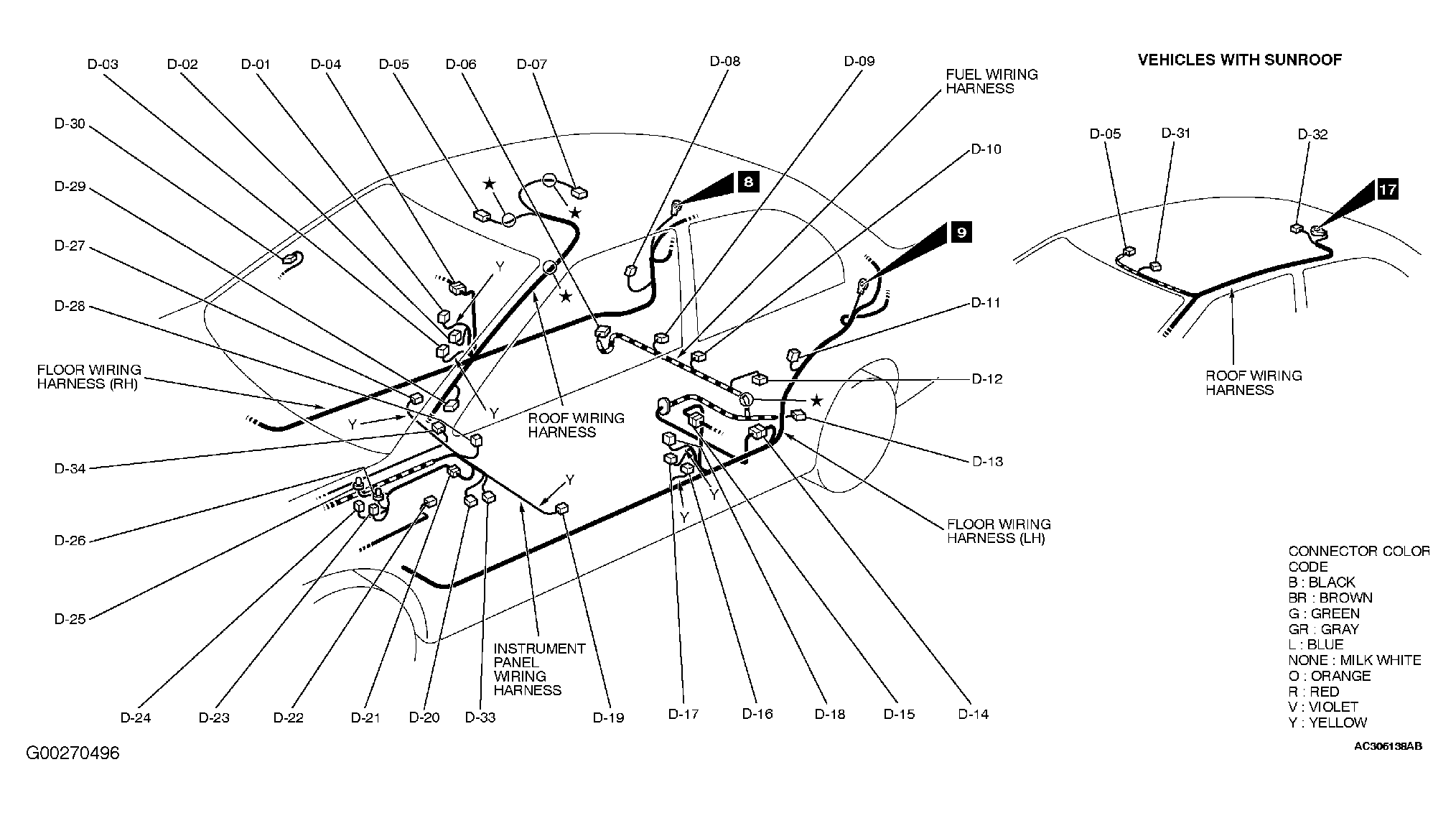

| Fuel Pump Module (D-12) | At fuel tank. See Figure . |
| Headlight Assembly (Incorporating Discharge Controller) | Above front bumper. |
| Headlight-ECU (Left/Right) | Integral to respective headlight assembly. |

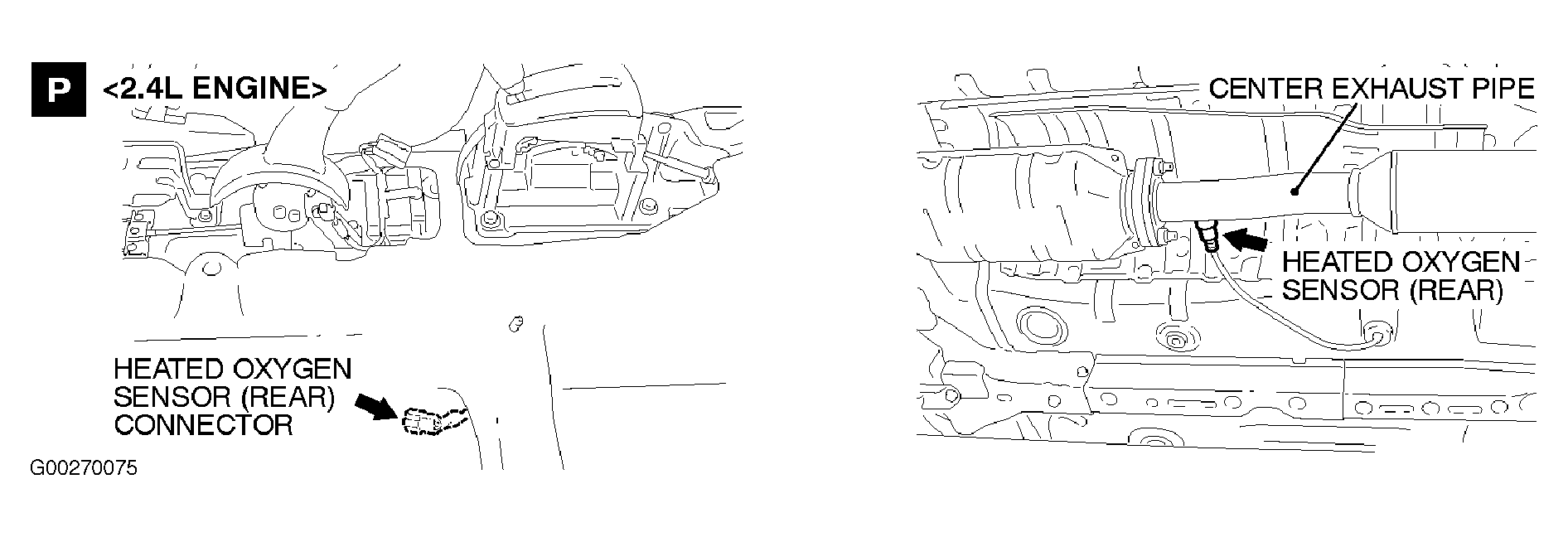

| Heated Oxygen Sensor (Rear) (2.4L) | In exhaust, after catalytic converter. See Figure . |
| Powertrain Control Module (A/T) (2.0L) | Behind glove box. See Figure . |
| SRS ECU | Behind lower center of dash. See Figure . |
| Sun Roof-ECU | Integral to sun roof motor assembly. |
