Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

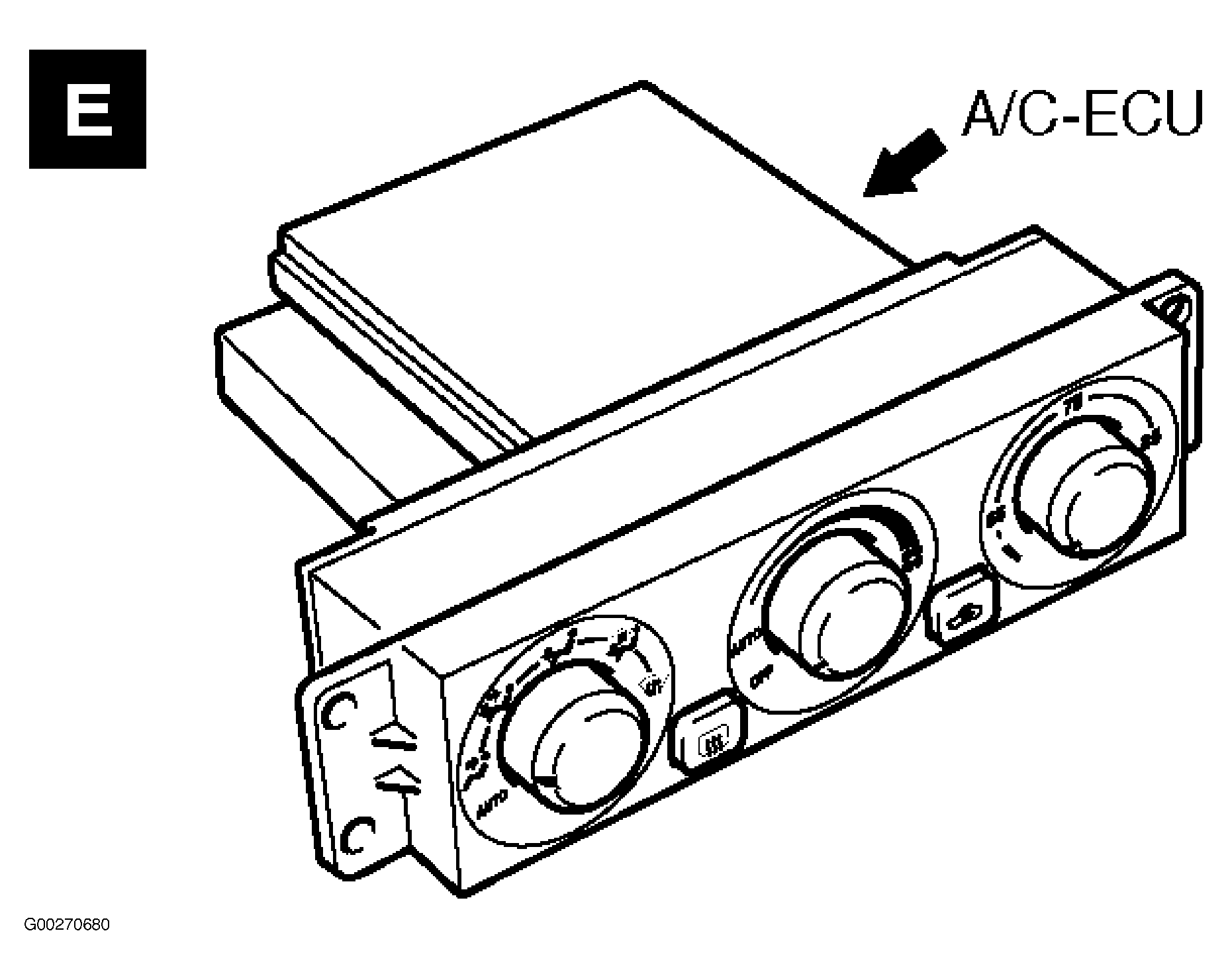

| A/C ECU | Behind center of dash. See Figure . |

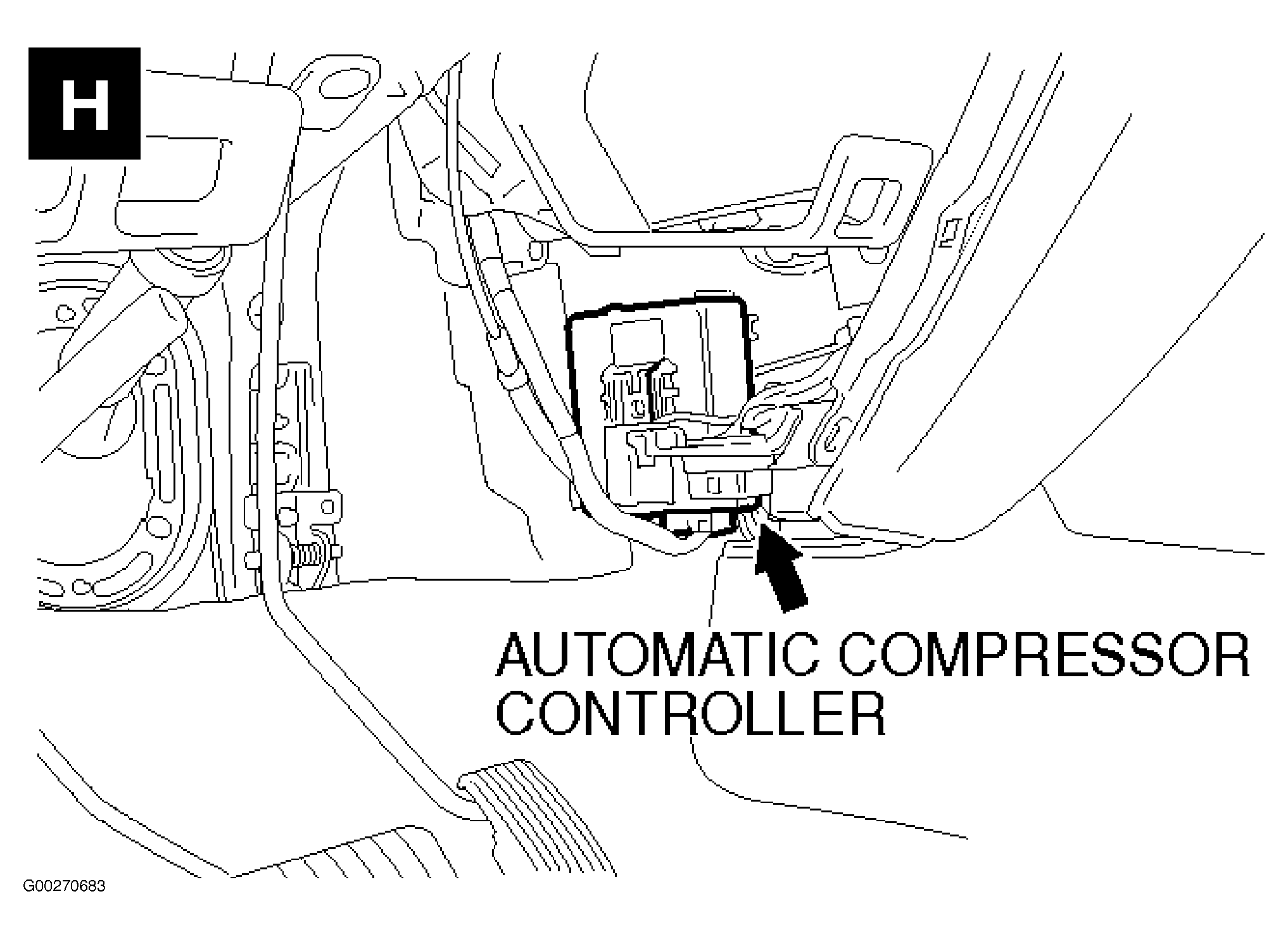

| Automatic Compressor Controller | Behind lower left side of dash, right of steering column. See Figure . |

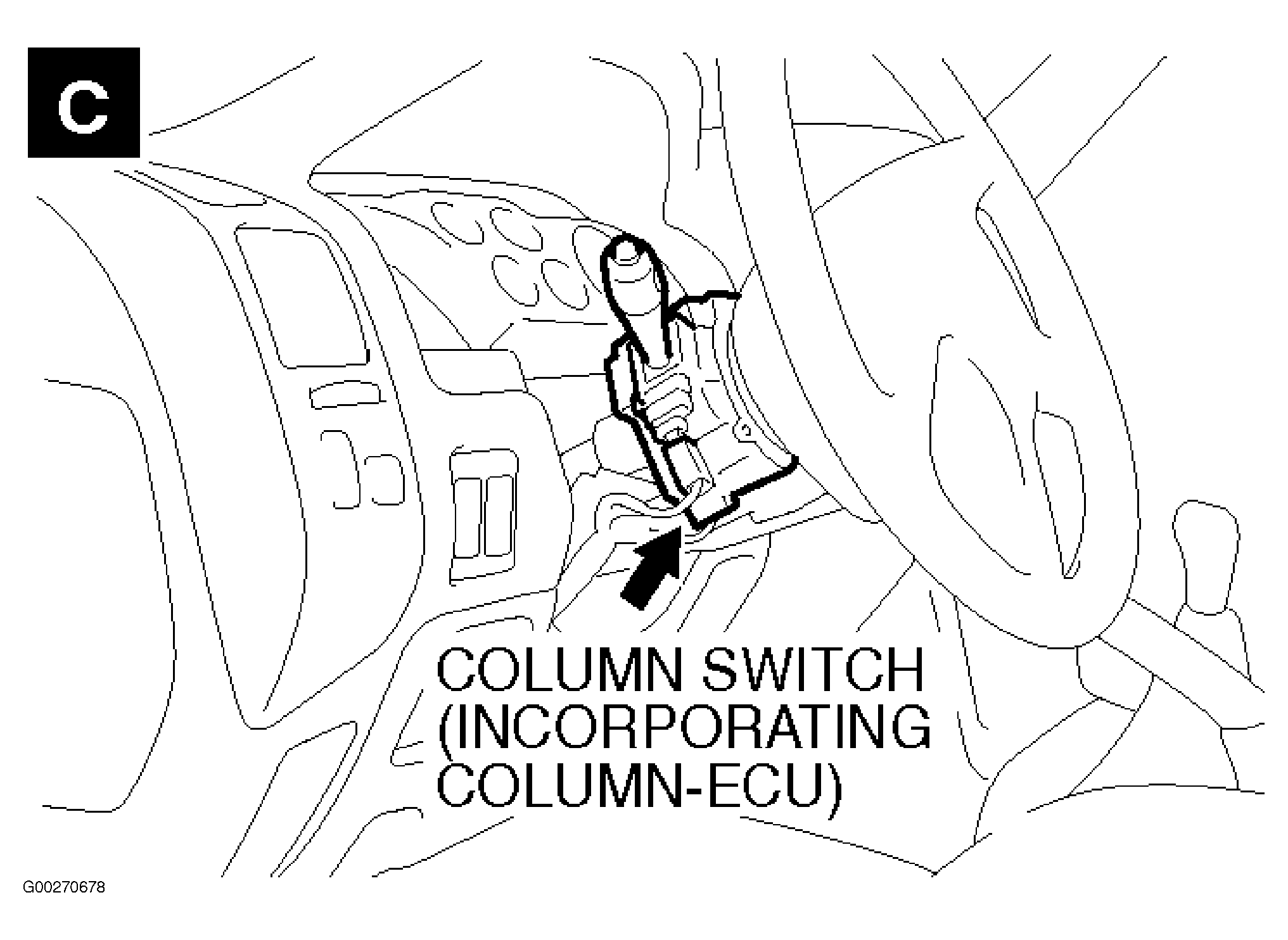

| Column ECU | Integral component of column switch. See Figure . |
| DRL ECU | At front of engine compartment, behind right headlight. |

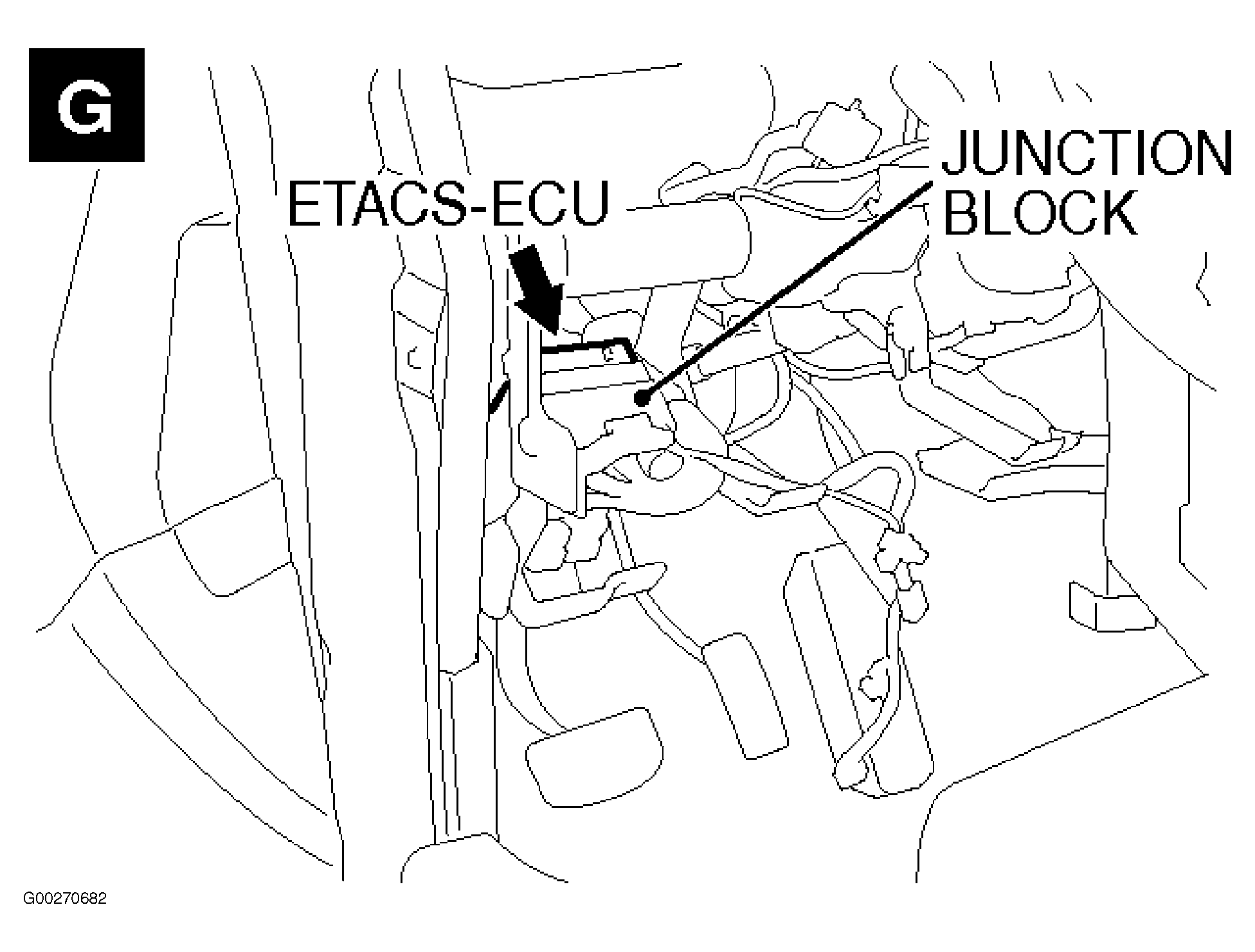

| ETACS ECU | Behind lower left side of dash, on junction block. See Figure . |

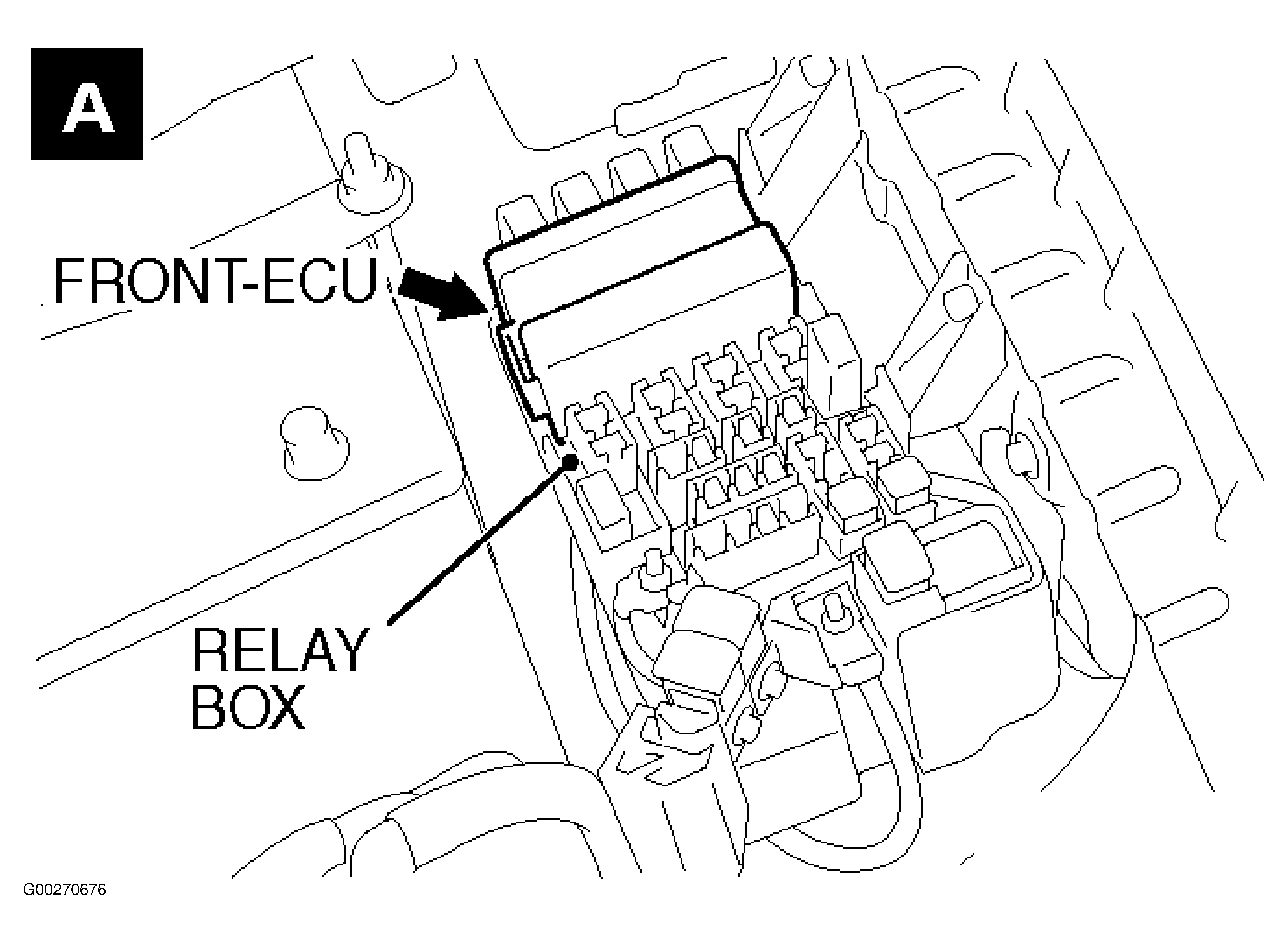

| Front ECU | In engine compartment relay box. See Figure . |

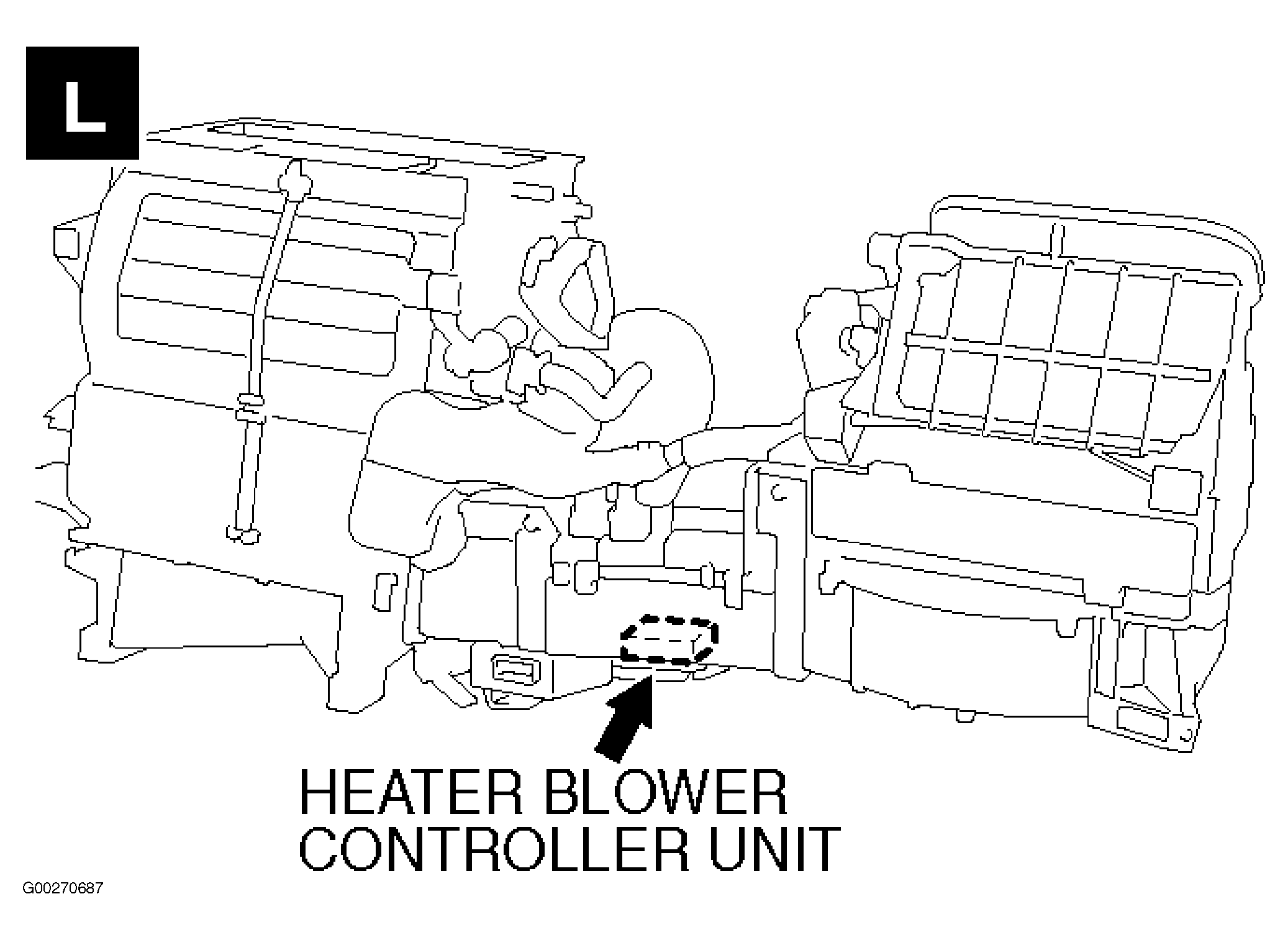

| Heater Blower Controller Unit (W/Rear Cooler A/C) | On HVAC assembly. See Figure . |

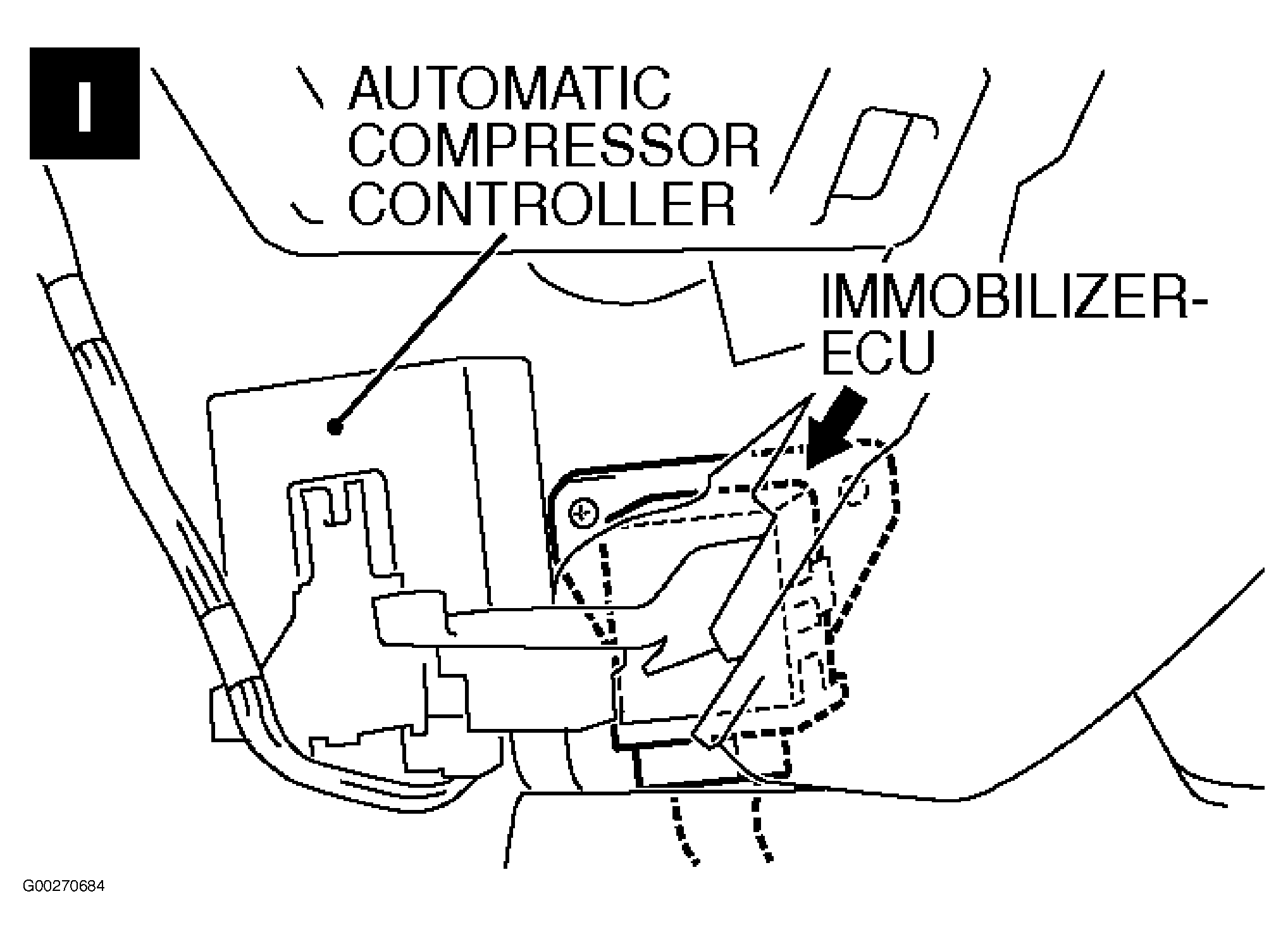

| Immobilizer ECU | Behind lower left side of dash, right of steering column. See Figure . |

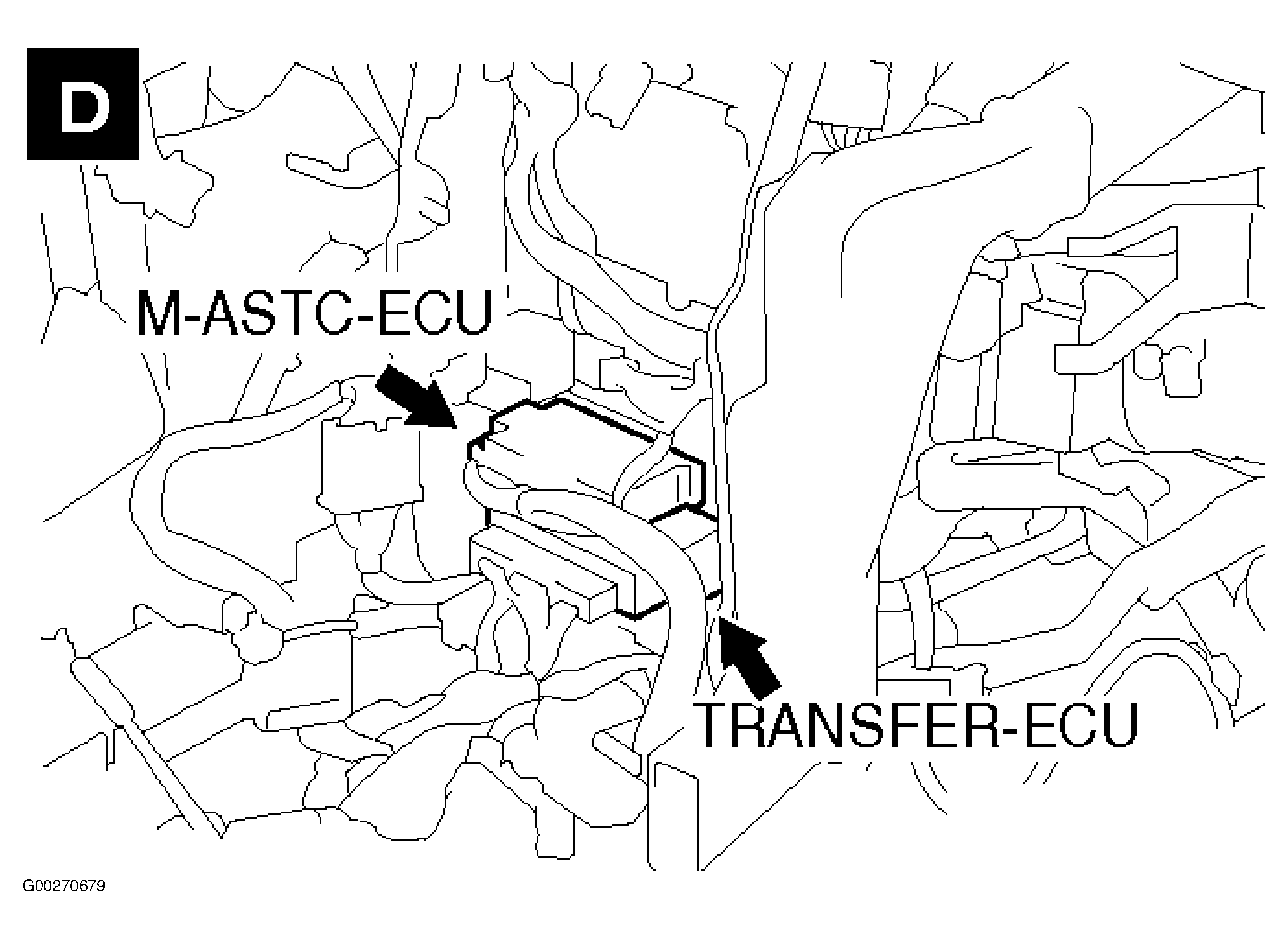

| M-ASTC ECU | Behind center of dash. See Figure . |

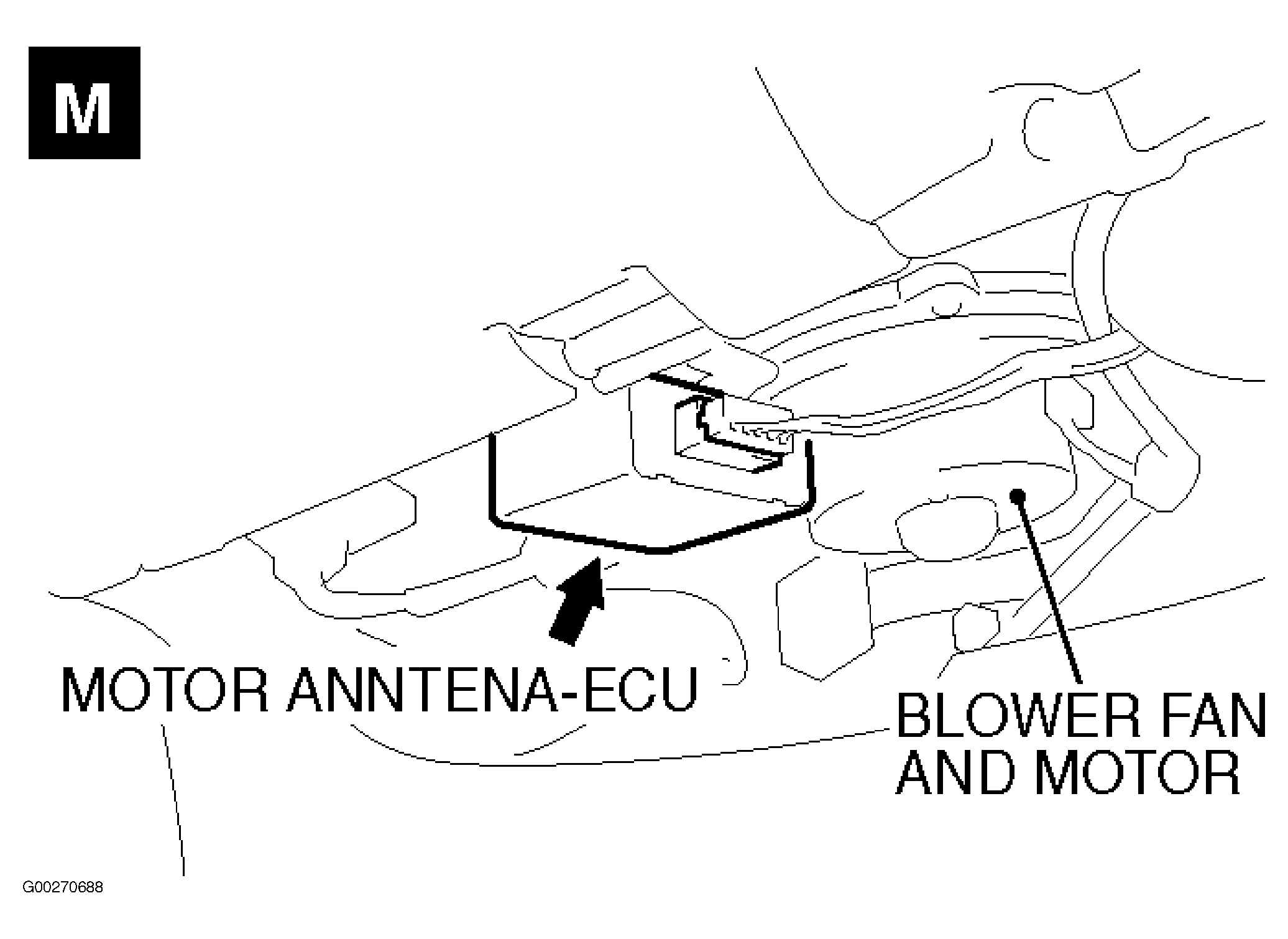

| Motor Antenna ECU | Behind lower right side of dash. See Figure . |

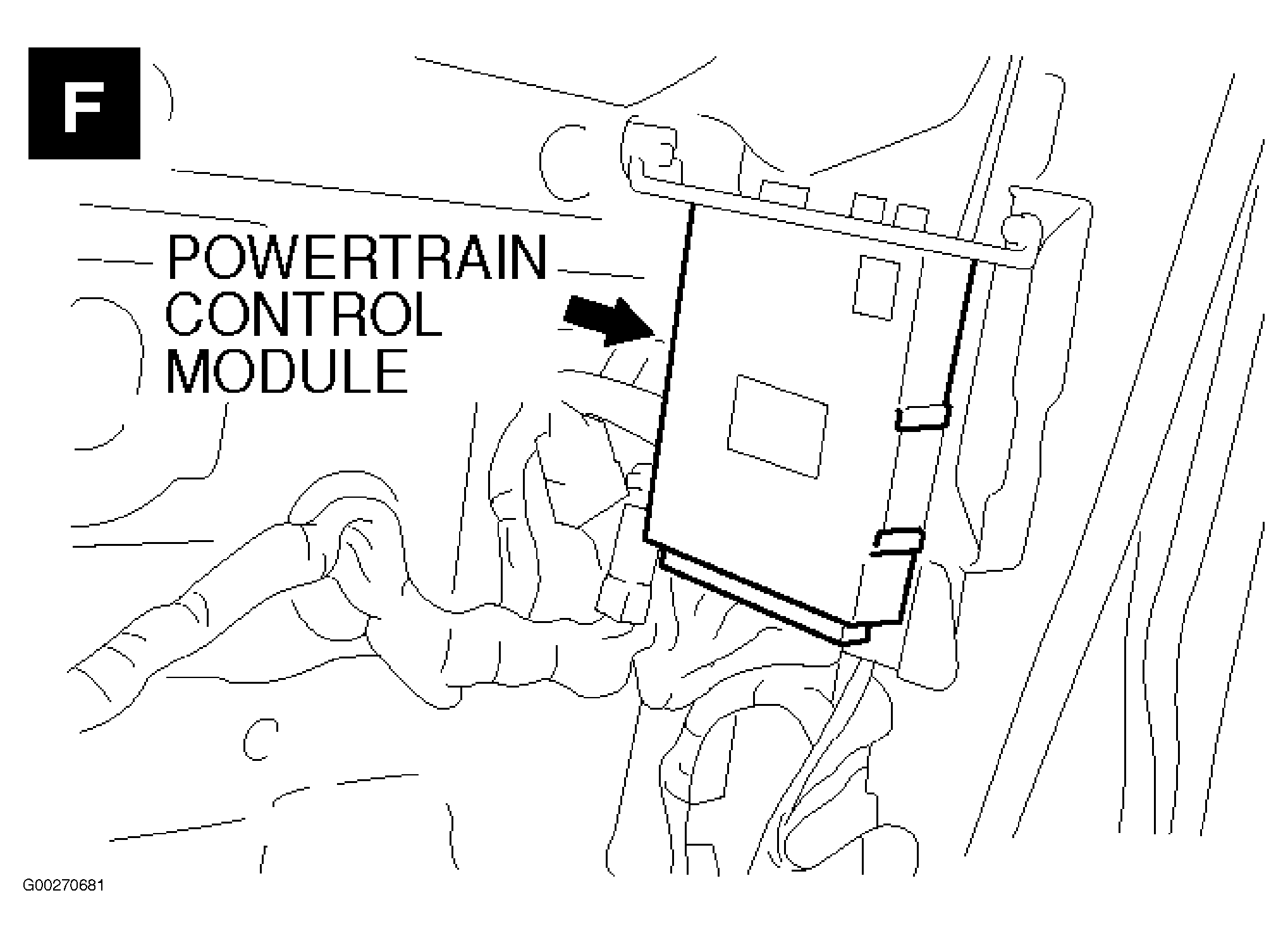

| Powertrain Control Module | Behind lower right side of dash. See Figure . |

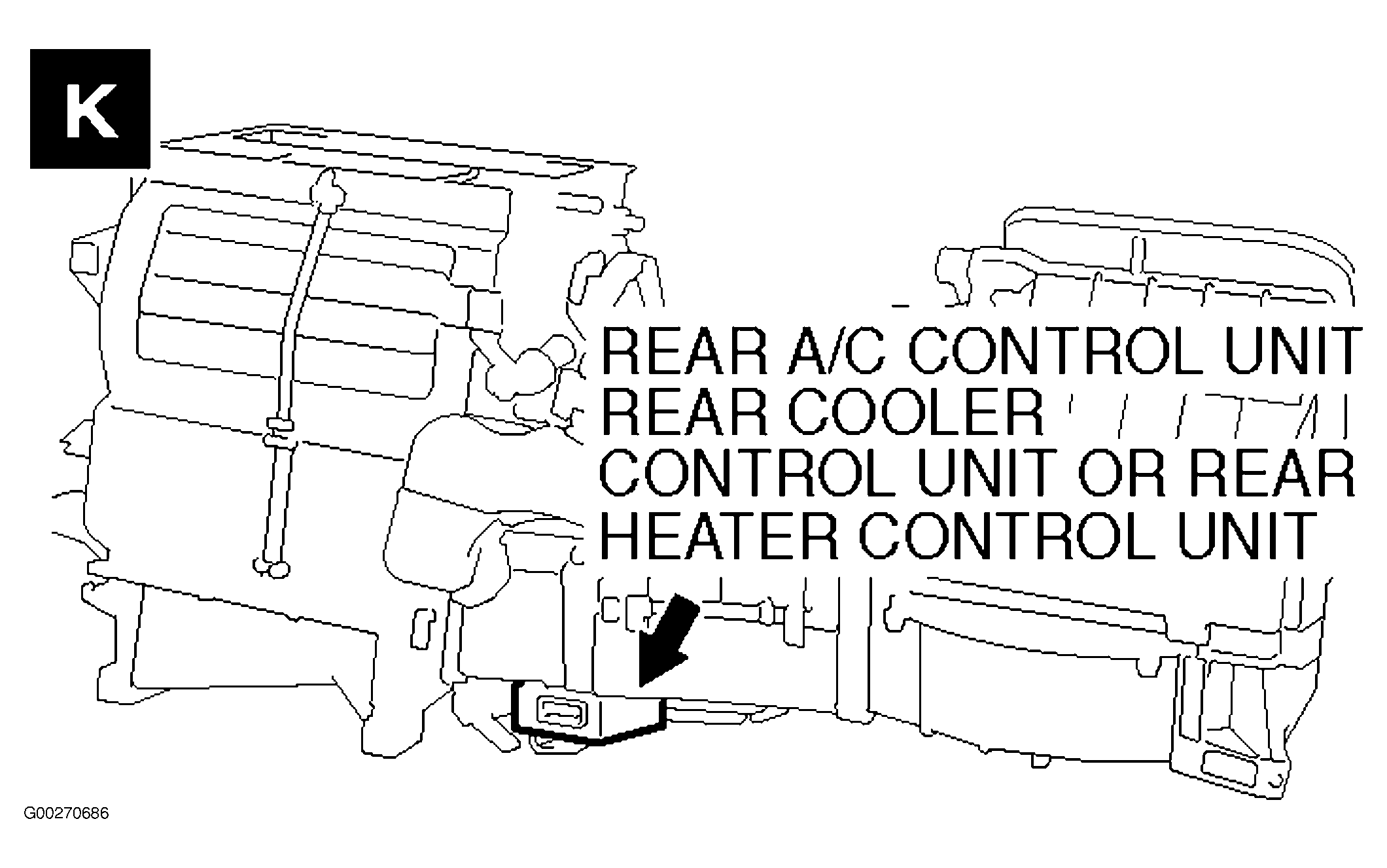

| Rear A/C Control Unit | On bottom of HVAC assembly. See Figure . |
| Rear Cooler Control Unit | On bottom of HVAC assembly. See Figure . |
| Rear Heater Control Unit | On bottom of HVAC assembly. See Figure . |

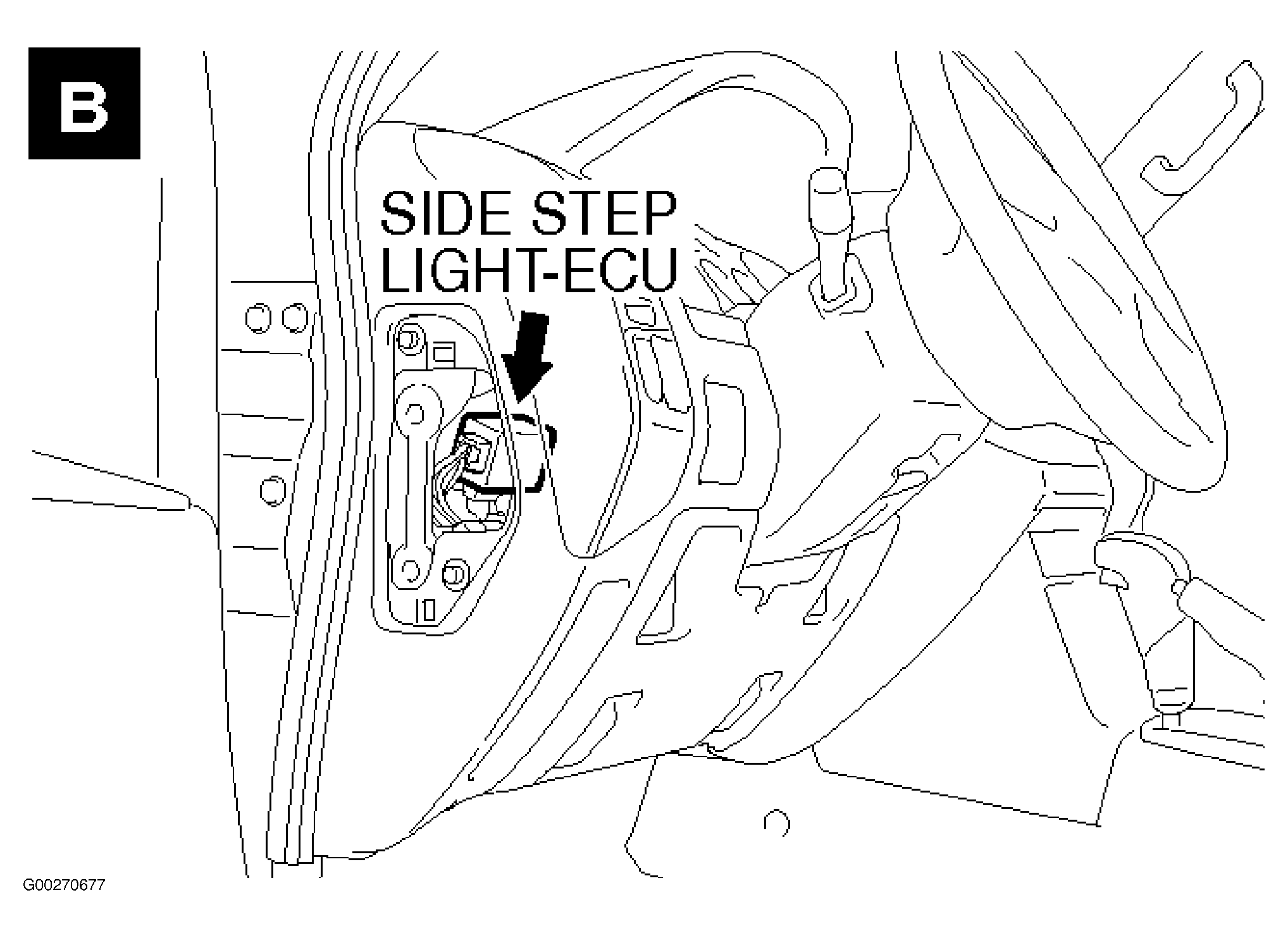

| Side Step Light ECU | Behind left side of dash. See Figure . |

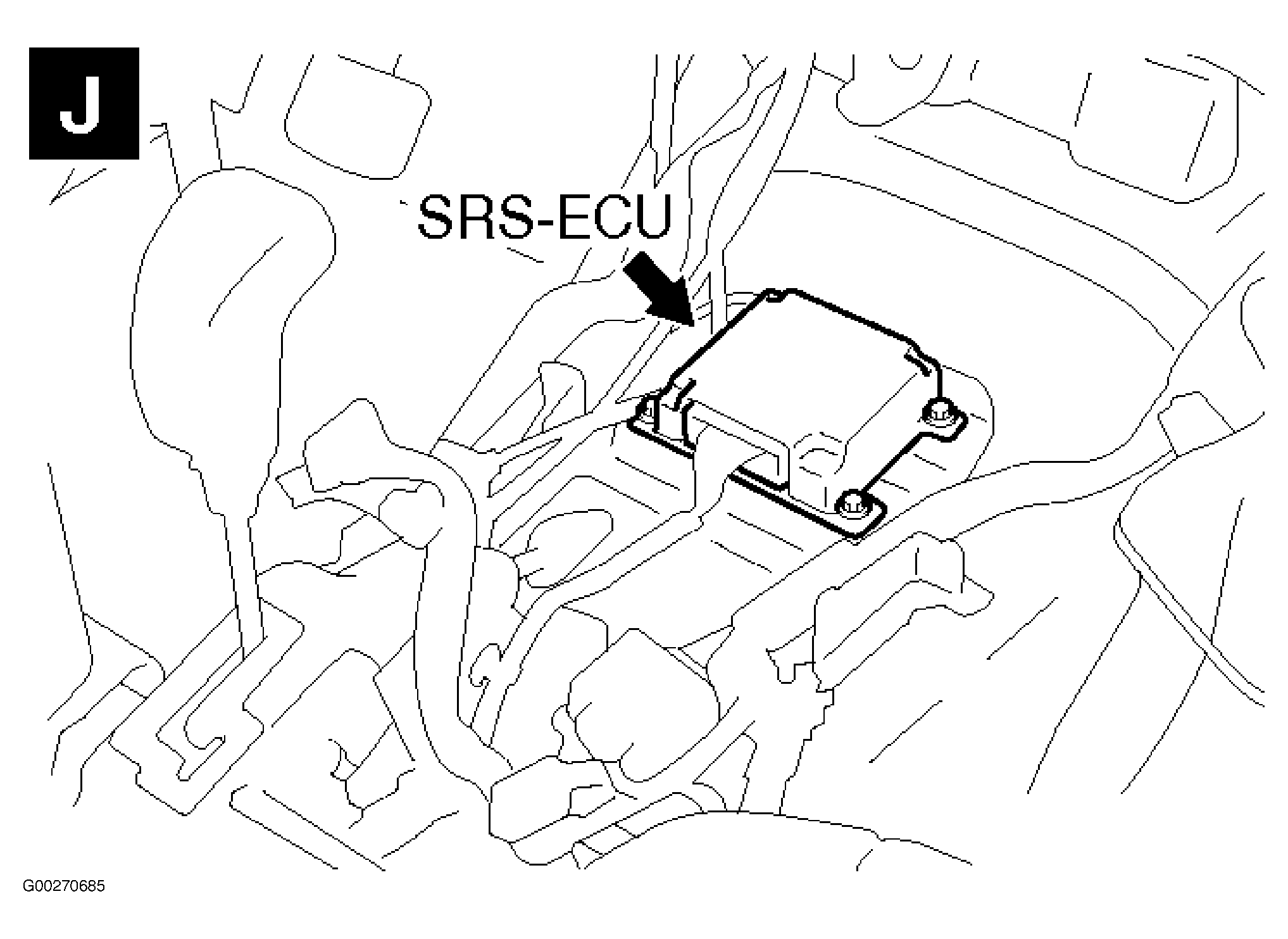

| SRS ECU | Under front of center console. See Figure . |

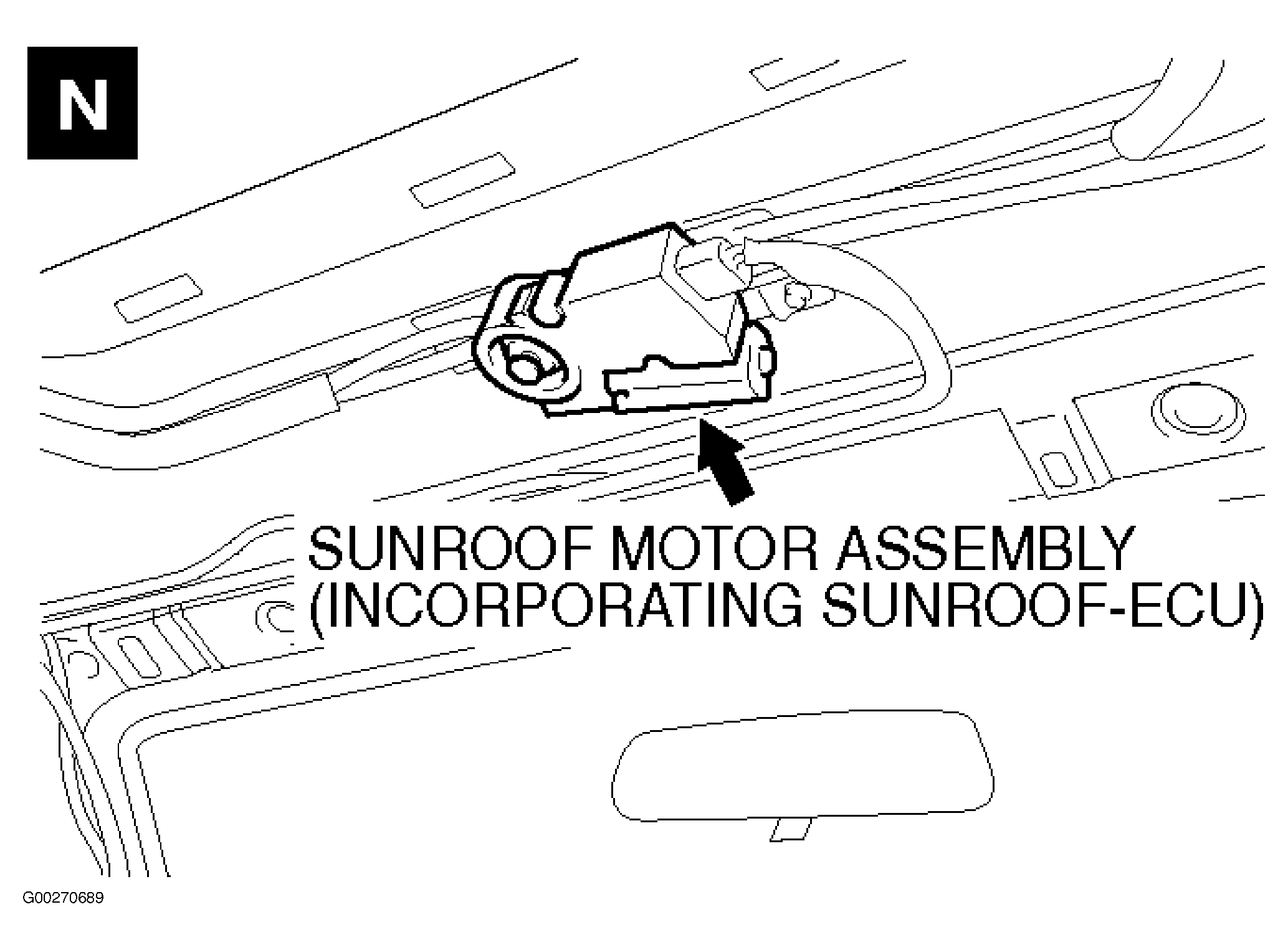

| Sunroof ECU | Integral component of sun roof motor assembly. See Figure . |
| Transfer ECU | Behind center of dash. See Figure . |

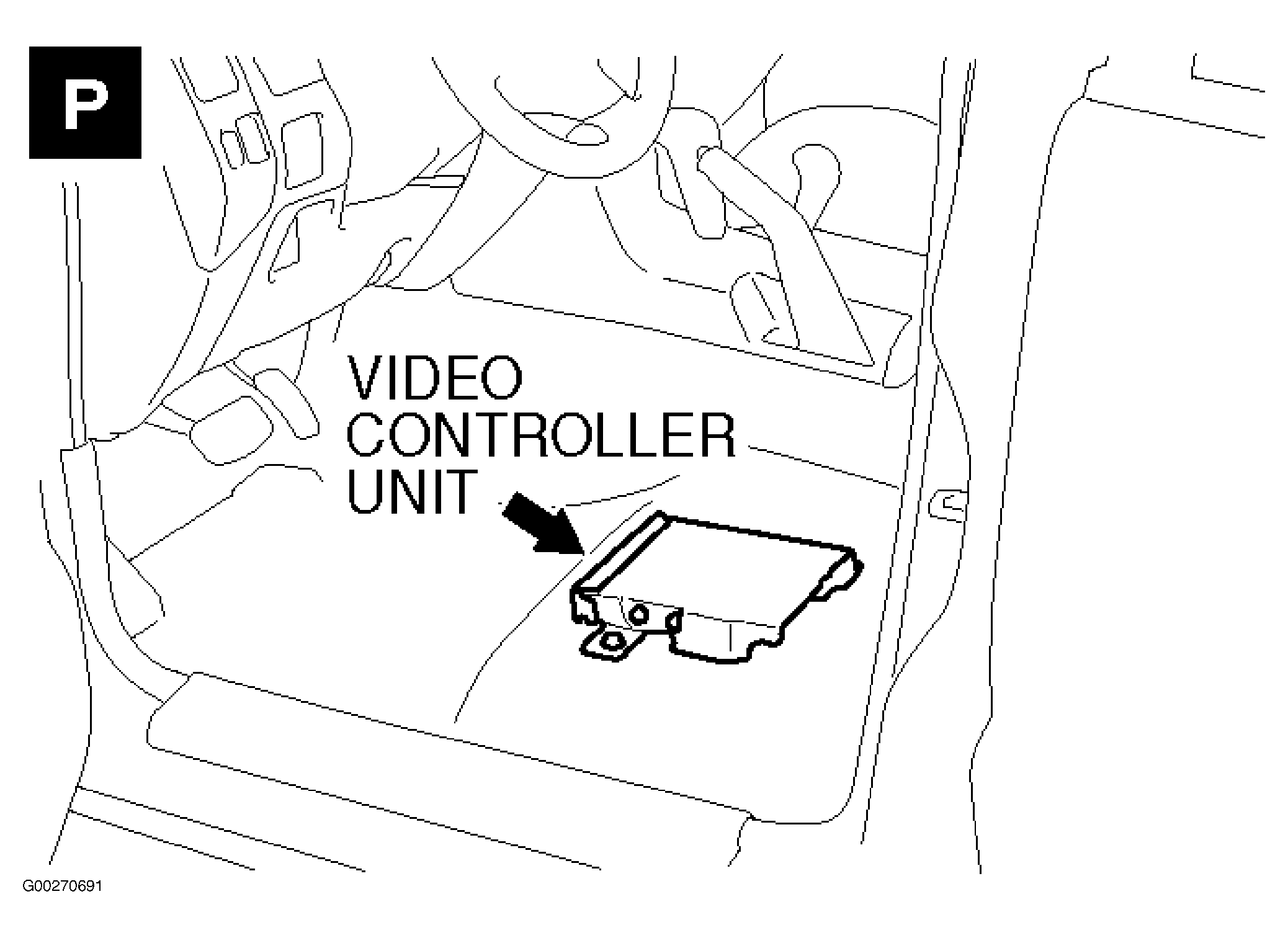

| Video Controller Unit | Below driver's seat. See Figure . |
| 4WD Indicator ECU | Behind center of dash. |
