Notes
Removal And Installation: Notes

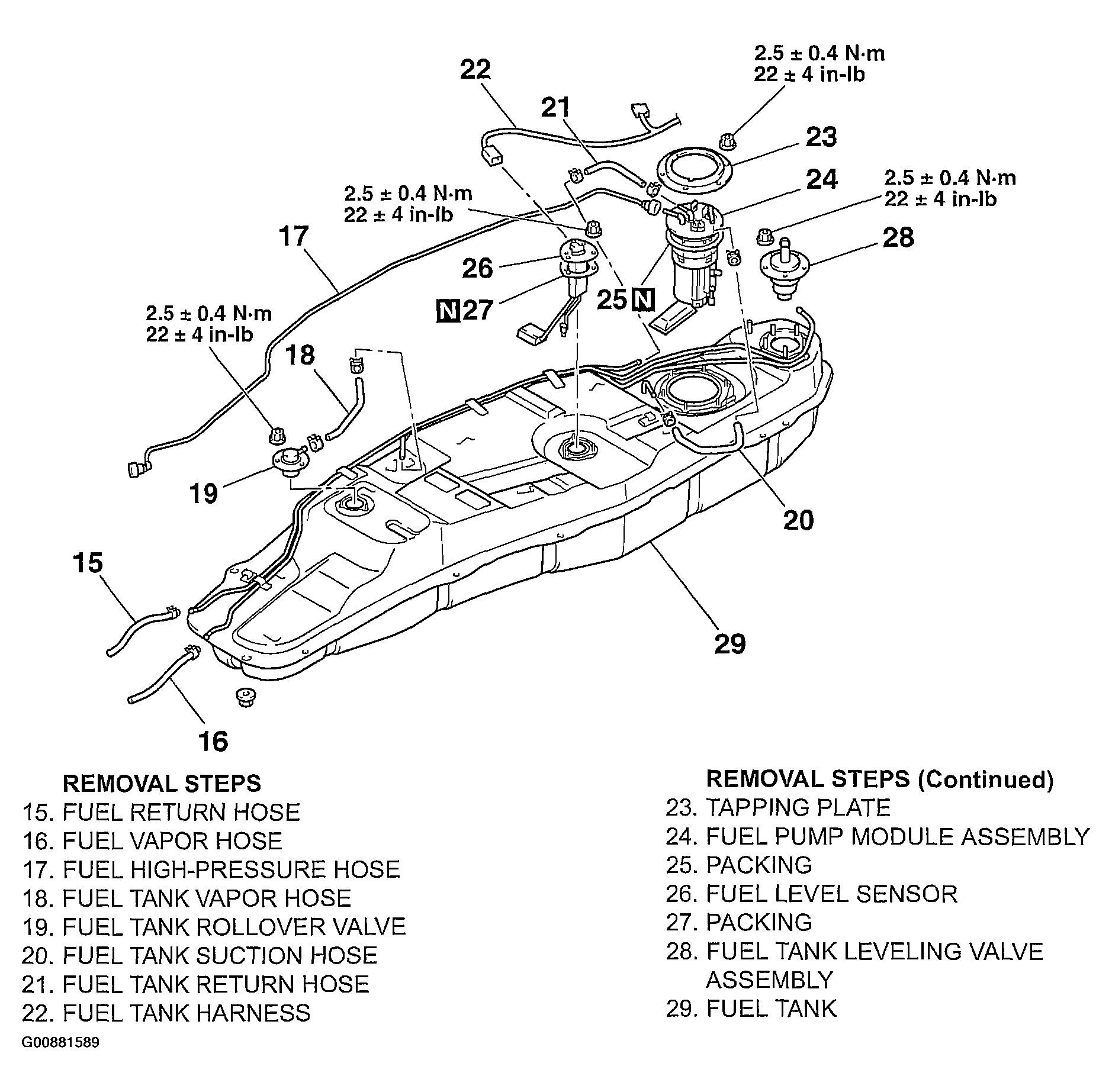

Fig 1: Exploded View Of Fuel Tank Components (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

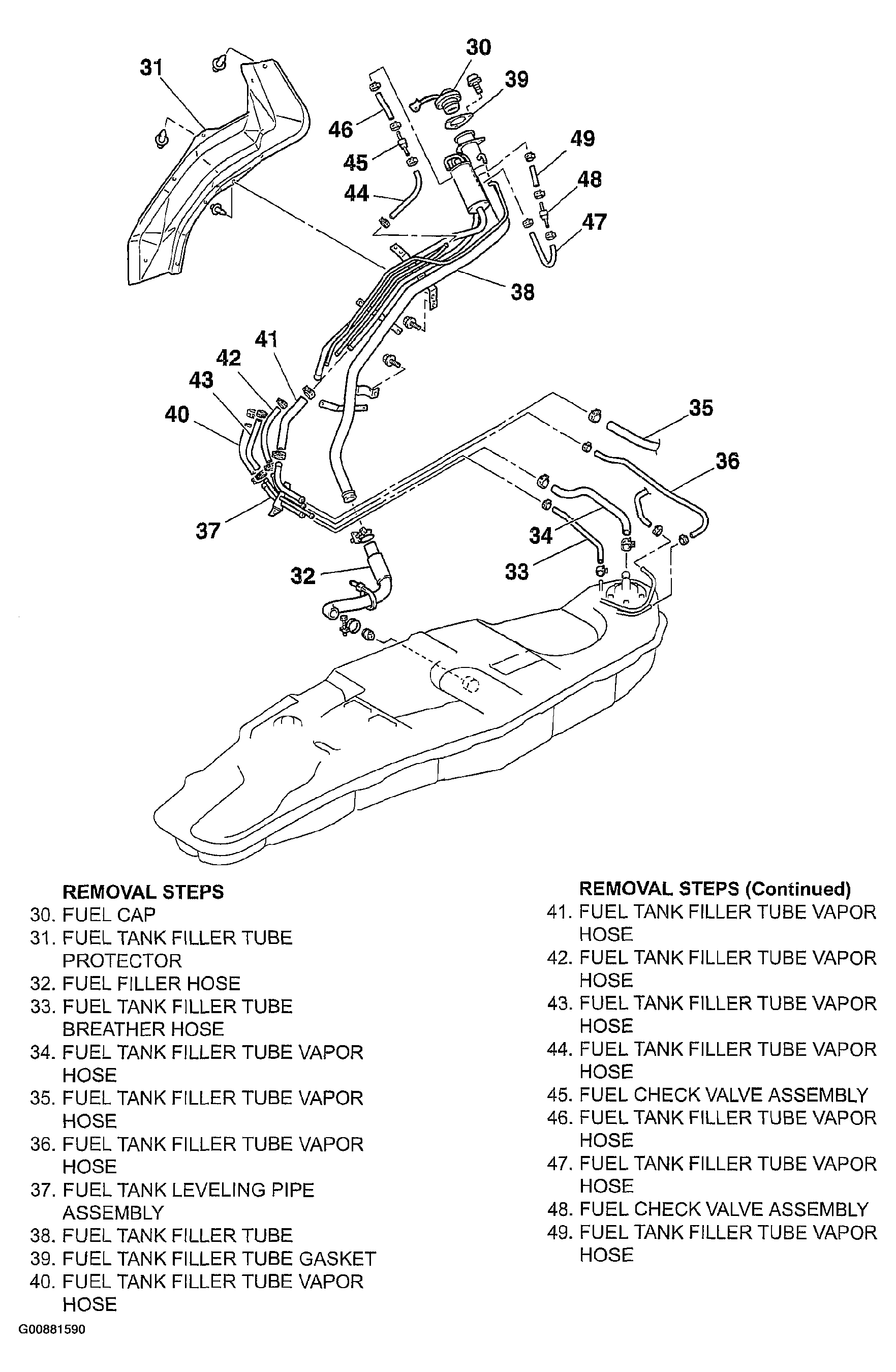

Fig 2: Exploded View Of Fuel Tank Components (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

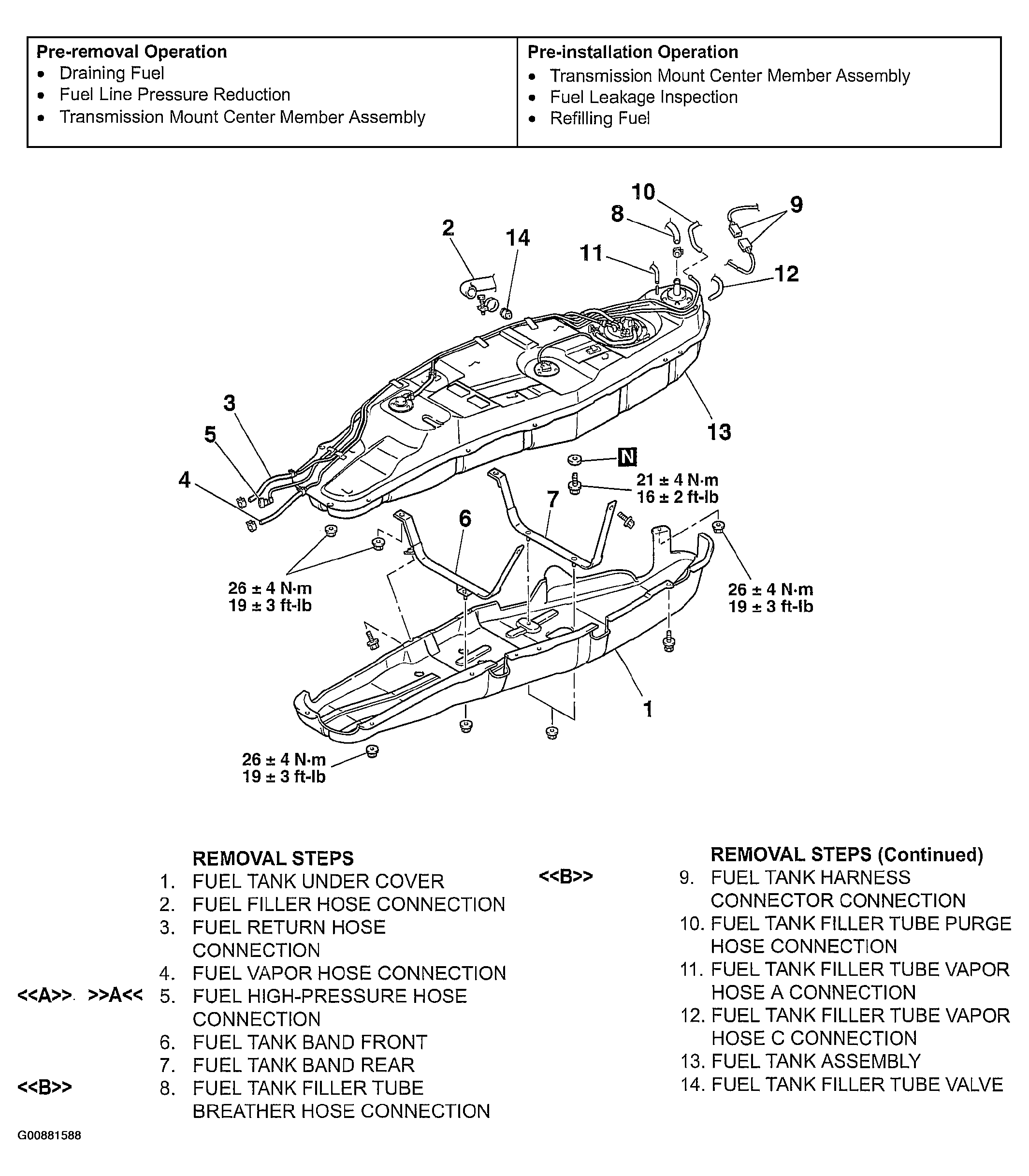

Fig 3: Exploded View Of Fuel Tank Components (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
