Leveling Valve Check

  1. Place a drain pan, and disconnect the fuel tank filler tube breather hose at pipe side.
    NOTE: If fuel leaks from the fuel tank filler tube breather hose at this stage, the leveling valve may be defective.
  2. Open the fuel cap, and fill the fuel tank up.
  3. If fuel does not leak from the fuel tank filler tube breather hose with the fuel tank full, the leveling valve is normal. If not so, the leveling valve may be defective. Lower the fuel tank from the vehicle and replace the valve.
  4. Reconnect the fuel tank filler tube breather hose at the pipe side.

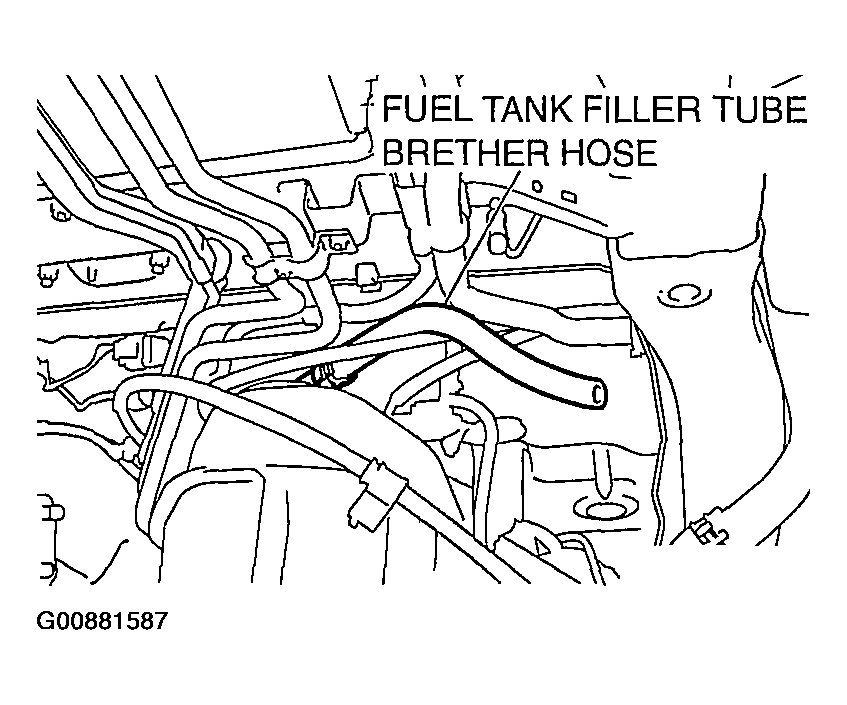

    Fig 1: Disconnecting Fuel Tank Filler Tube Breather Hose At Pipe Side
    G00881587Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
