Disassembly And Assembly: Notes

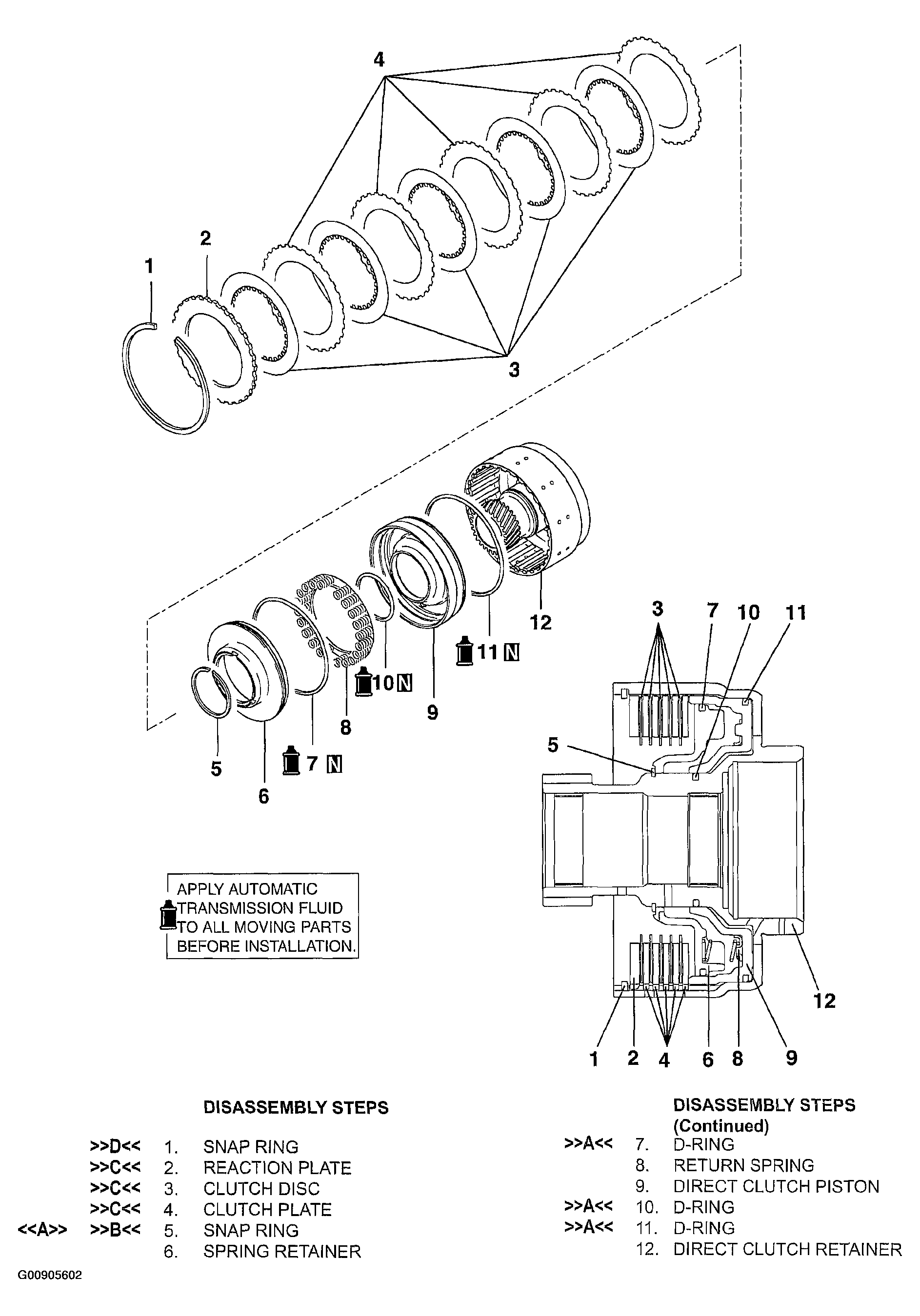

Fig 1: Exploded View Of Direct Clutch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991630: Spring Compressor
• MD998924: Spring Compressor Retainer
