Disassembly And Assembly: Notes

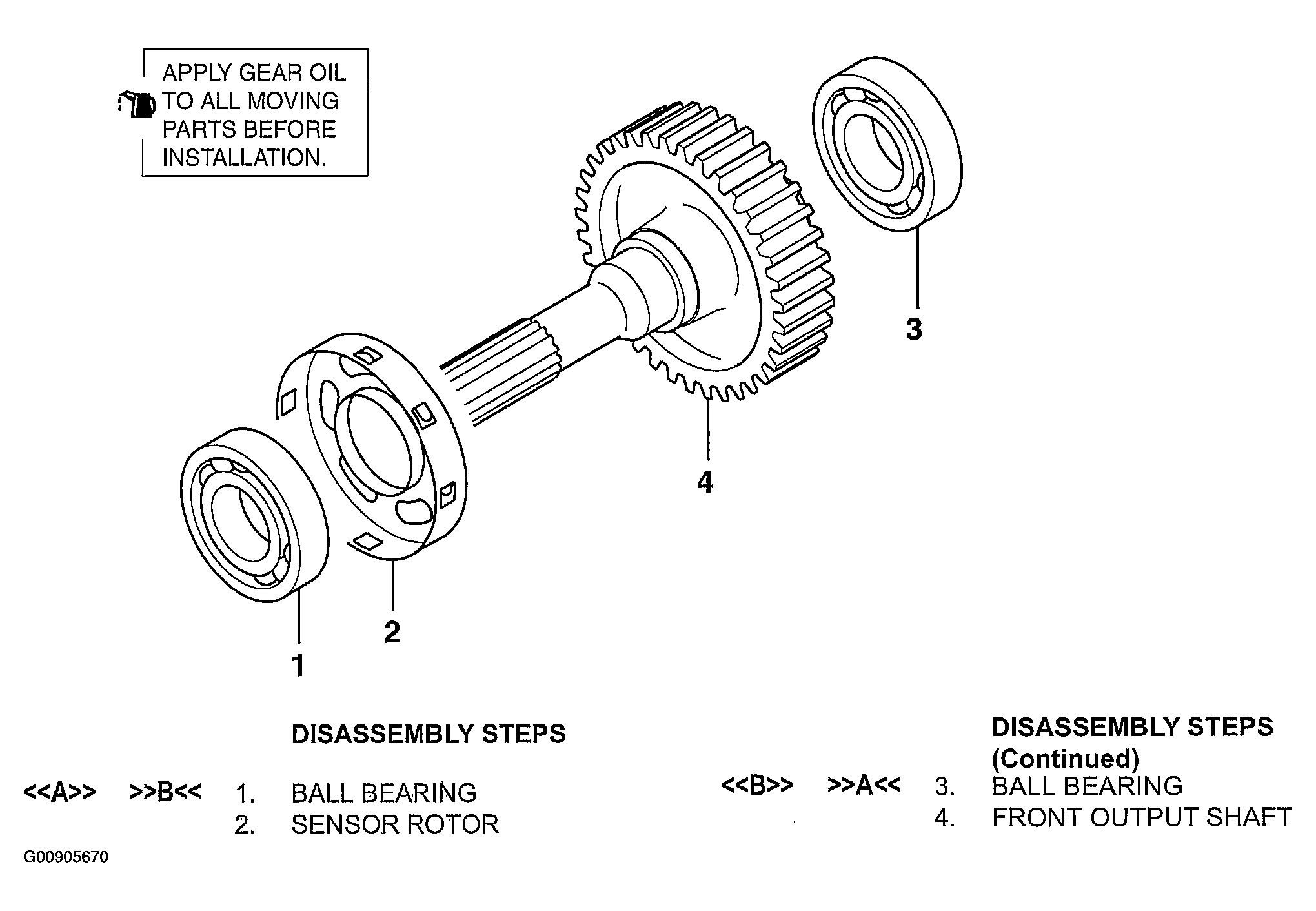

Fig 1: Identifying Front Output Shaft Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998801: Bearing Remover
• MD998812: Installer Cap
• MD998813: Installer-100
• MD998818: Installer Adapter
