Home >> Mitsubishi >> 2004 >> Montero XLS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Specifications >> Service Specifications >> Transfer

Service Specifications: Transfer

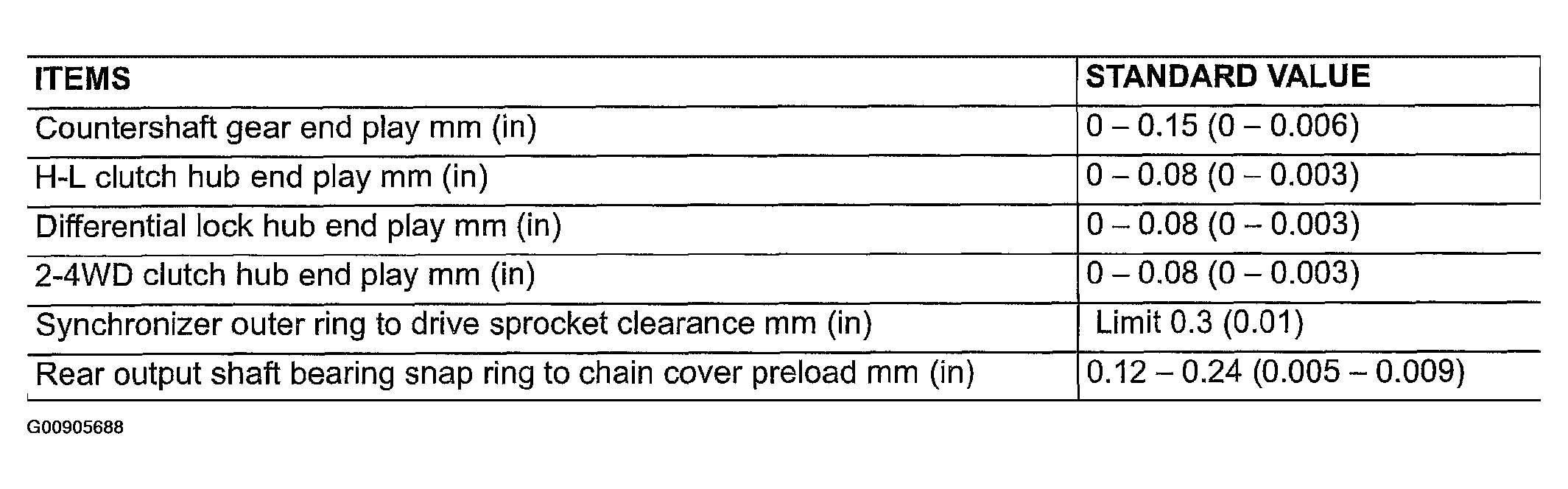

Fig 1: Service Specifications Transfer (1 Of 2)
G00905688Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

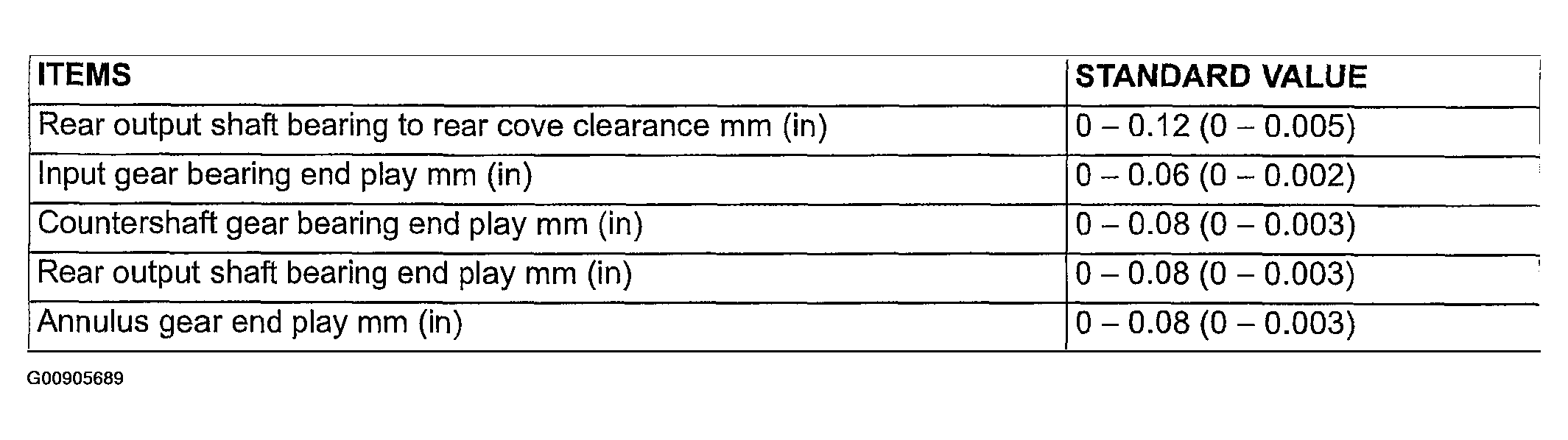

Fig 2: Service Specifications Transfer (2 Of 2)
G00905689Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
