Removal And Installation: Notes

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING and PASSENGER-SIDE AIR BAG MODULE .

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustrations in Removal and Installation and Disassembly and Assembly.

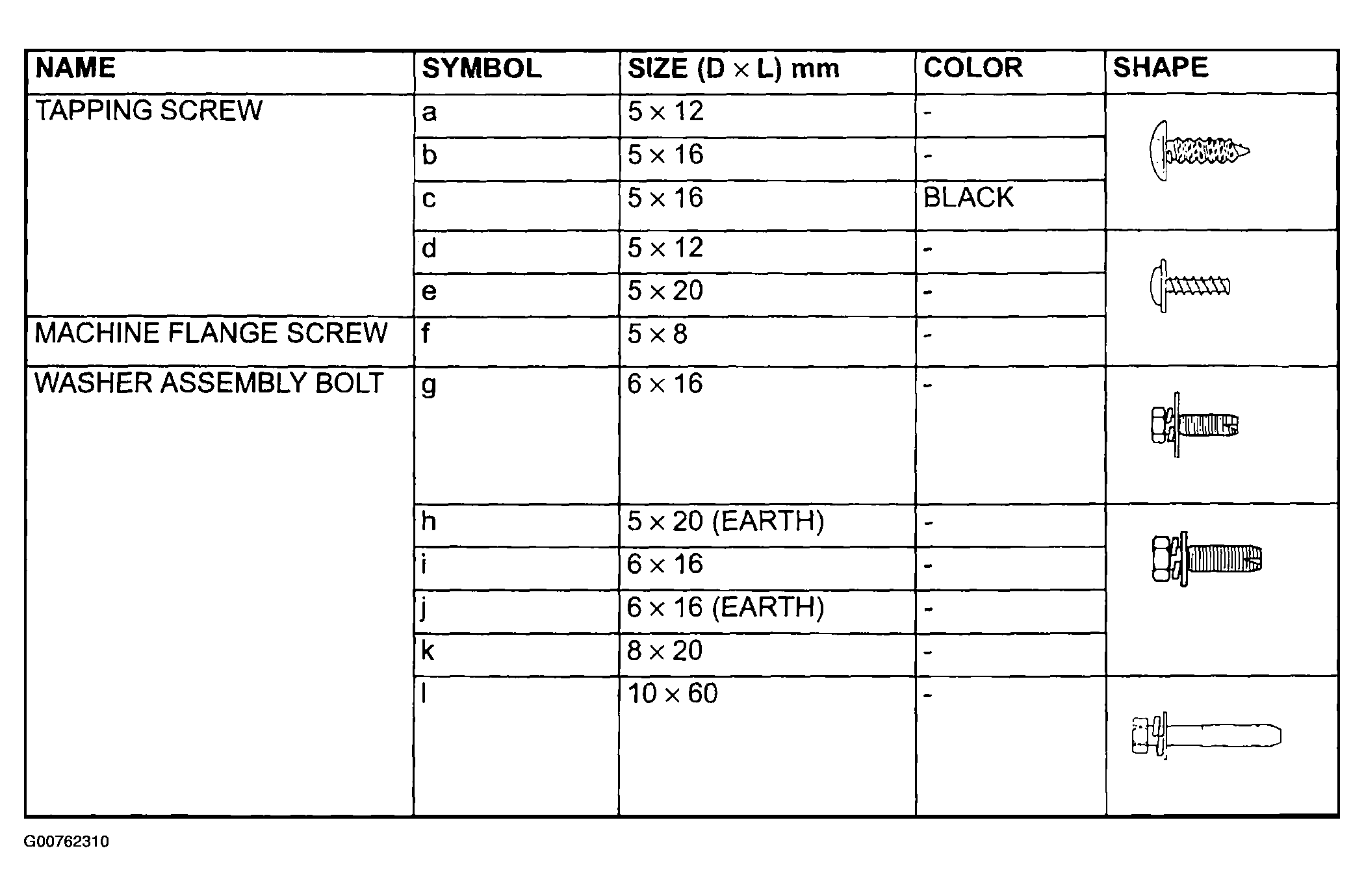

Fig 1: Identifying Instrument Panel Assembly Bolts & Screws

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

Refer to AIR BAG SAFETY PRECAUTIONS and PASSENGER-SIDE AIR BAG MODULE before removing the passenger side air bag module.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

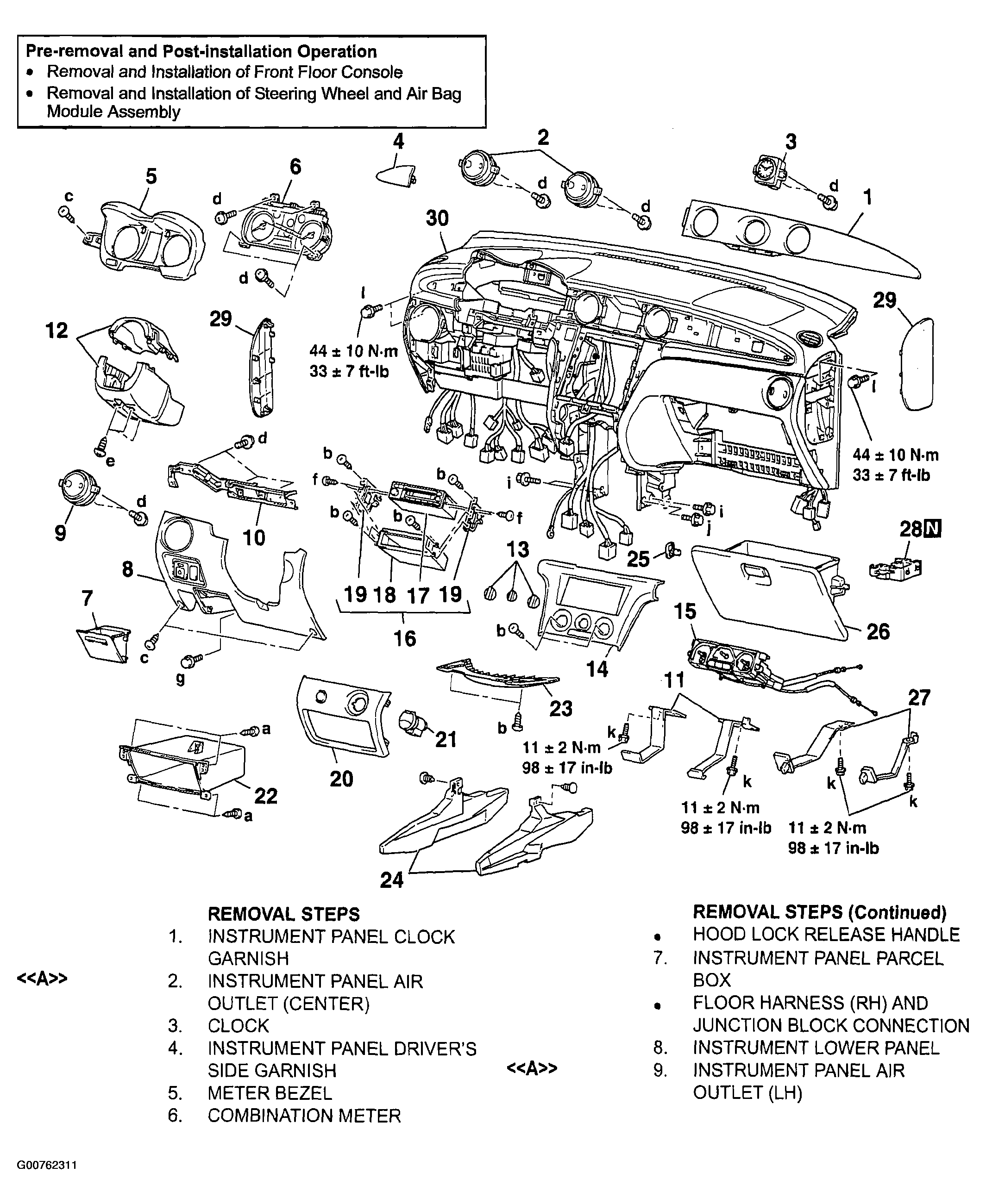

Fig 2: Exploded View Of Instrument Panel Assembly Components (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

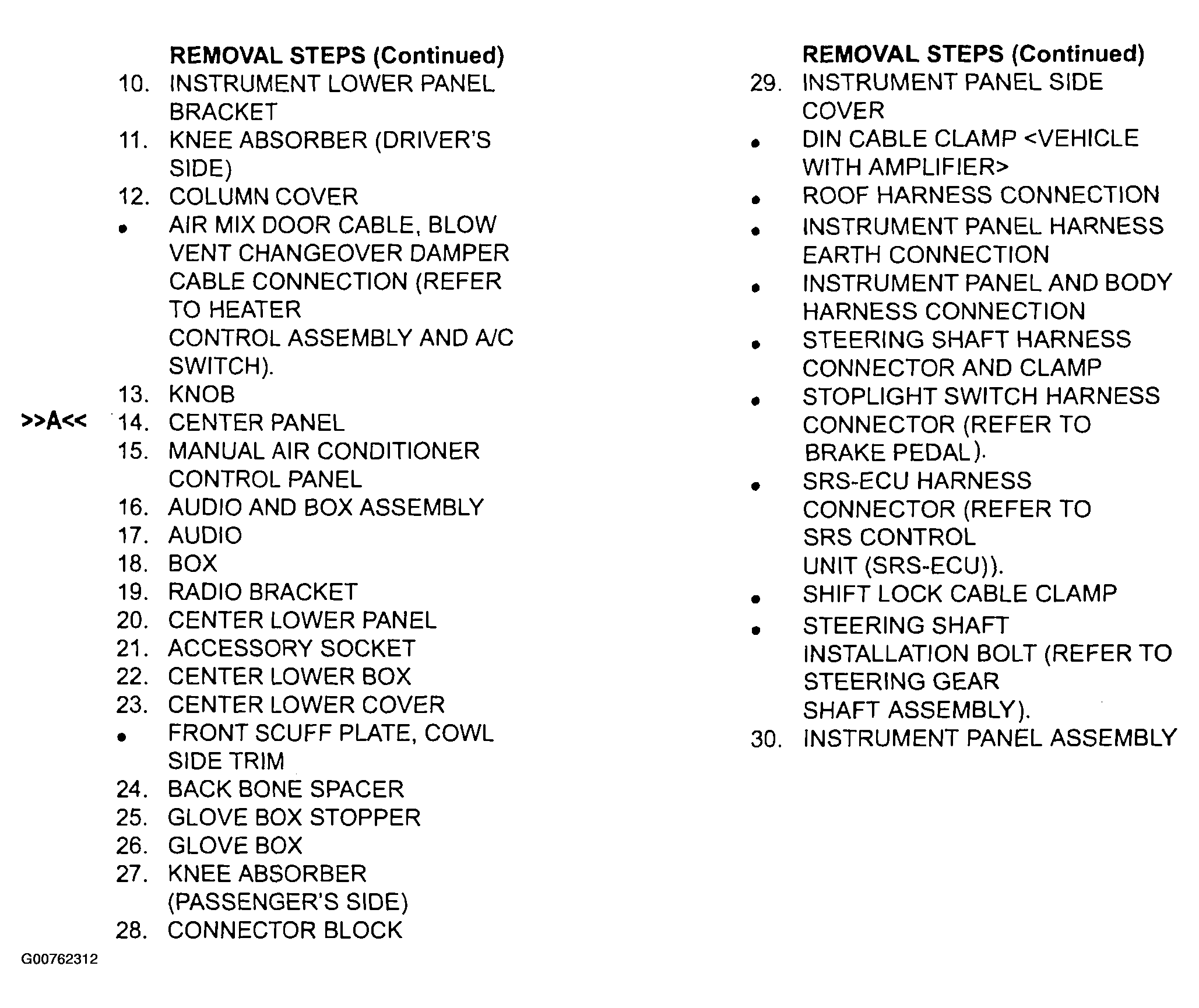

Fig 3: Exploded View Of Instrument Panel Assembly Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
