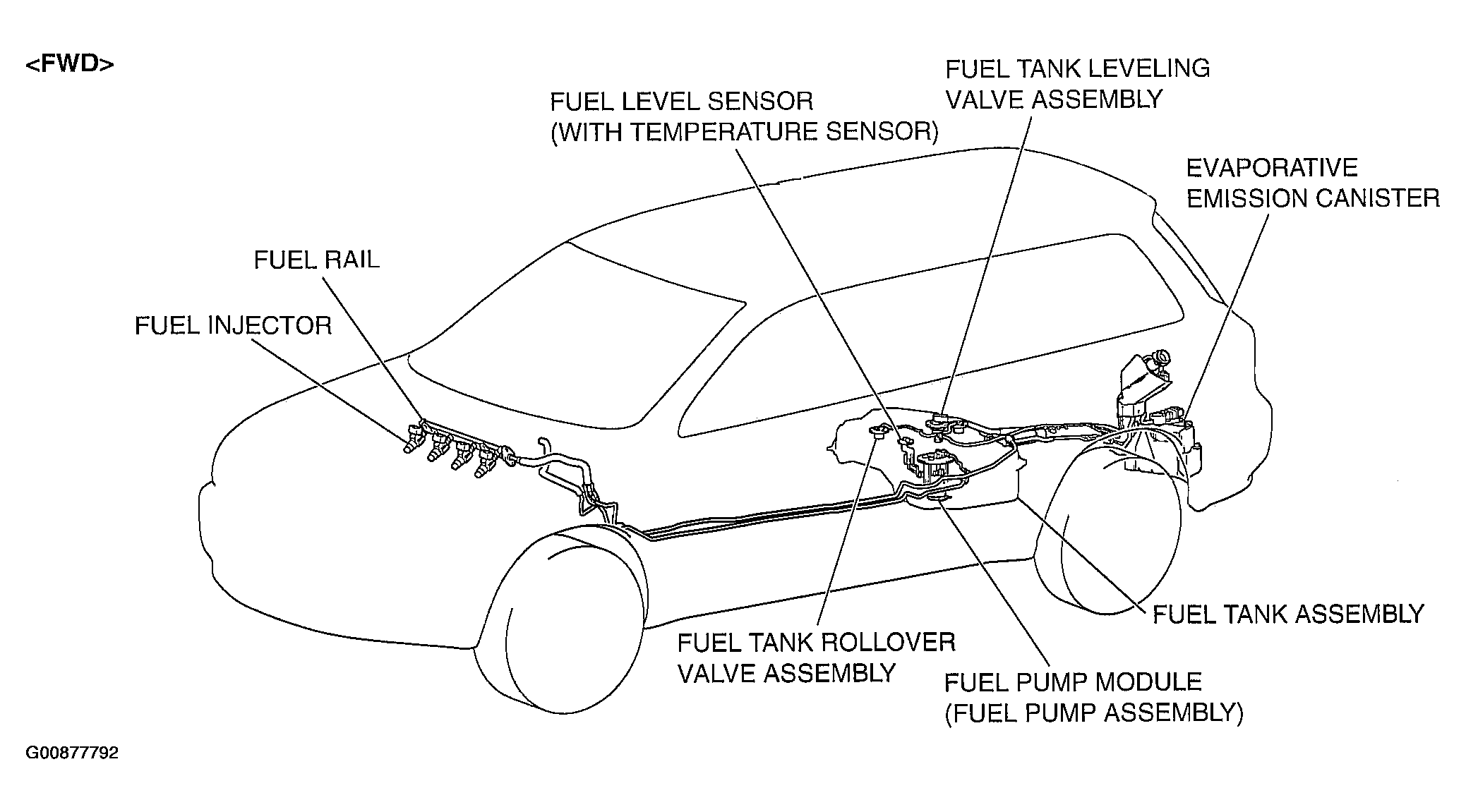

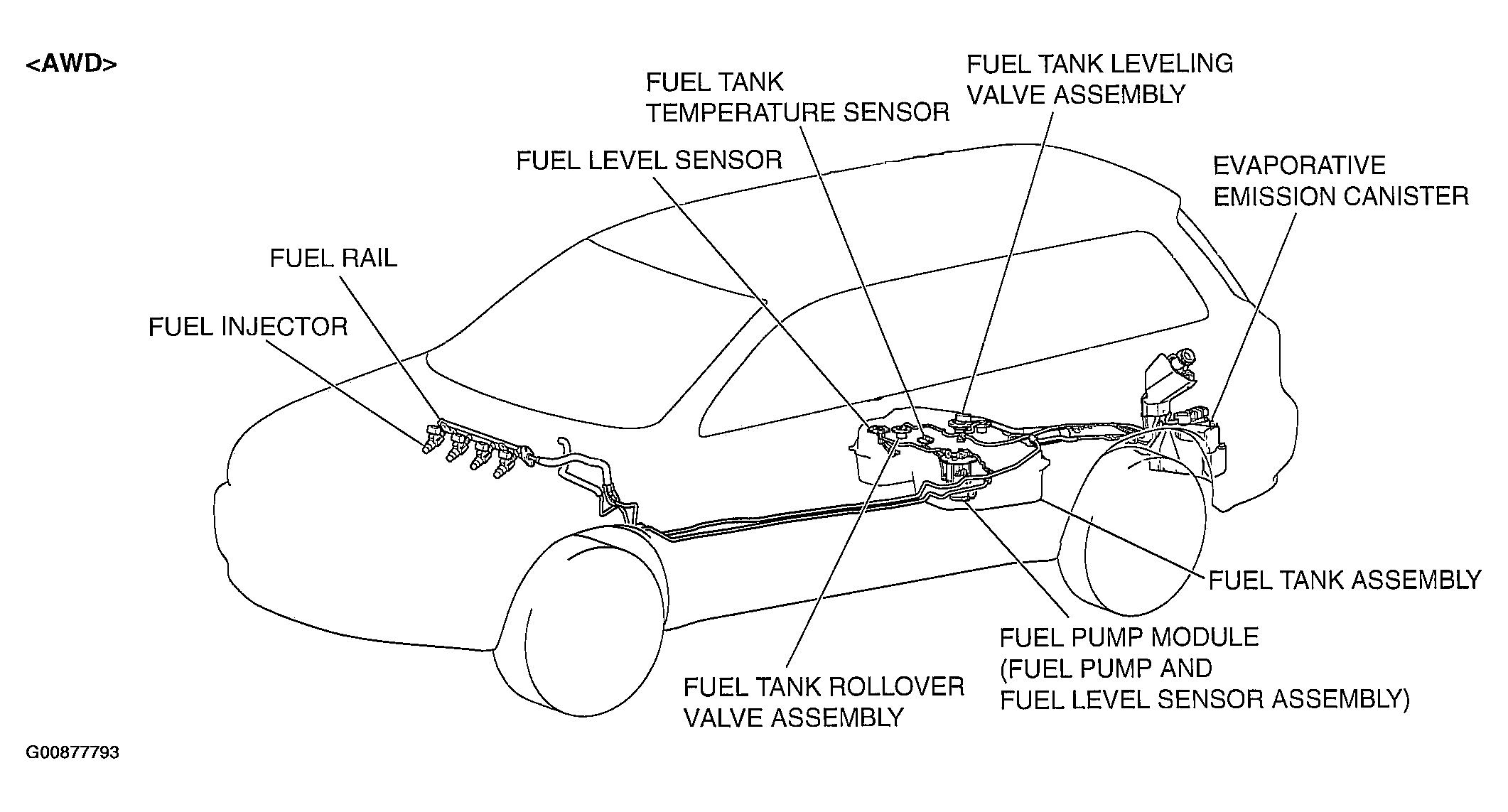

Fuel Supply: General Description
- The fuel tank is located under the floor of the rear seats to provide increased protection and a more luggage space.
- A fuel tank rollover valve assembly has been adopted to prevent fuel from leaking out in case of a collision.
- A fuel pump module [fuel pump assembly < FWD >, fuel pump and gauge assembly < AWD >], including fuel pump, fuel filter, reservoir and fuel level sensor, has been adopted to lighten weight and improve serviceability.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
