Home >> Mitsubishi >> 2004 >> Outlander LS, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Second Brake >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

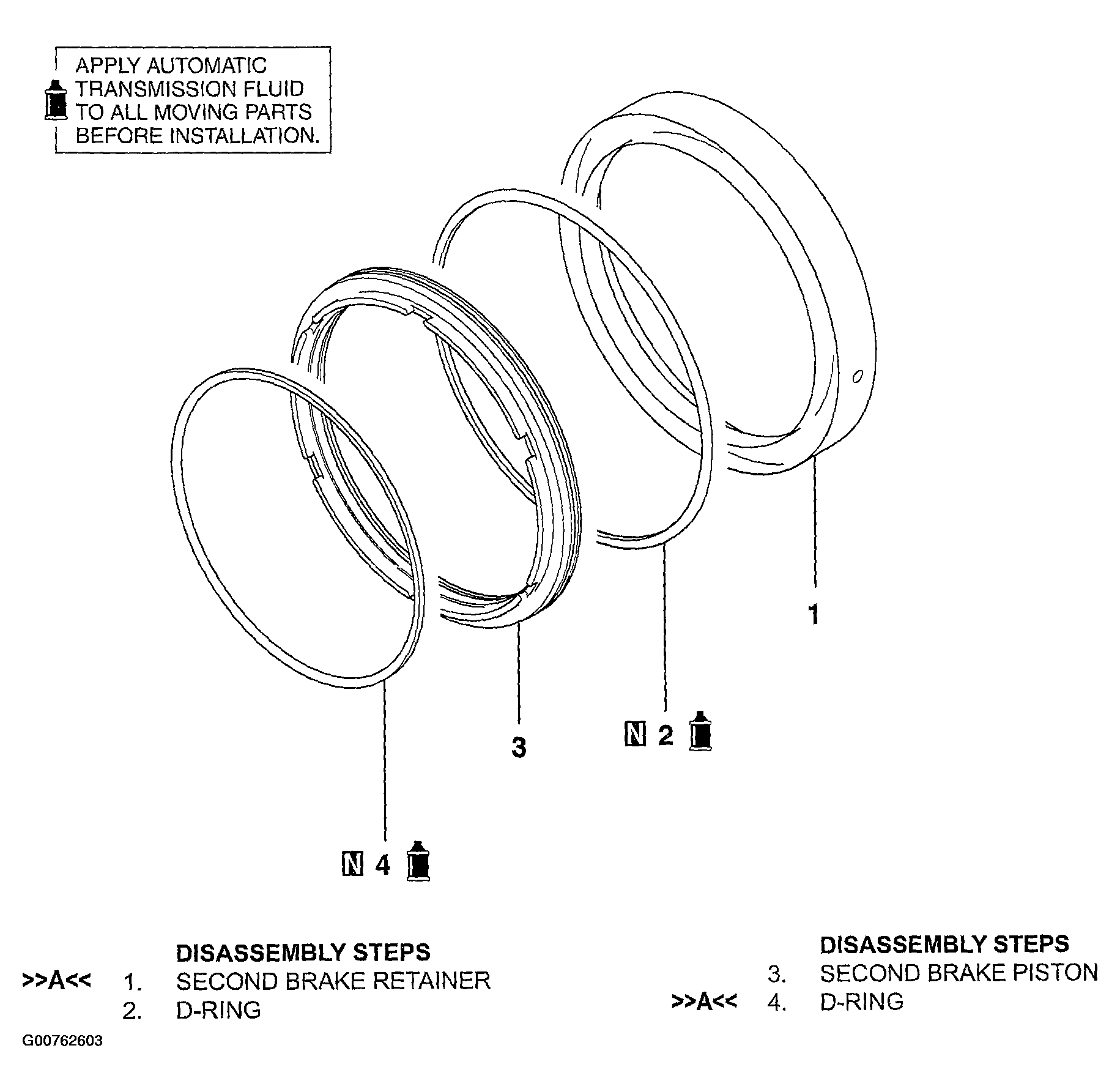

Fig 1: Disassembling Second Brake
G00762603Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
