Disassembly And Assembly: Notes

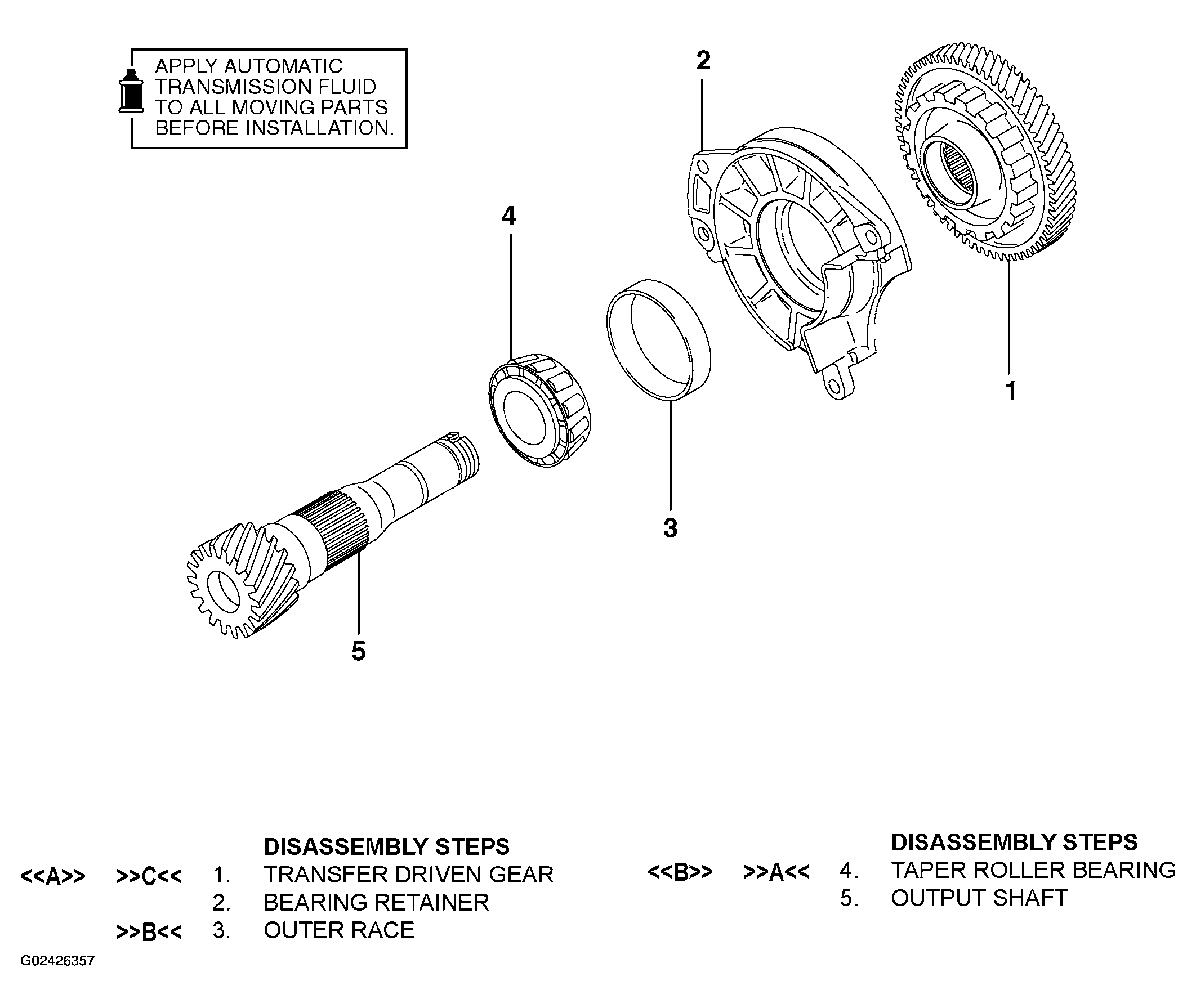

Fig 1: Disassembling/Assembling Output Shaft

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990936: Installer Adapter < F4A42 >
• MB990937: Installer Adapter < F4A51 >
• MB990938: Handle
• MB998801: Bearing Remover
• MB998812: Installer Cap
• MB998813: Installer-100
• MB998814: Installer-200
• MB998823: Installer Adapter (48) < F4A42 >
• MB998824: Installer Adapter (50) < F4A51 >
• MB998827: Installer Adapter (56) < F4A51 >
• MB998917: Bearing Remover < F4A42 >
