Commutator Check

Place the armature on a pair of V-blocks, and check the deflection by using a dial gauge.
- Standard value: 0.05 mm (0.002 inch)
- Limit: 0.1 mm (0.004 inch)

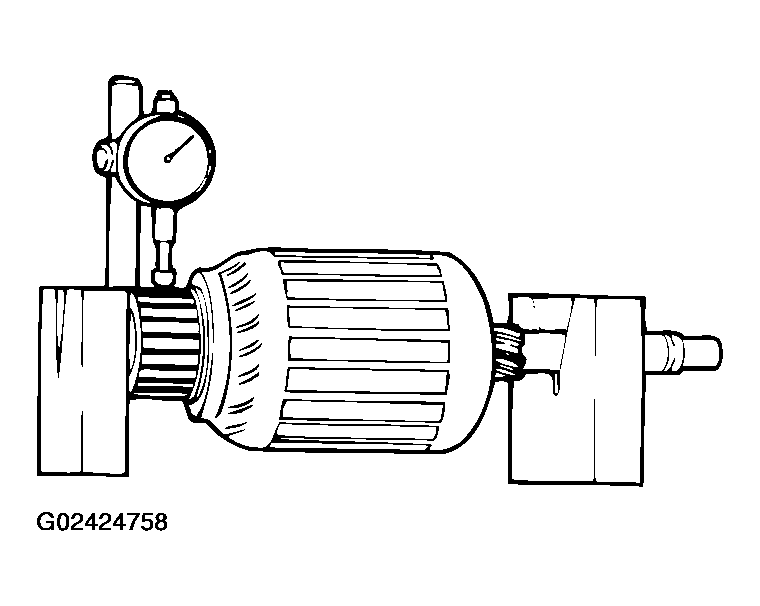

Fig 1: Checking Deflection
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the outer diameter of the commutator.
- Standard value: 29.4 mm (1.16 inches)
- Minimum limit: 28.8 mm (1.13 inches)

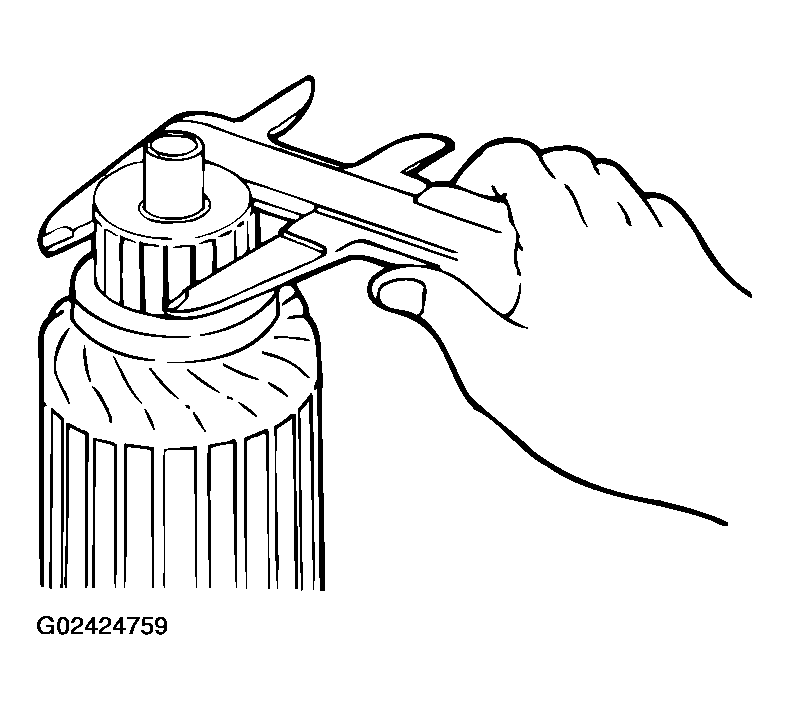

Fig 2: Checking Outer Diameter Of Commutator
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the depth of the undercut between segments.
- Standard value: 0.5 mm (0.02 inch)
- Minimum limit: 0.2 mm (0.008 inch)

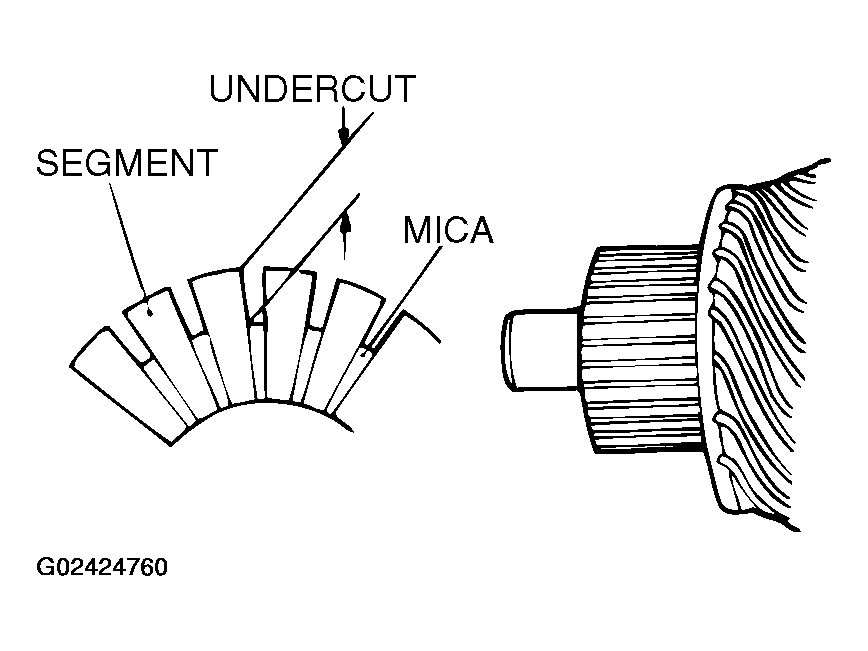

Fig 3: Checking Depth Of Undercut Between Segments
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
