Disassembly And Assembly: Notes

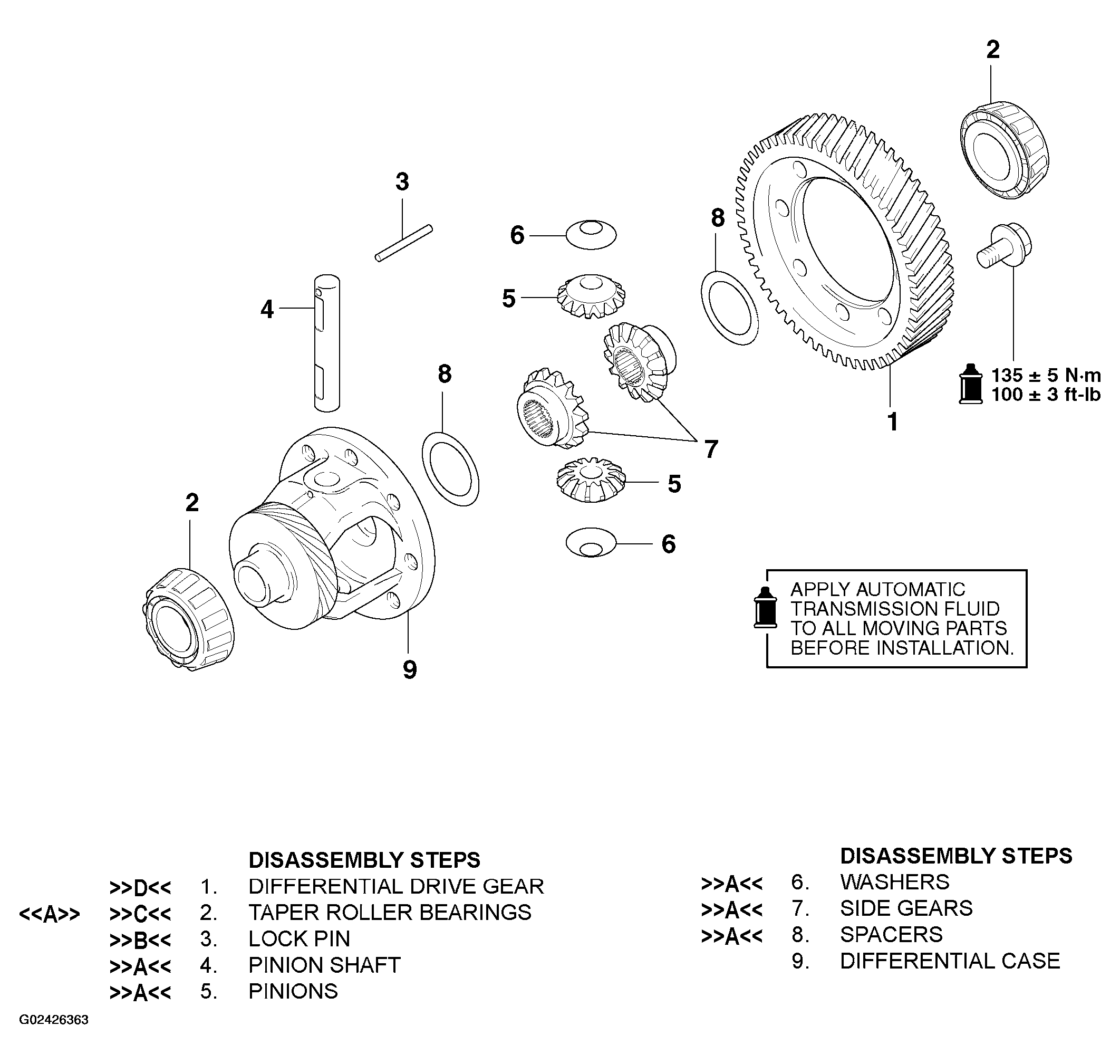

Fig 1: Disassembling/Assembling Differential

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB998801: Bearing Remover
• MB998812: Installer Cap
• MB998820: Installer Adapter (42)
