Home >> Mitsubishi >> 2005 >> Eclipse GTS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Valve Body >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

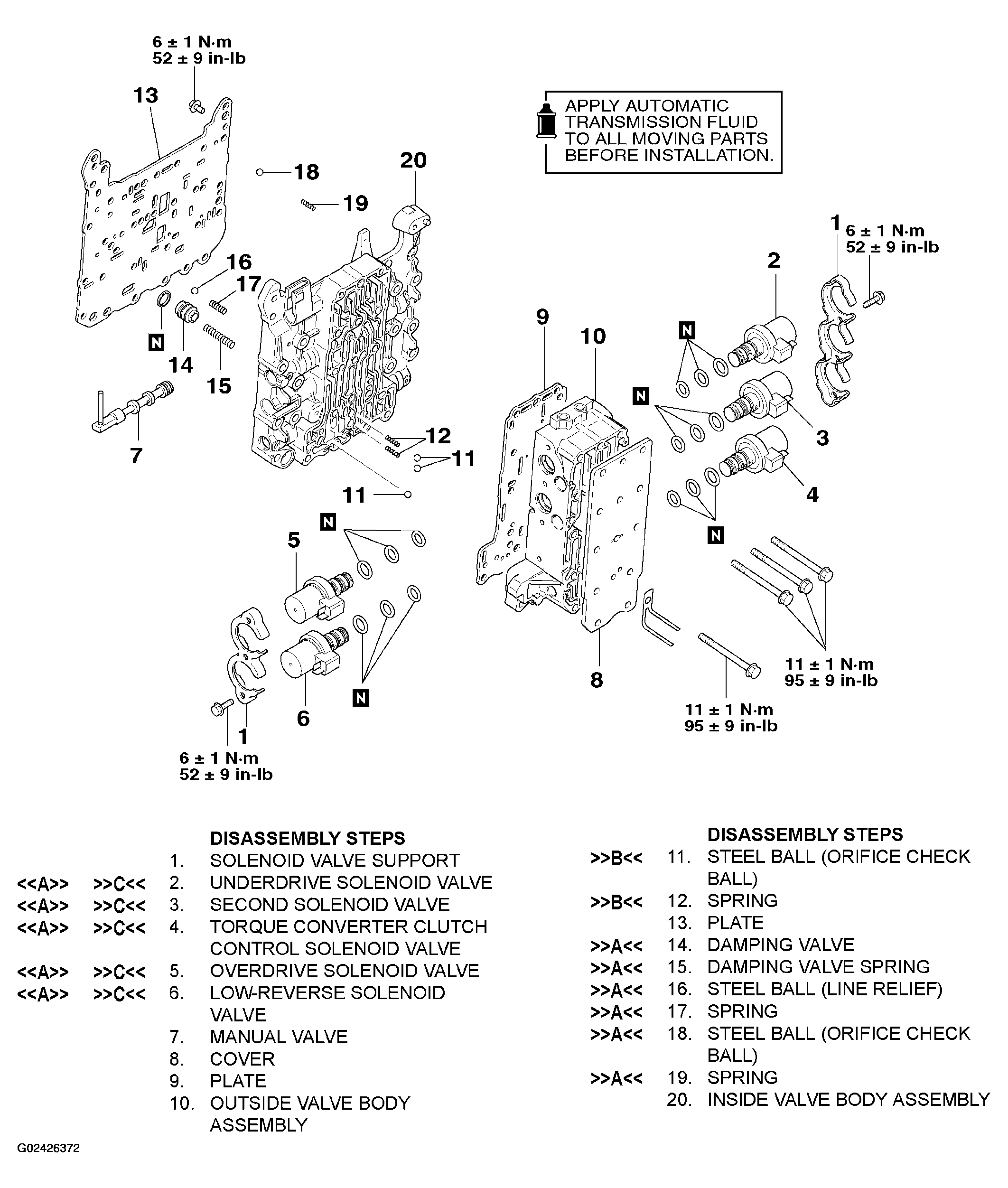

Fig 1: Disassembling/Assembling Valve Body (1 Of 3)
G02426372Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

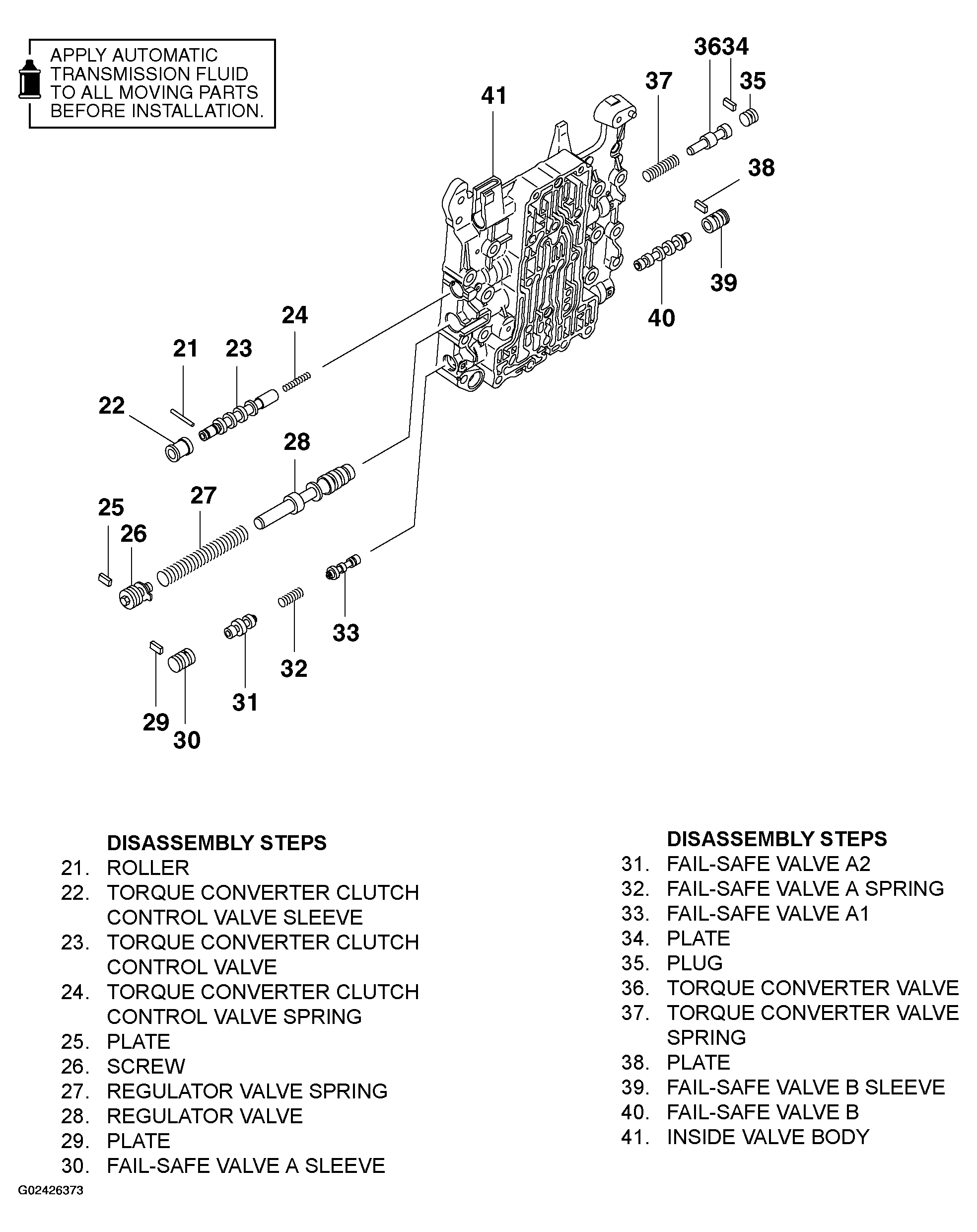

Fig 2: Disassembling/Assembling Valve Body (2 Of 3)
G02426373Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

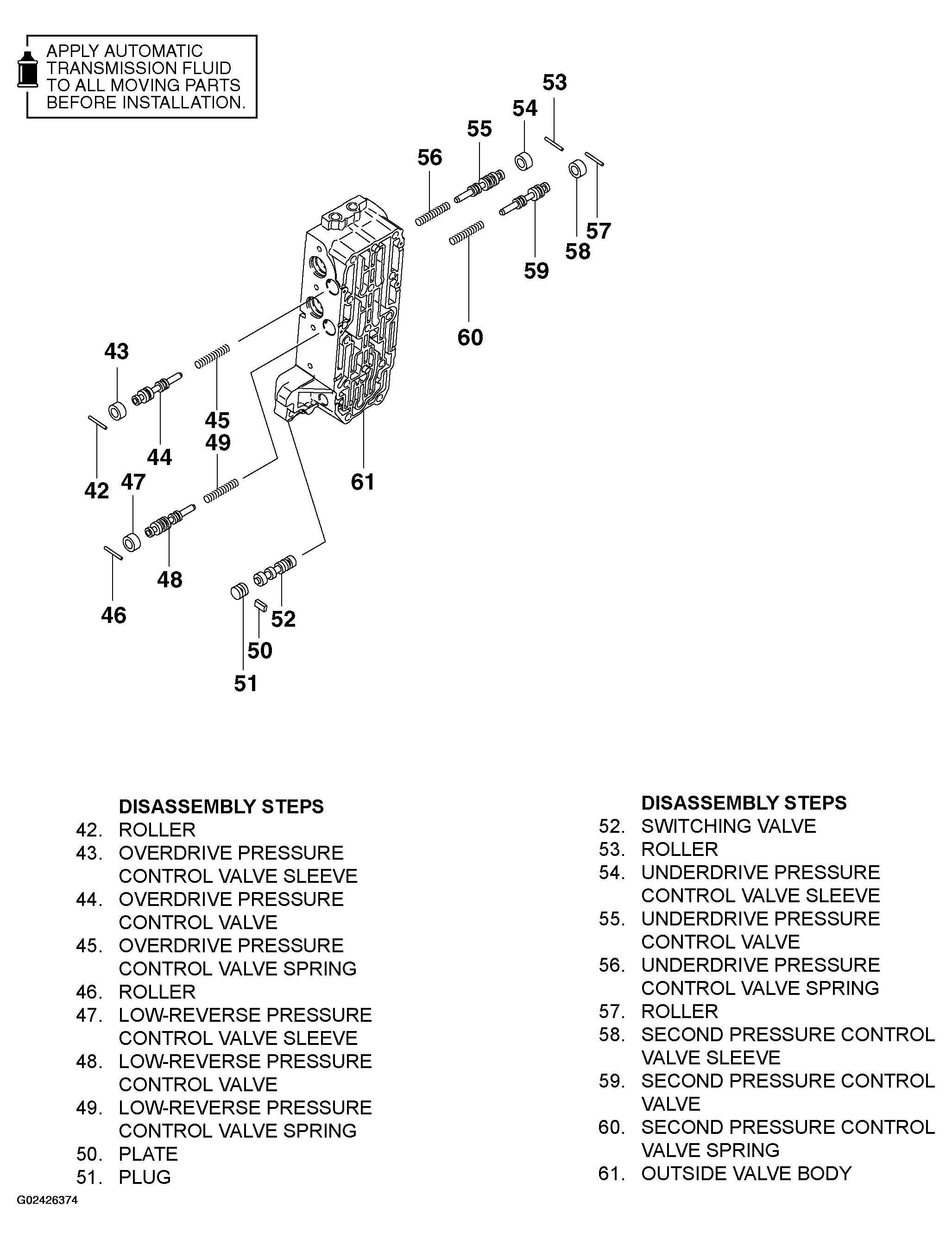

Fig 3: Disassembling/Assembling Valve Body (3 Of 3)
G02426374Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
