Key Reminder Switch Check

  1. Disconnect key reminder switch connector C-310 without removing the key reminder switch and steering lock cylinder.
  2. Check for continuity between terminal 4 and terminal 6.
    TESTER CONNECTION & SPECIFIED CONDITION

    STATUS OF IGNITION KEY TESTER CONNECTION SPECIFIED CONDITION
    Removed 4-6 Less than 2 ohms
    Inserted 4-6 Open circuit

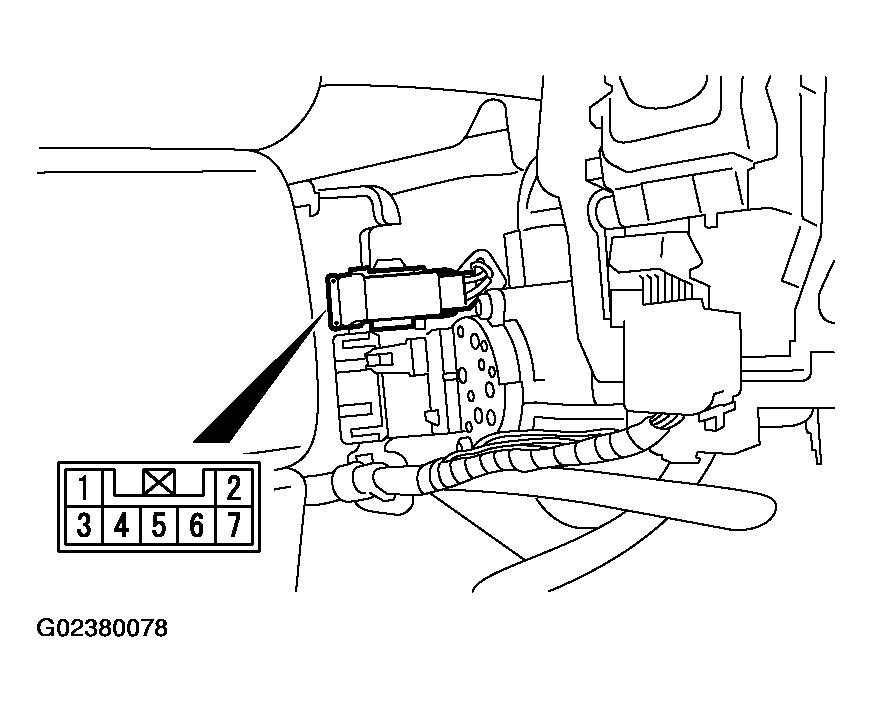

    Fig 1: Disconnecting Key Reminder Switch Connector C-310
    G02380078Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
