Removal And Installation

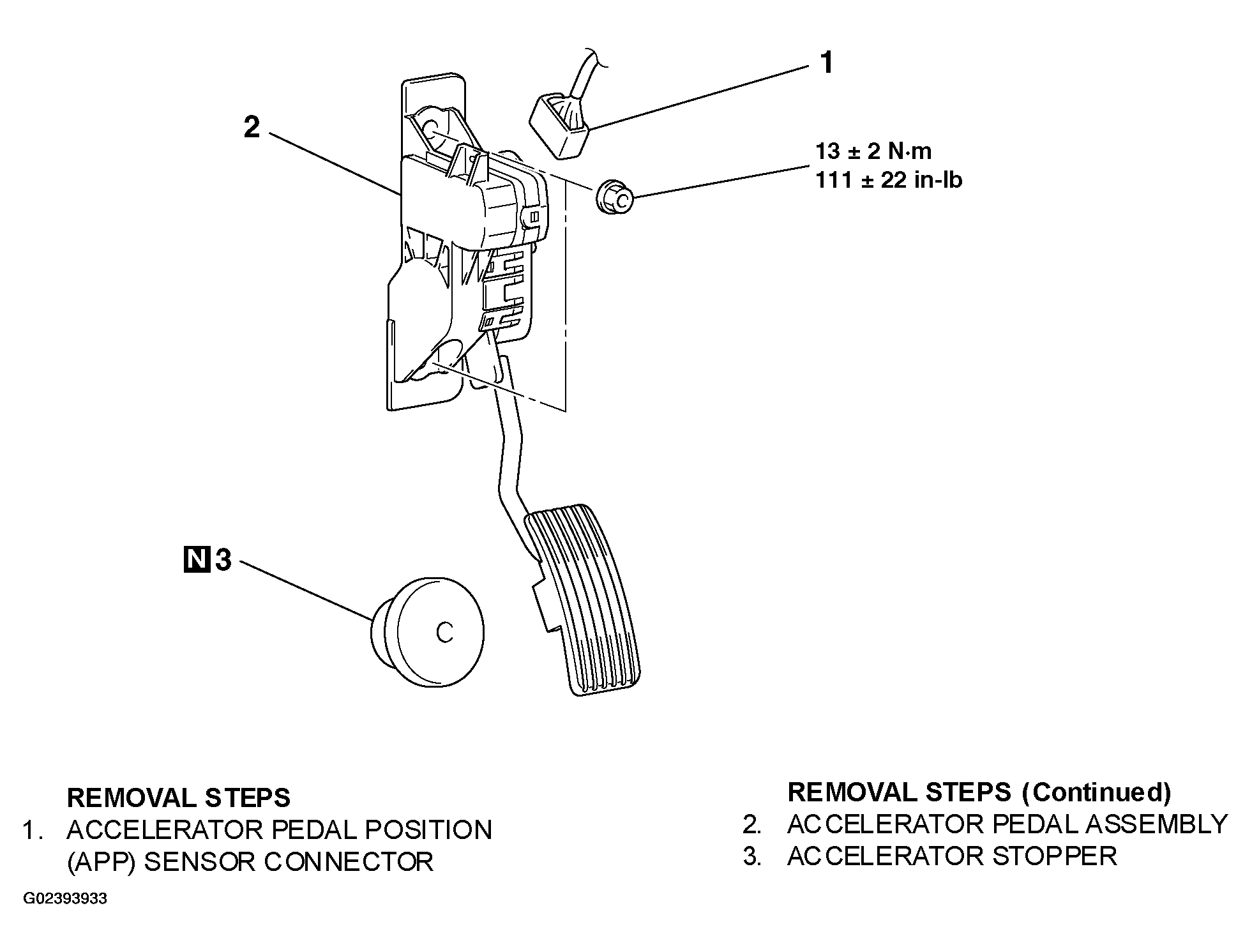

Fig 1: Identifying Accelerator Pedal
G02393933Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
