Combination Meter Terminal Check

Measure the voltage between terminals using a voltmeter.

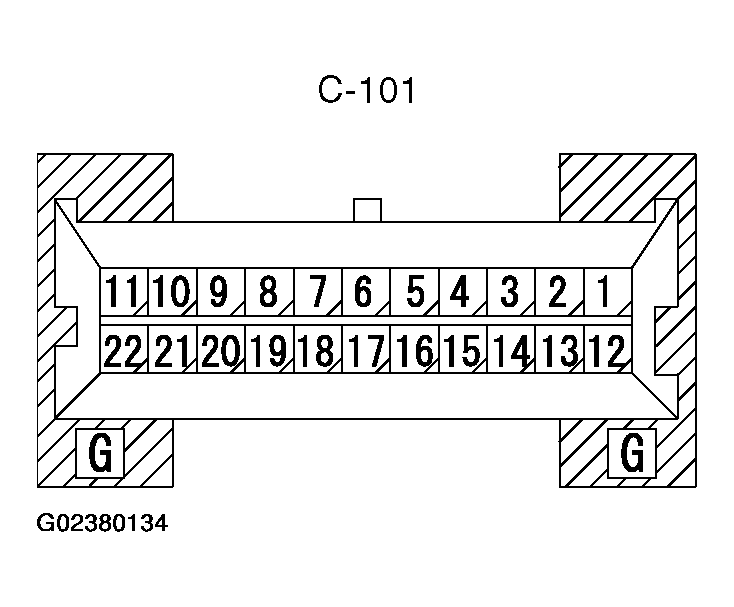

Fig 1: Identifying Combination Meter Connector (Component Side)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The combination meter connector is fixed on the instrument panel directly, so you can not take measurement by backprobing.

CAUTION: Never take a measurement at terminals 14 and 15. If you do this, the CAN bus lines will be impaired.

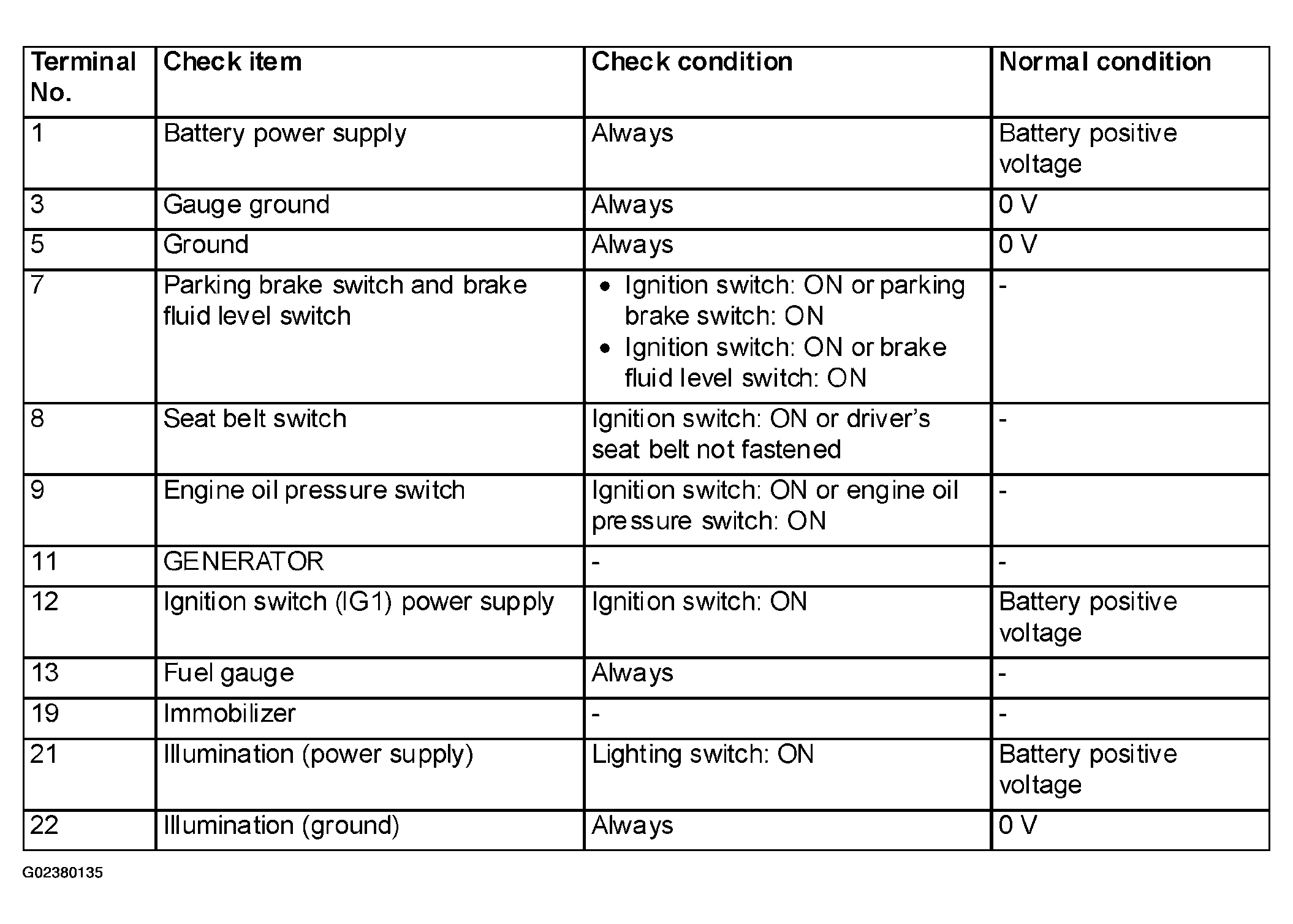

Fig 2: Terminal No. & Condition Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
