Fuel Level Sensor Float Height

Move the float and measure height A at point "F" (highest) and B at point "E" (lowest).
If any check is not correct, replace the fuel pump module or fuel level sensor (sub).

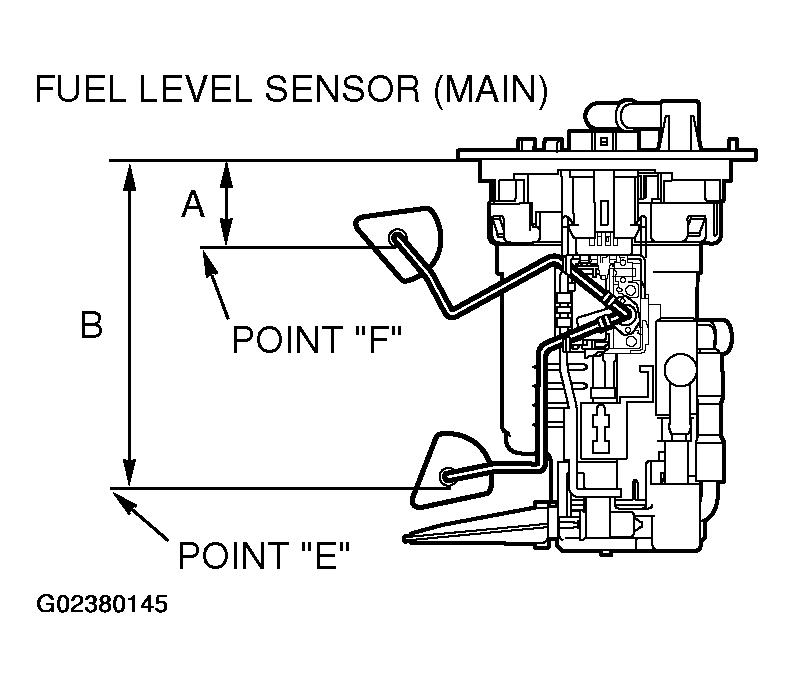

Fig 1: Identifying Fuel Level Sensor Float Specifications (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

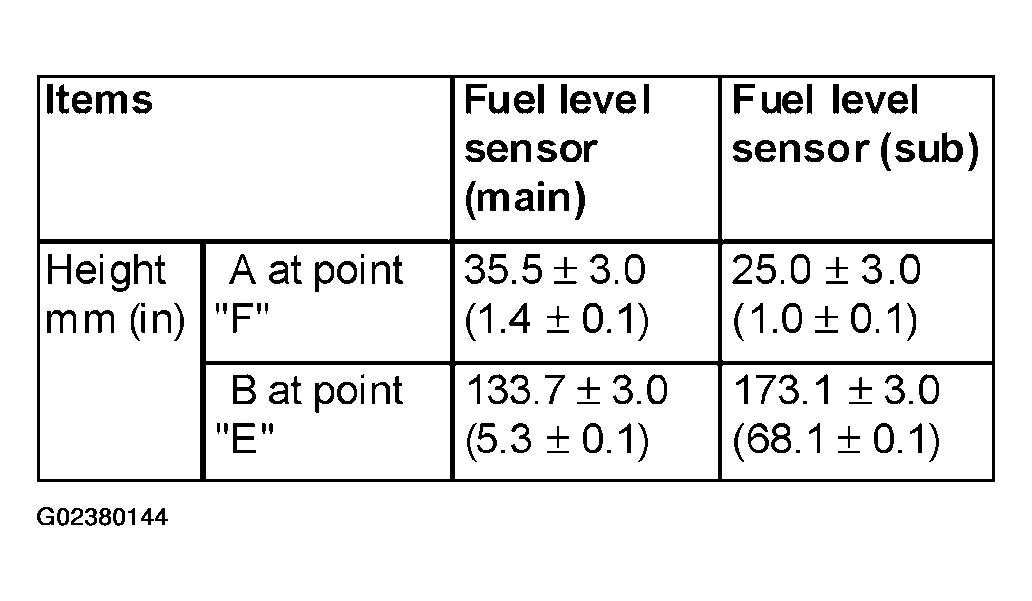

Fig 2: Identifying Fuel Level Sensor Float Specifications (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

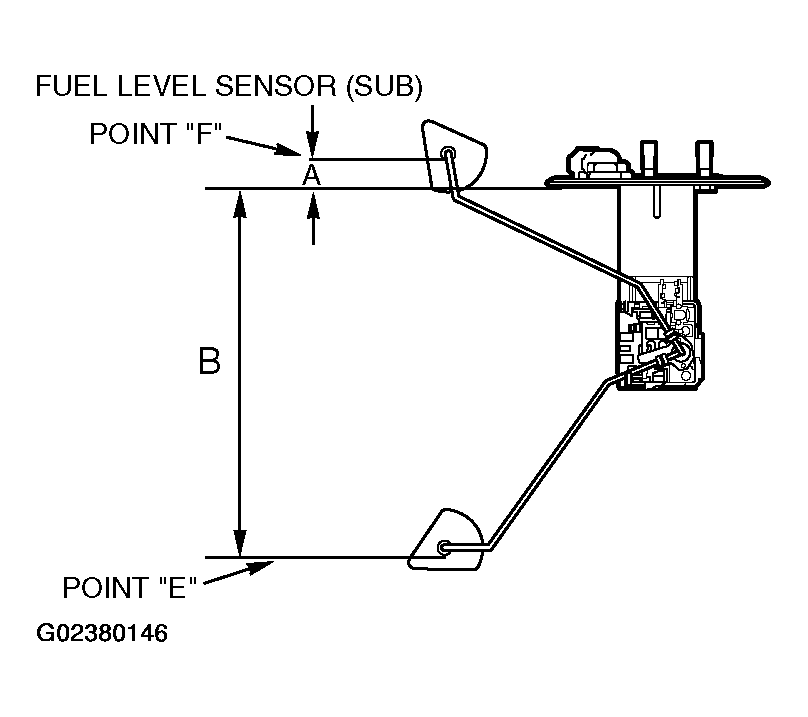

Fig 3: Identifying Fuel Level Sensor Float Specifications (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
