Home >> Mitsubishi >> 2005 >> Galant LS >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Headlining >> Removal And Installation >> Notes

Removal And Installation: Notes

WARNING: When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to ON-VEHICLE SERVICE ).

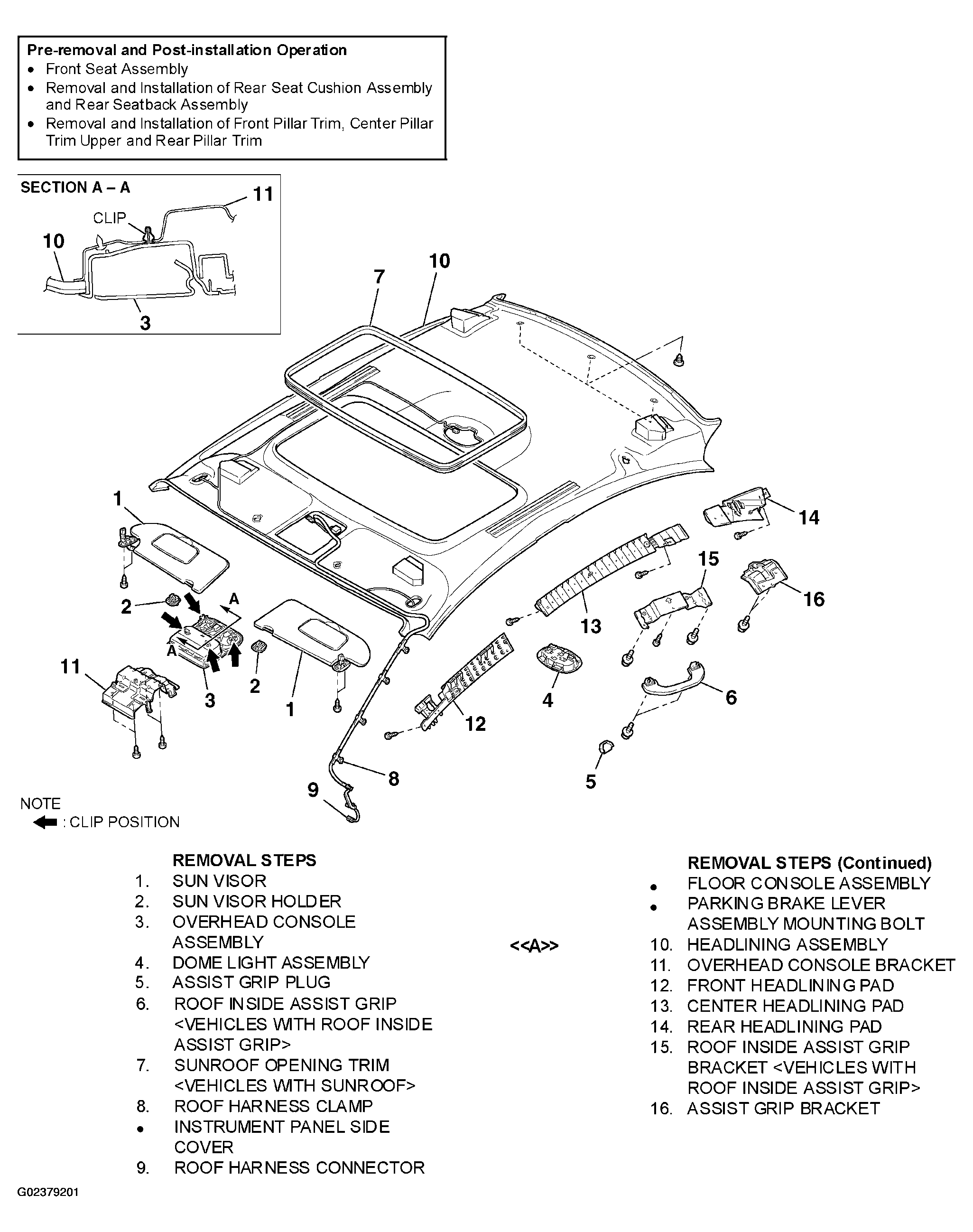

Fig 1: Exploded View Of Headlining
G02379201Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
