Disassembly And Assembly: Notes

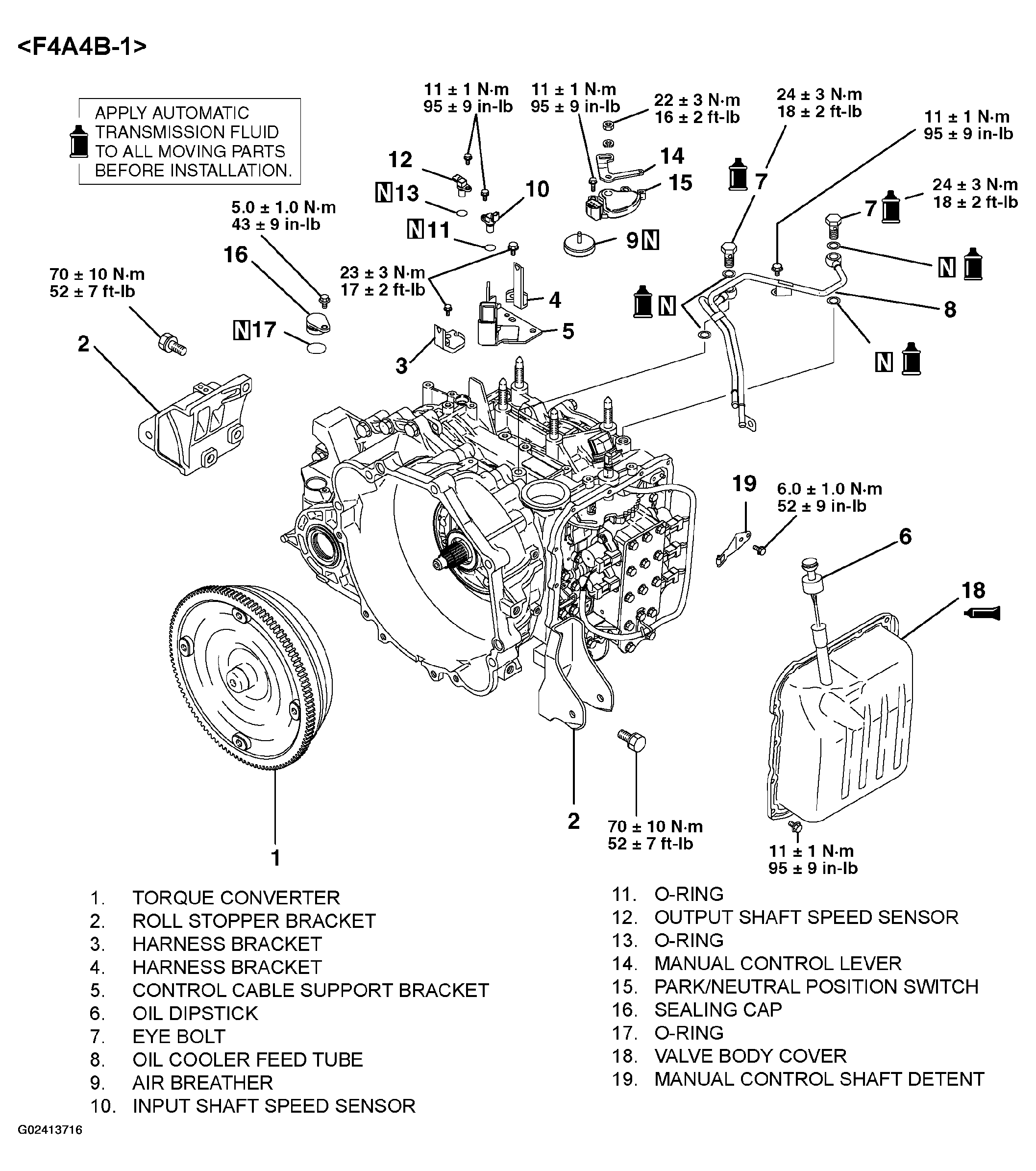

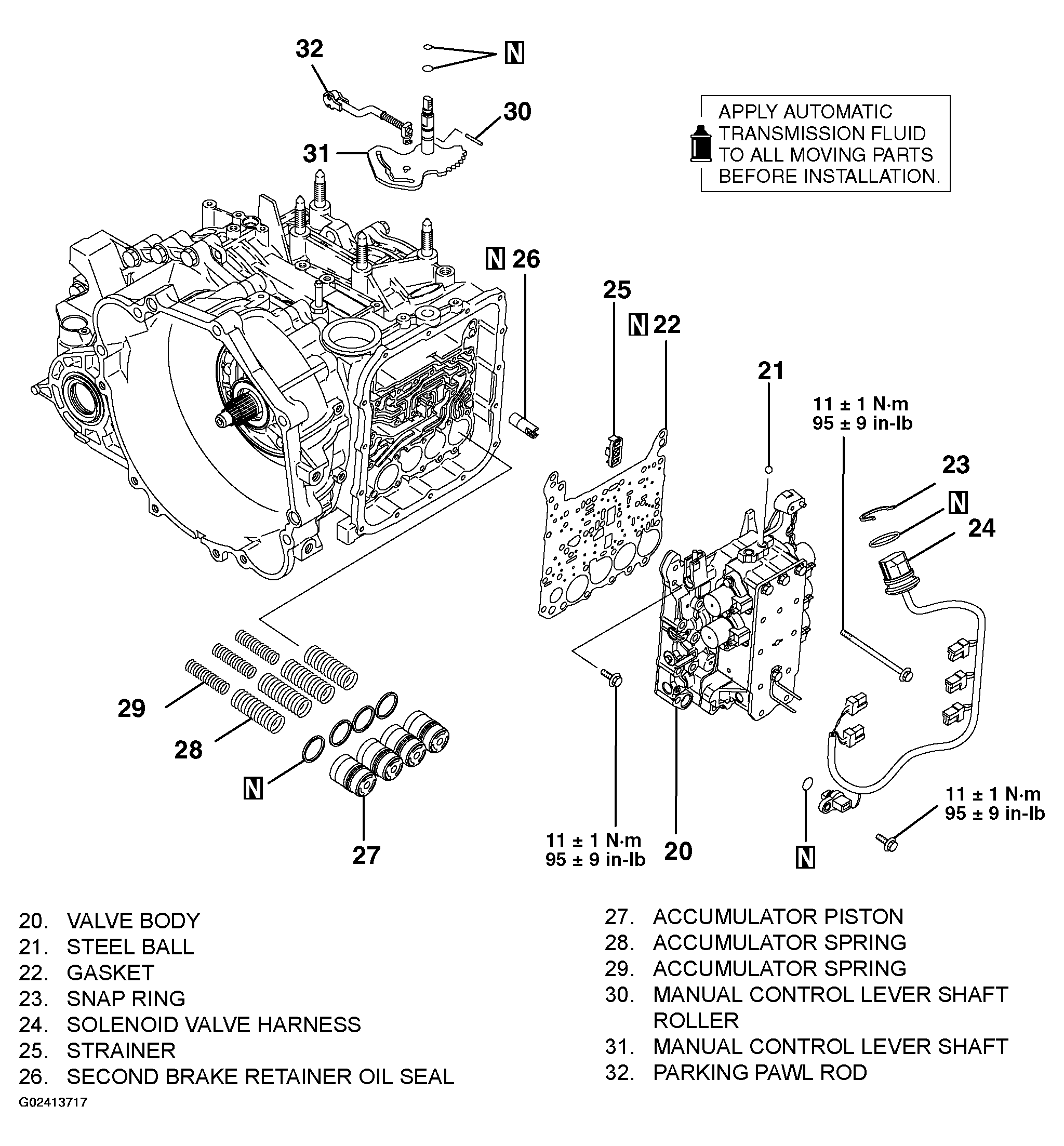

Fig 1: Exploded View Of Transaxle (F4A4B-1) (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

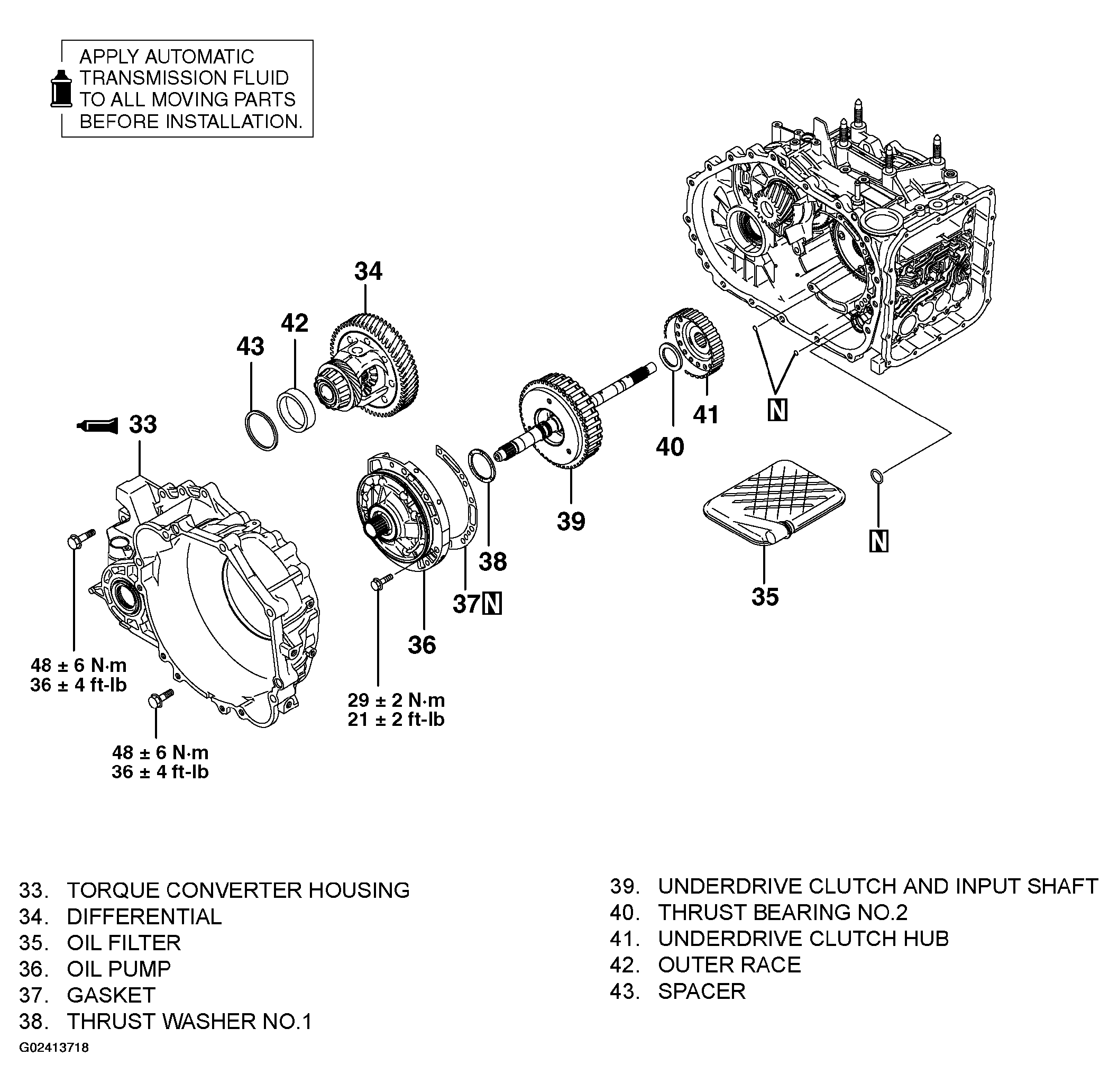

Fig 2: Exploded View Of Transaxle (F4A4B-1) (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

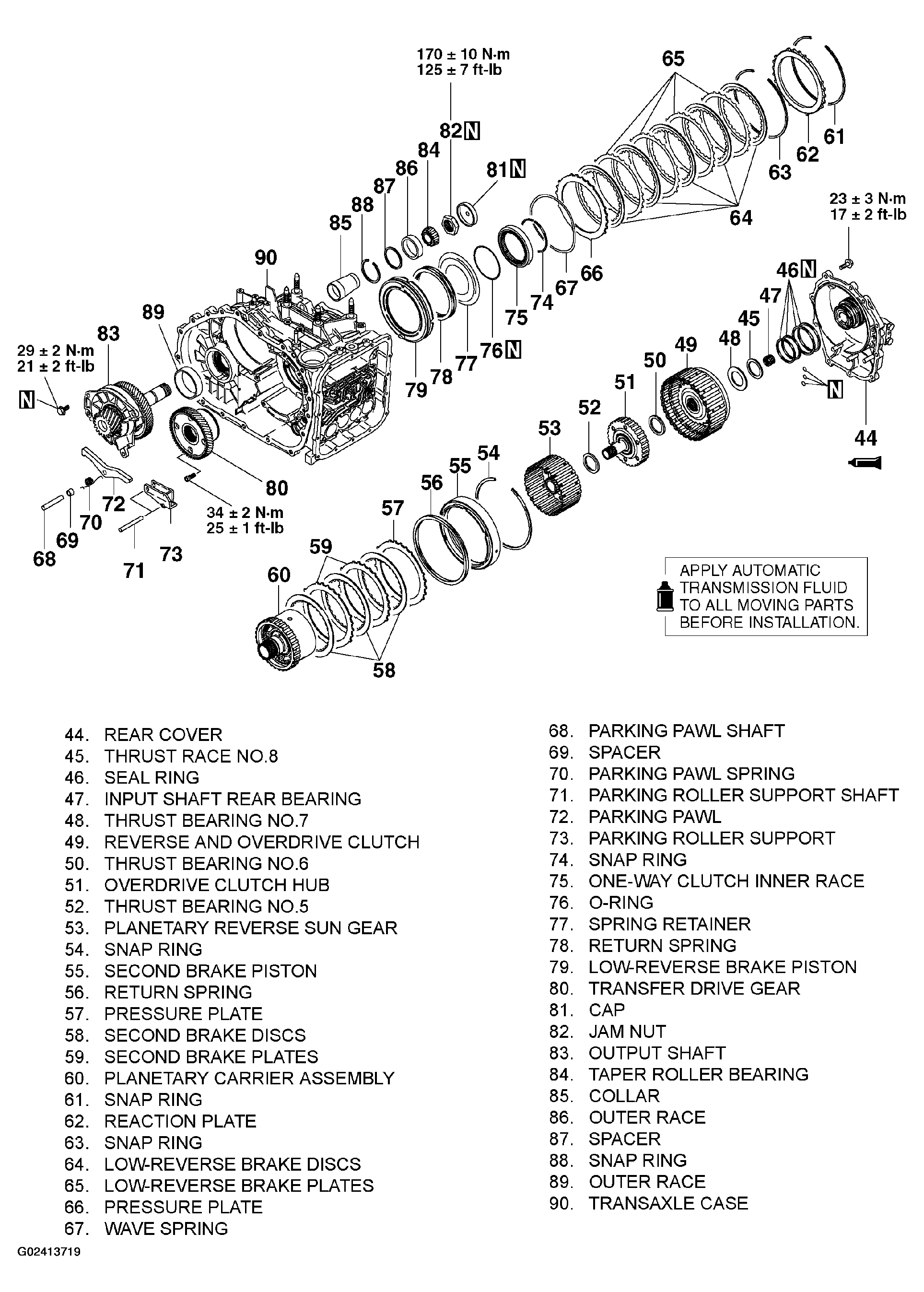

Fig 3: Exploded View Of Transaxle (F4A4B-1) (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Exploded View Of Transaxle (F4A4B-1) (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

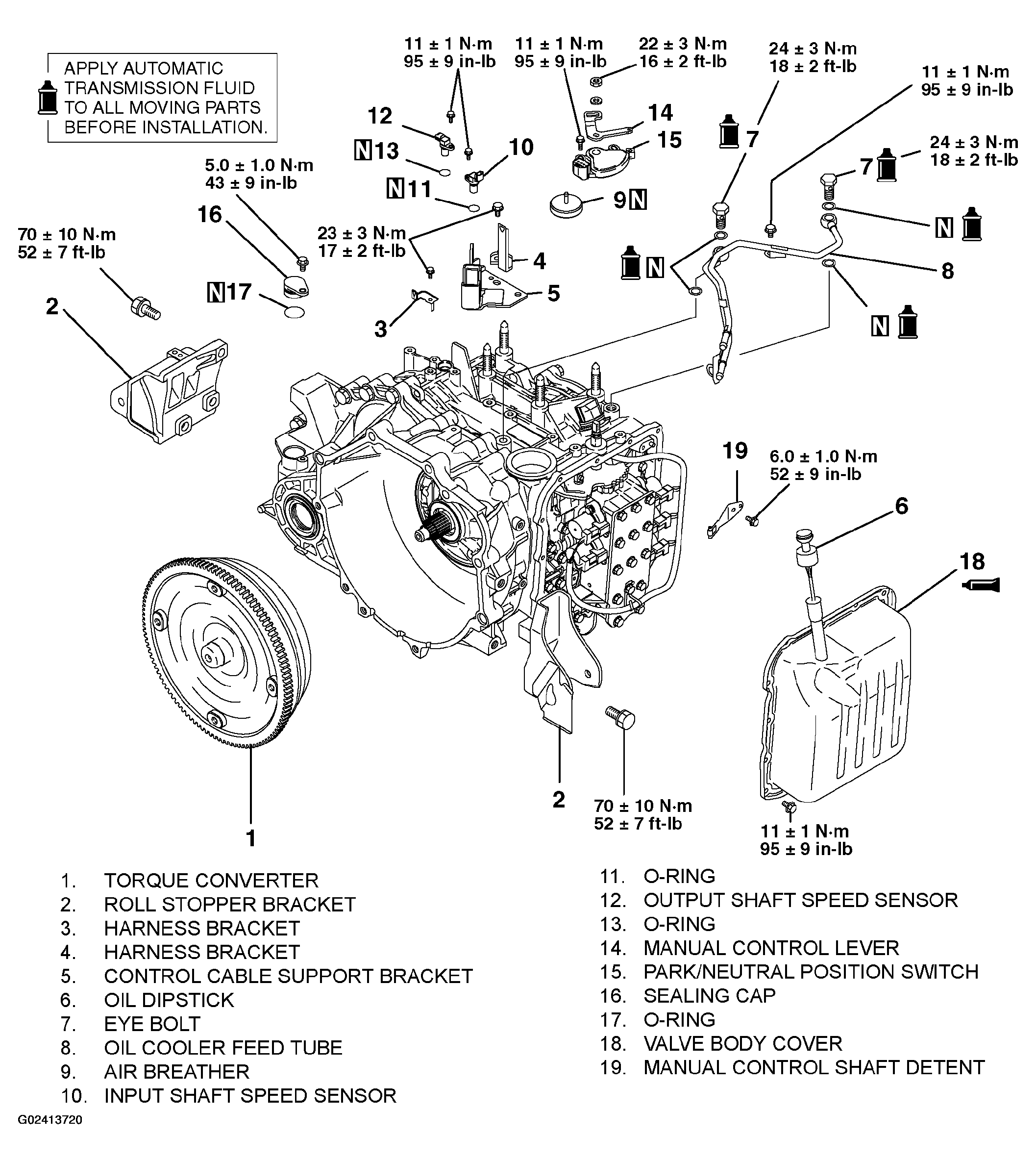

Fig 5: Exploded View Of Transaxle (F4A4B-4) (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

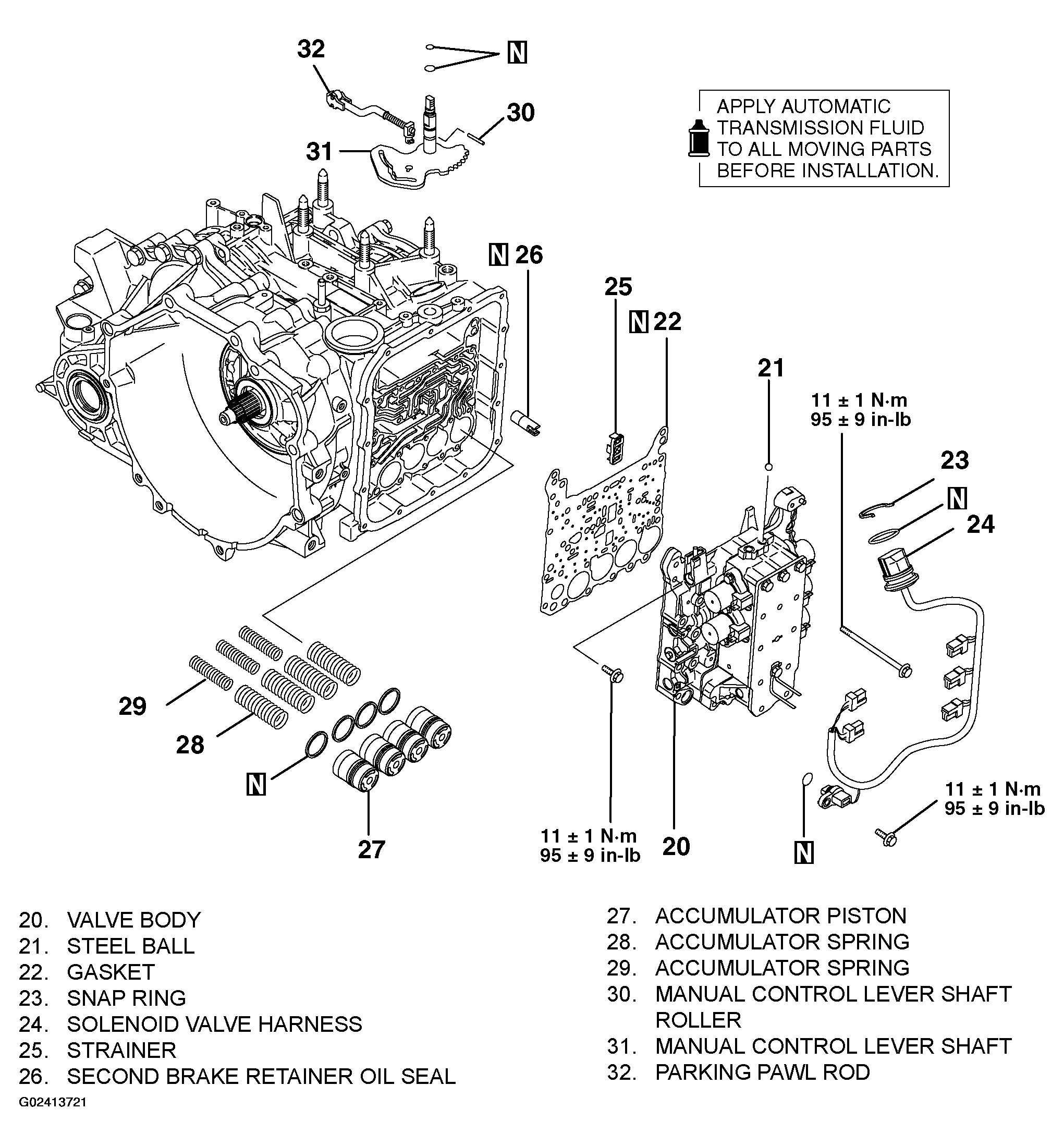

Fig 6: Exploded View Of Transaxle (F4A4B-4) (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

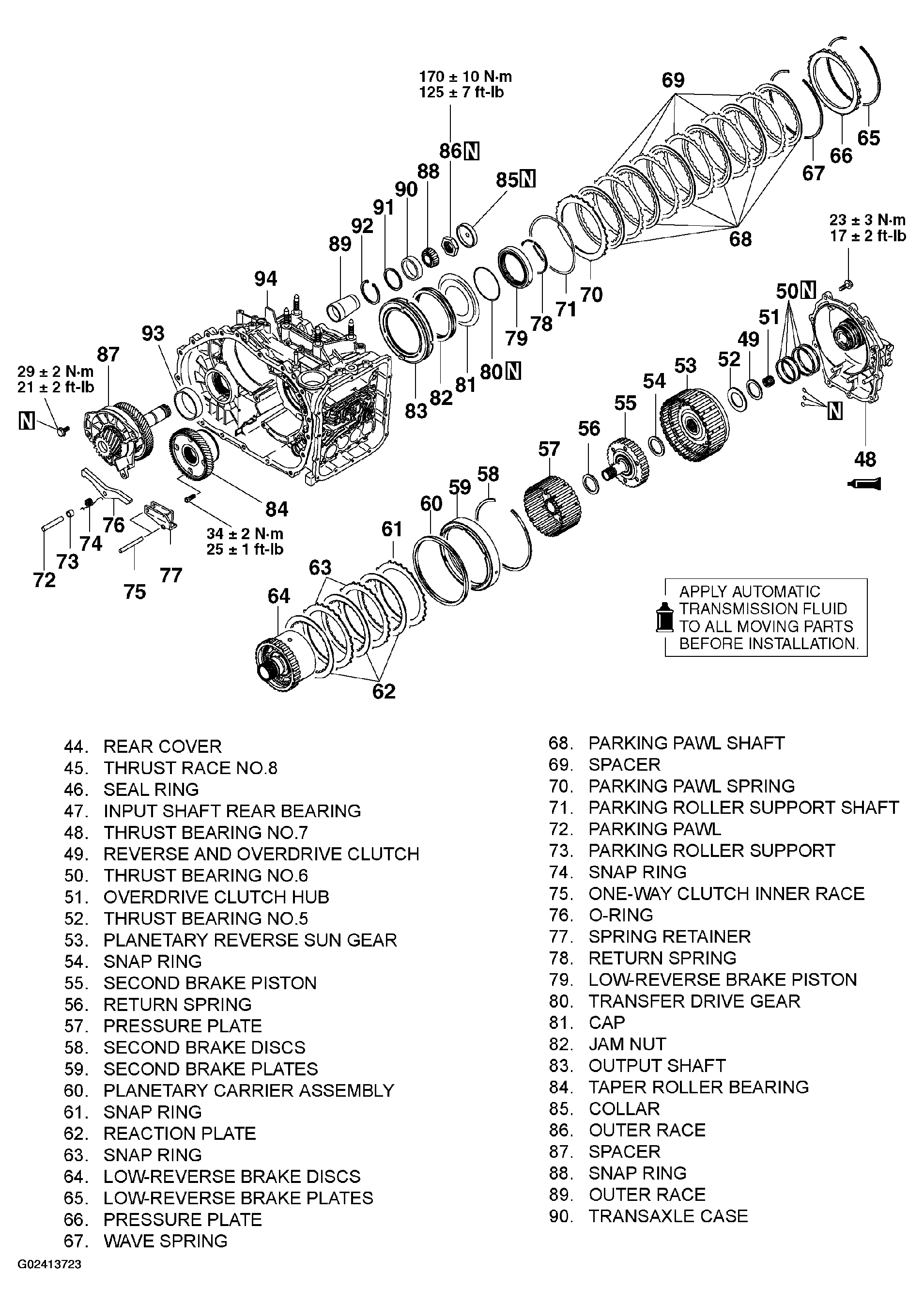

Fig 7: Exploded View Of Transaxle (F4A4B-4) (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Exploded View Of Transaxle (F4A4B-4) (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
