Turn-Signal Light

The turn-signal light output (flashing signal) is turned ON when the turn-signal light ignition switch is ON and the turn-signal light switch is ON (LH or RH.) If the front turn-signal light or rear turn-signal light bulb has burned out, the flashing speed increases to indicate that the bulb has burned out.

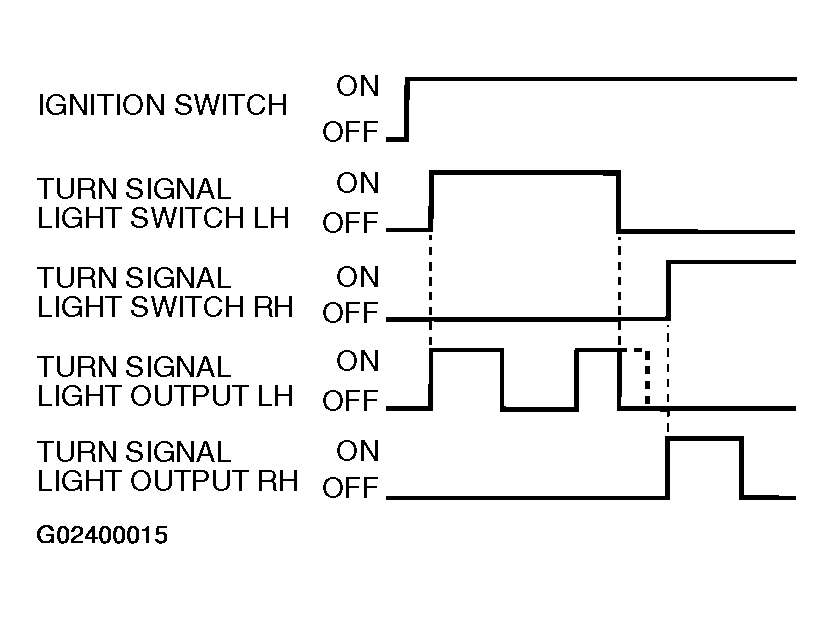

Fig 1: Turn-Signal Light Output Chart (Flashing Signal)
G02400015Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
