Home >> Mitsubishi >> 2005 >> Lancer Evolution >> Repair and Diagnosis >> Transmission >> Manual Trans >> Overhaul -- Evolution >> Control Housing >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

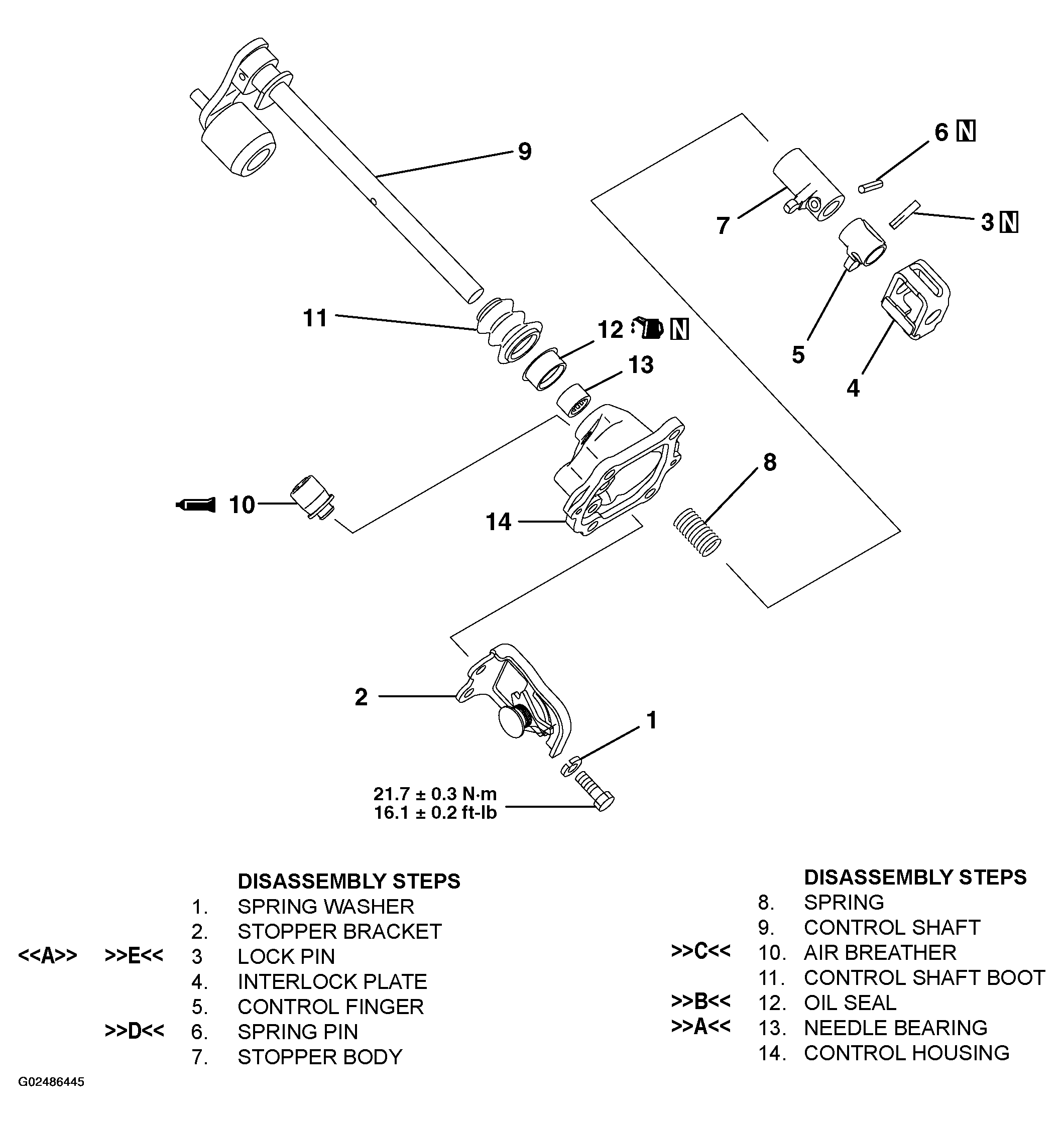

Fig 1: Disassembling/Assembling Control Housing
G02486445Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
