Standard Waveform

STANDARD GENERATOR WAVEFORM

FUNCTION	SPECIAL PATTERNS
Pattern height	Variable
Variable knob	Adjust while viewing the wave pattern
Pattern selector	Raster
Engine revolutions	Curb idle speed

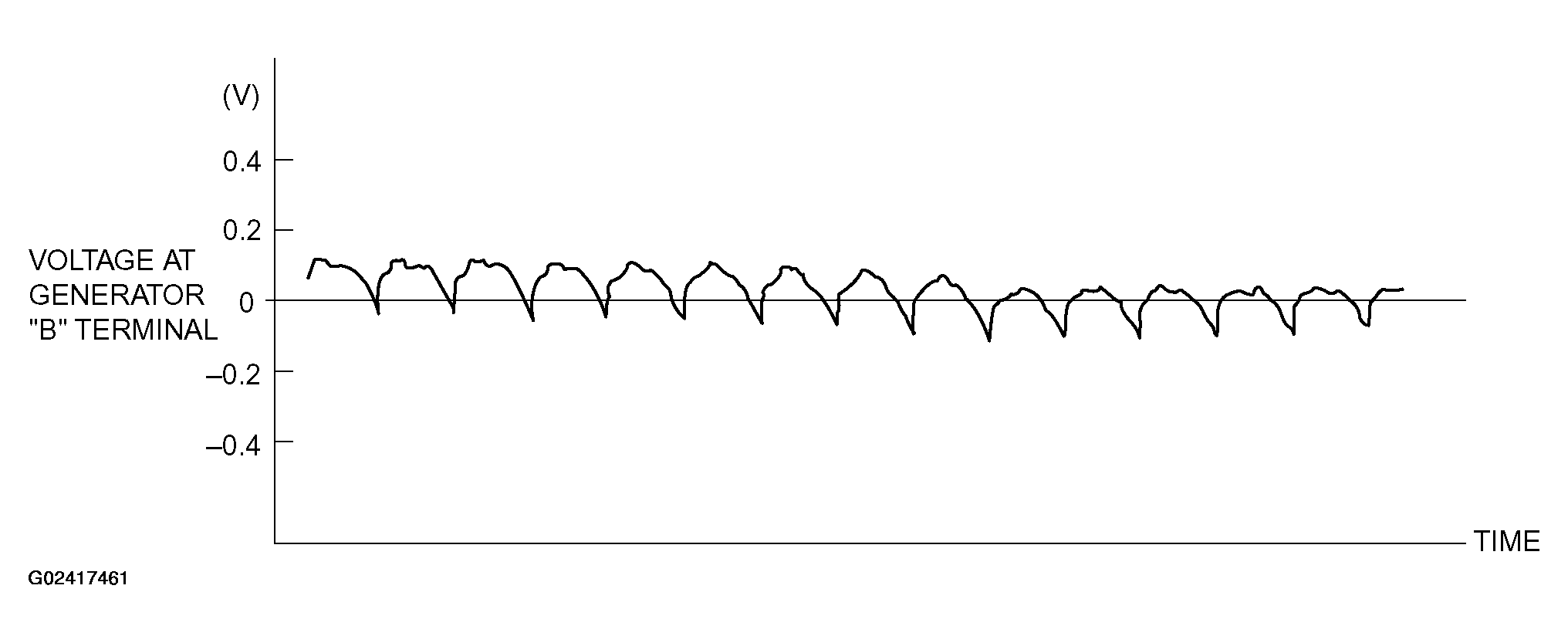

Fig 1: Identifying Standard Generator Waveform

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The voltage waveform of the generator "B" terminal can undulate as shown in Fig 2 . This waveform is produced when the regulator operates according to fluctuations in the generator load (current), and is normal for the generator.

If the ripple height is abnormally high (approximately 2 V or more during idling), the wires between the generator "B" terminal and the battery have broken due to fuse blowing, etc. The generator is usually operating properly .

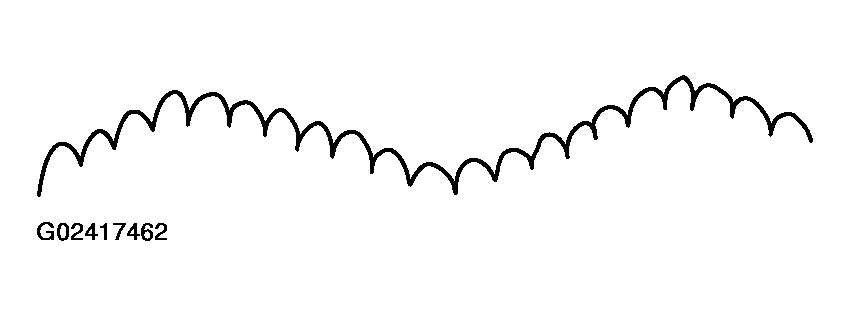

Fig 2: Identifying Normal Voltage Waveform Of Generator

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
