Removal And Installation: Notes

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in AIR BAG MODULE AND CLOCK SPRING .

The bolts and screws described below are used for installation of the instrument panel. They are indicated by symbols in the illustration.

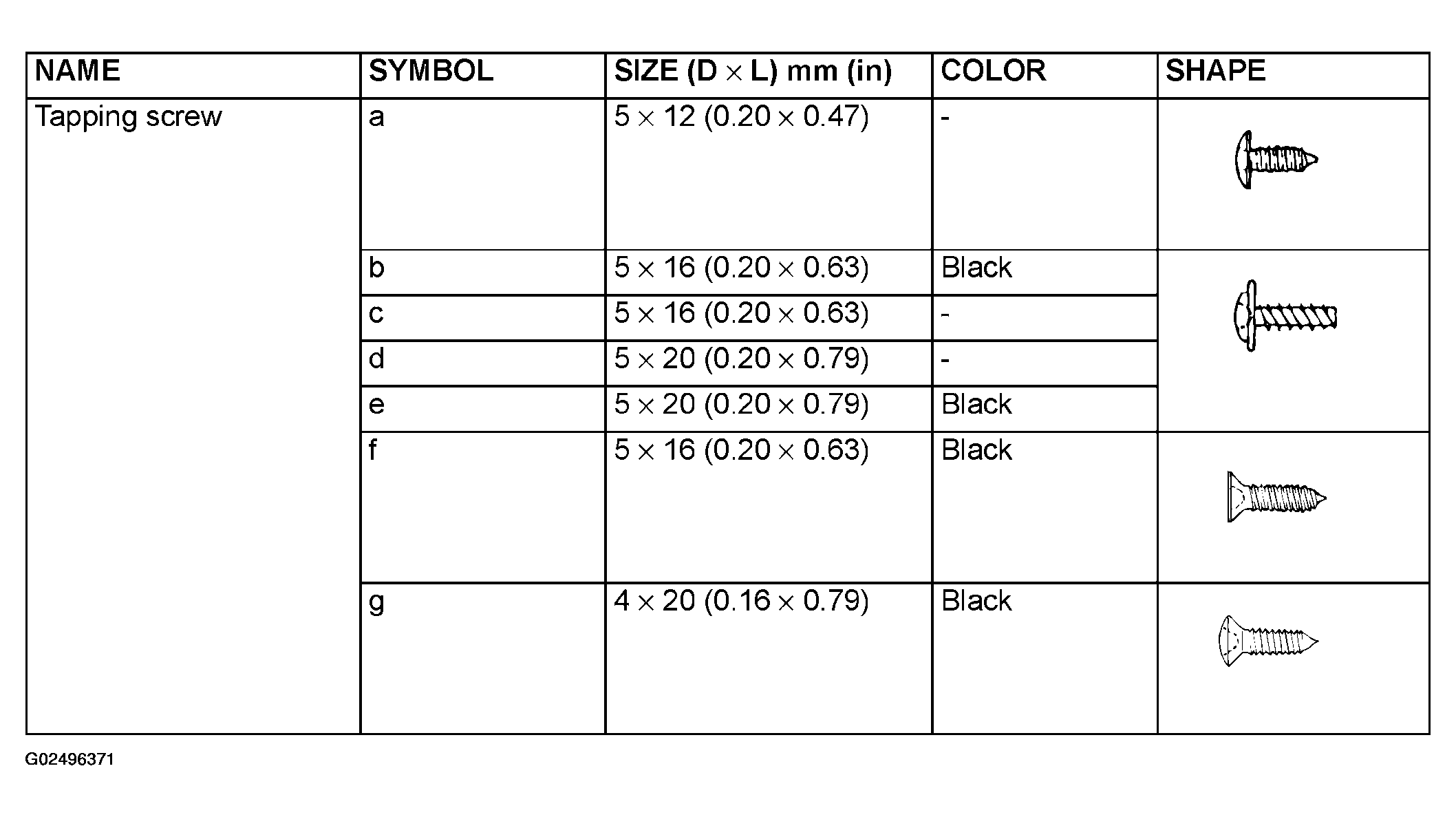

Fig 1: Bolts And Screws Specification (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

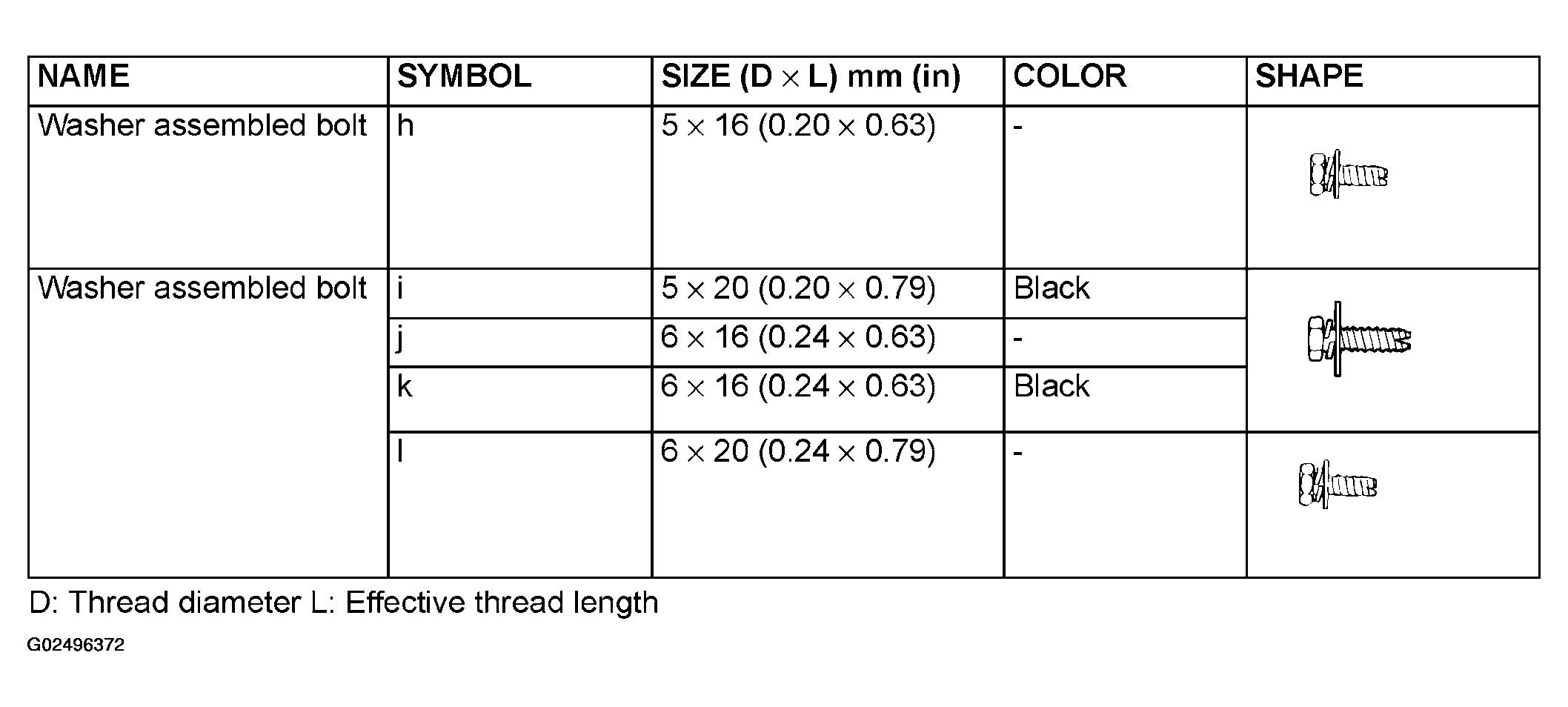

Fig 2: Bolts And Screws Specification (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

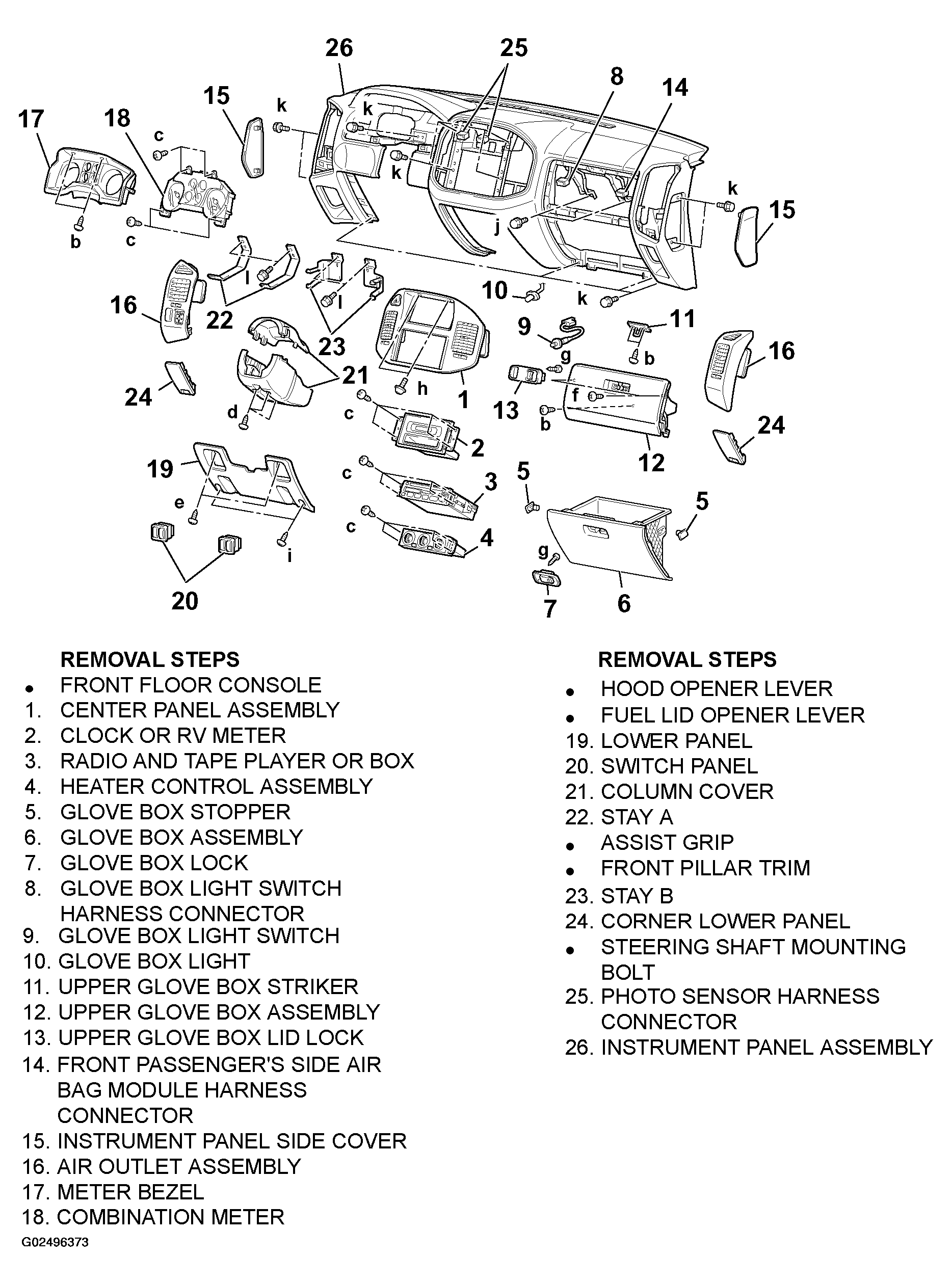

Fig 3: Removing/Installing Instrument Panel Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
