Home >> Mitsubishi >> 2005 >> Montero >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> OUTPUTSHAFT Support >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

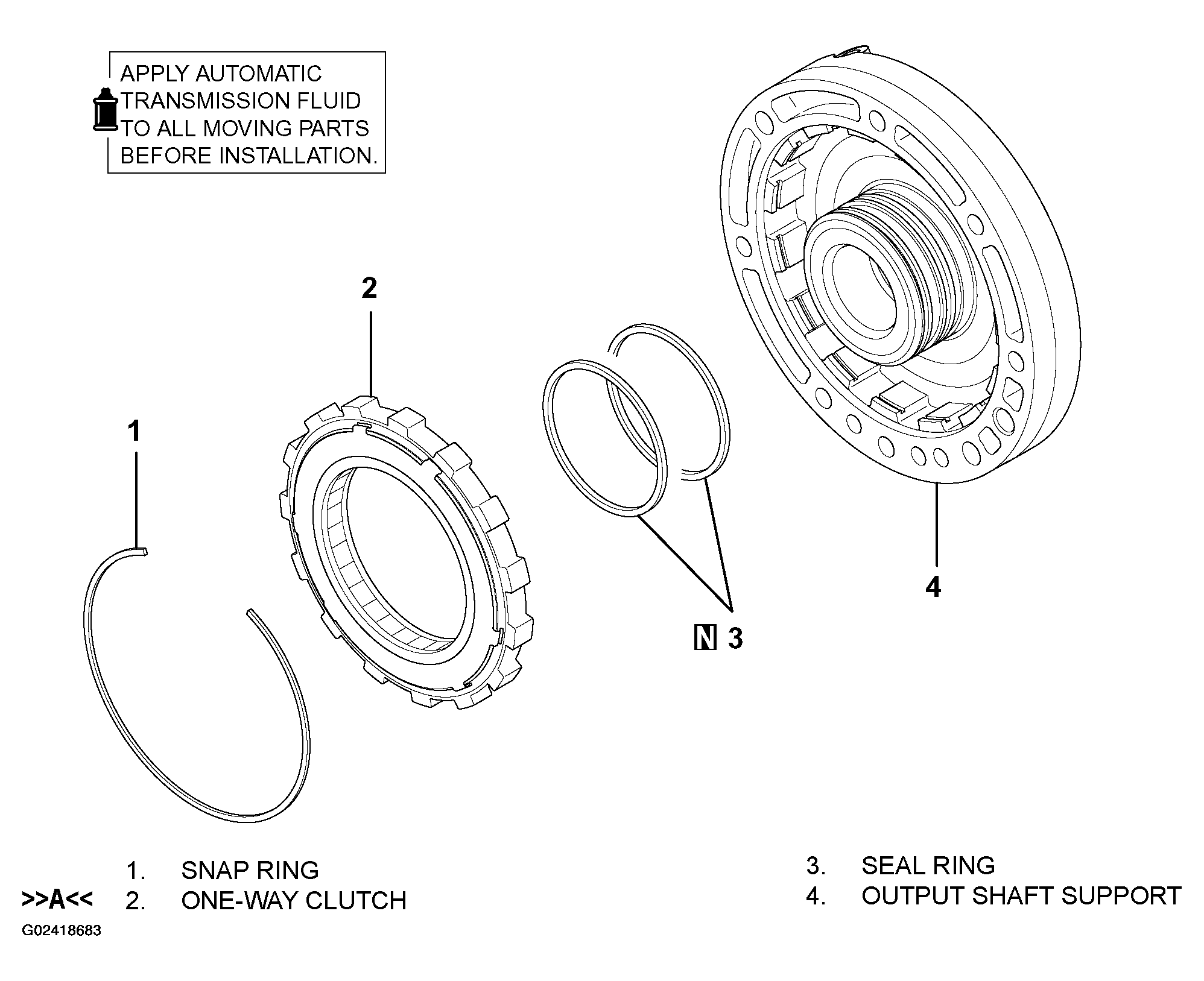

Fig 1: Exploded View Of Outputshaft Support
G02418683Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
