Stator Check

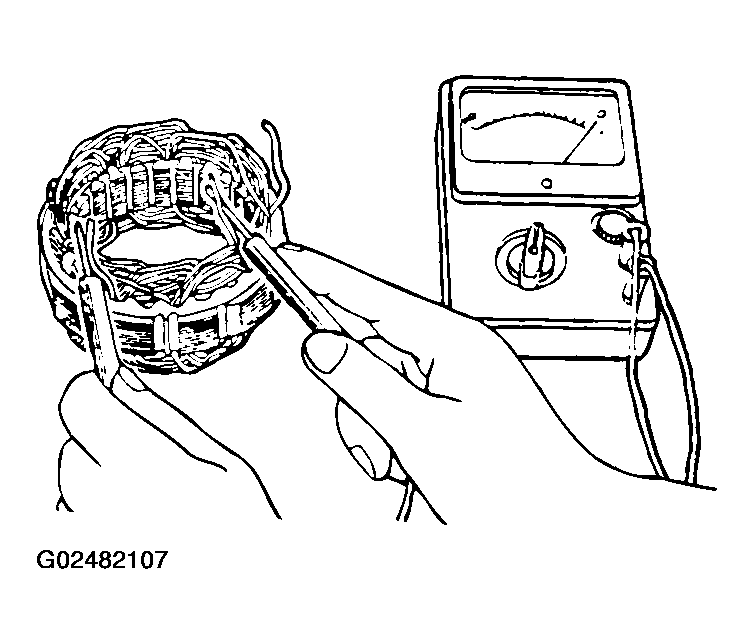

Check for continuity between the coil lead. If there is no continuity, replace the stator.

Fig 1: Checking Continuity Between Coil Lead
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

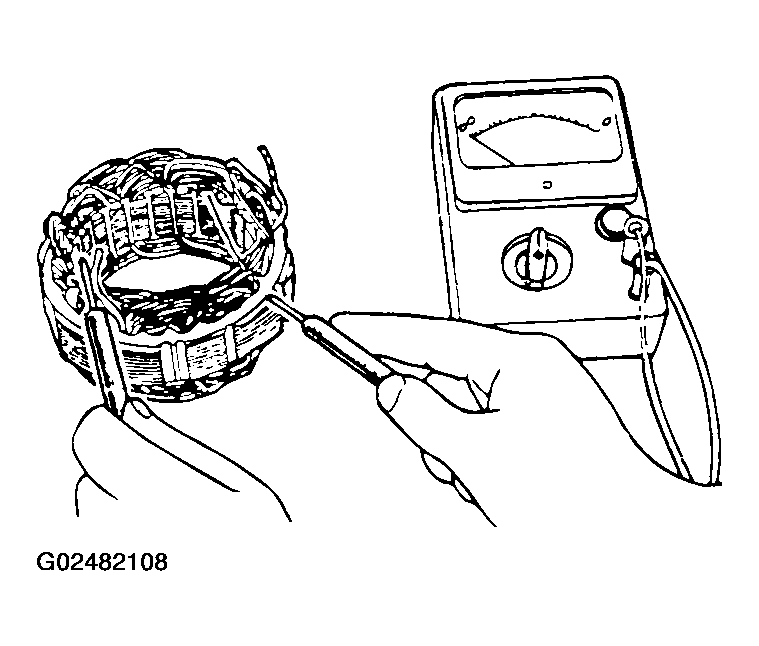

Check for continuity between the coil and the core. If there is continuity, replace the stator.

Fig 2: Checking Continuity Between Coil And Core
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
