lemon-mirror
:
Home
>>
Mitsubishi
>>
2005
>>
Outlander XLS, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
Generator Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

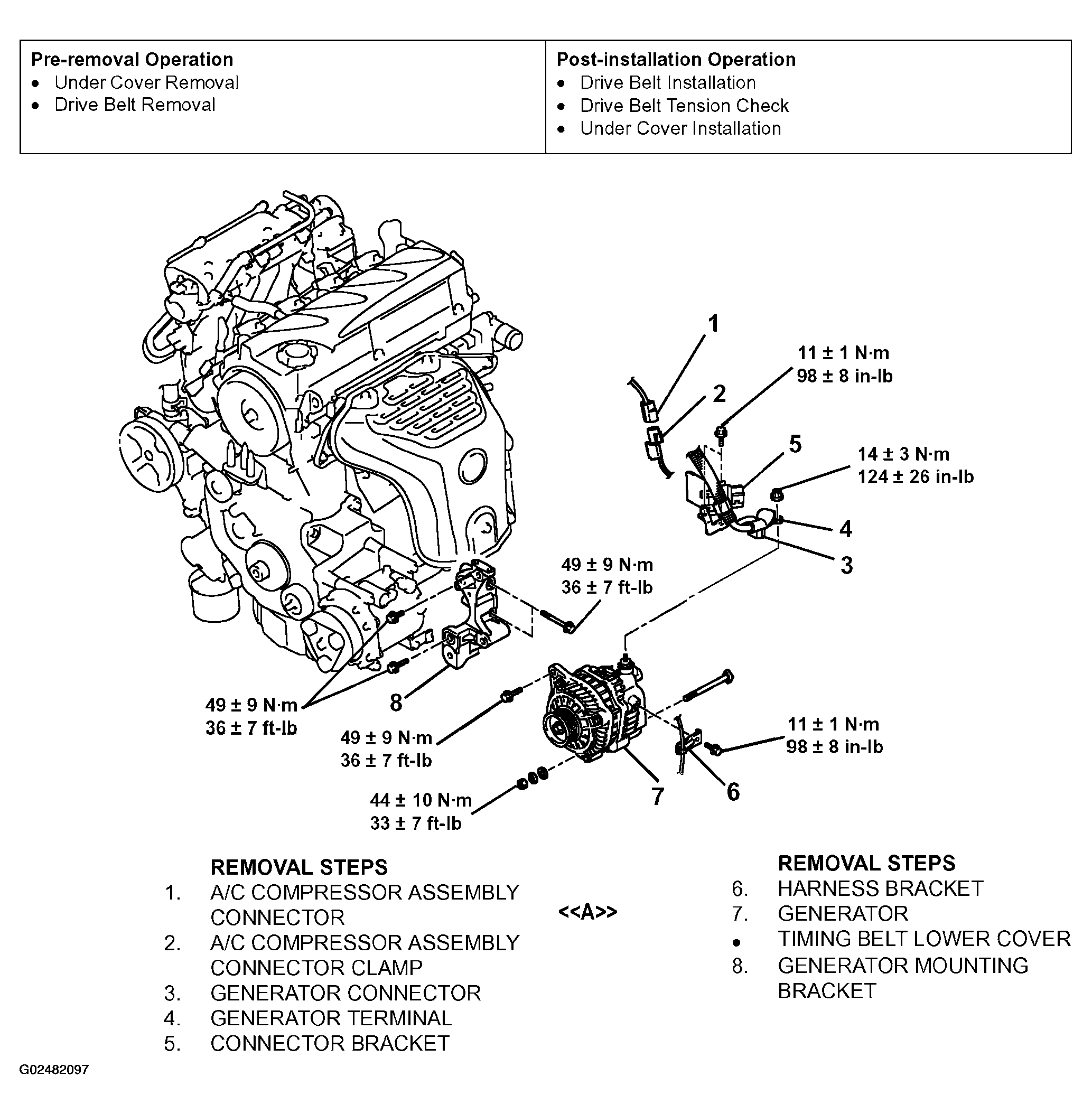

Fig 1: Identifying Generator Assembly Components (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
