Home >> Mitsubishi >> 2005 >> Outlander XLS, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control >> Accelerator Cable And Pedal >> Removal And Installation >> Notes

Removal And Installation: Notes

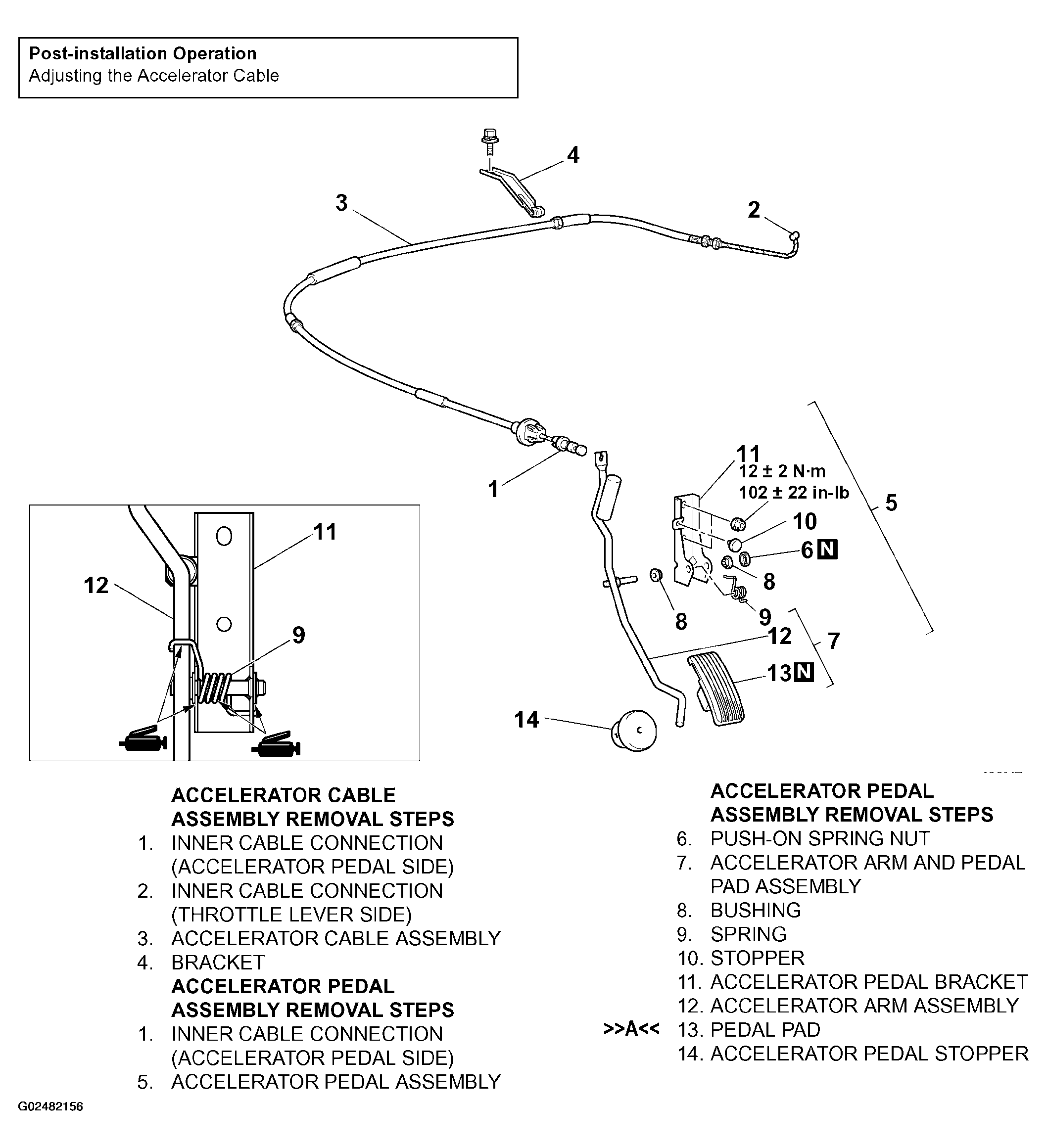

Fig 1: Removing And Installing Accelerator Cable And Pedal
G02482156Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
