Removal And Installation: Notes

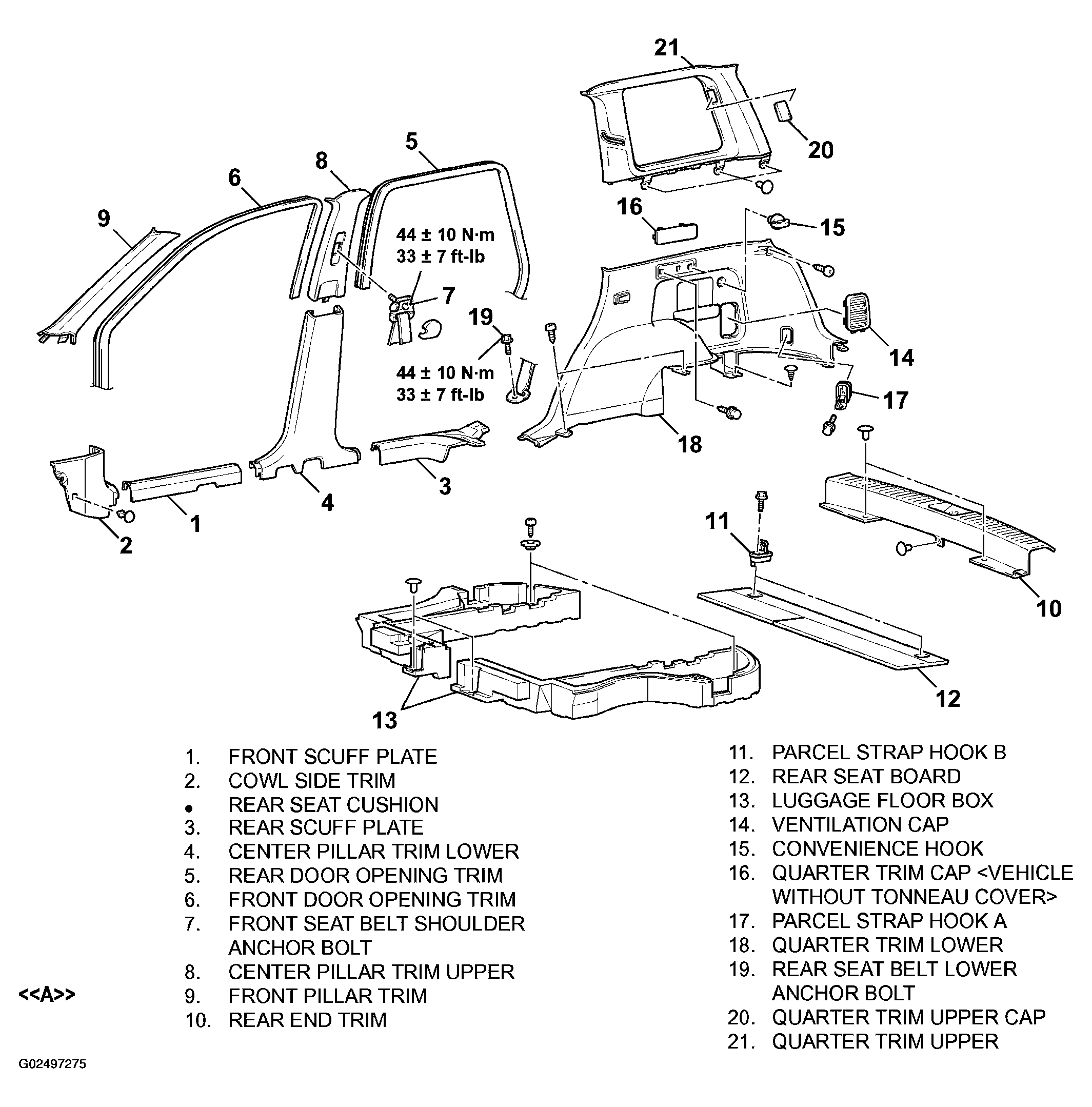

Fig 1: Removing/Installing Trims
G02497275Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
