Disassembly And Assembly: Notes

< W4A4B >

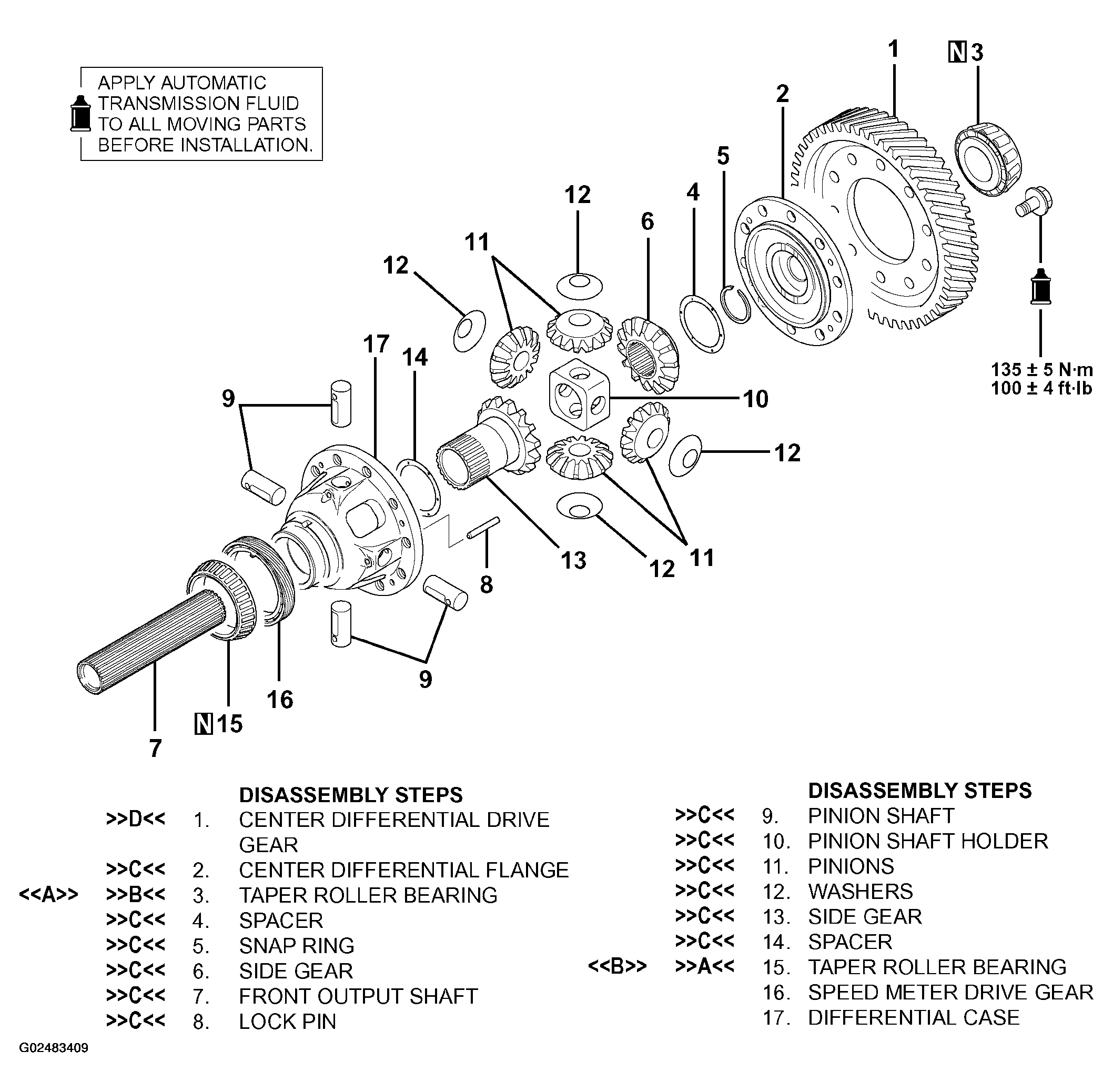

Fig 1: Disassembling/Assembling Center Differential

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990930: Installer Adapter
• MD998812: Installer Cap
• MD998823: Installer Adapter (48)
• MD998830: Installer Adapter (66)
• MD998917: Bearing Remover
