Disassembly And Assembly: Notes

< F4A4B >

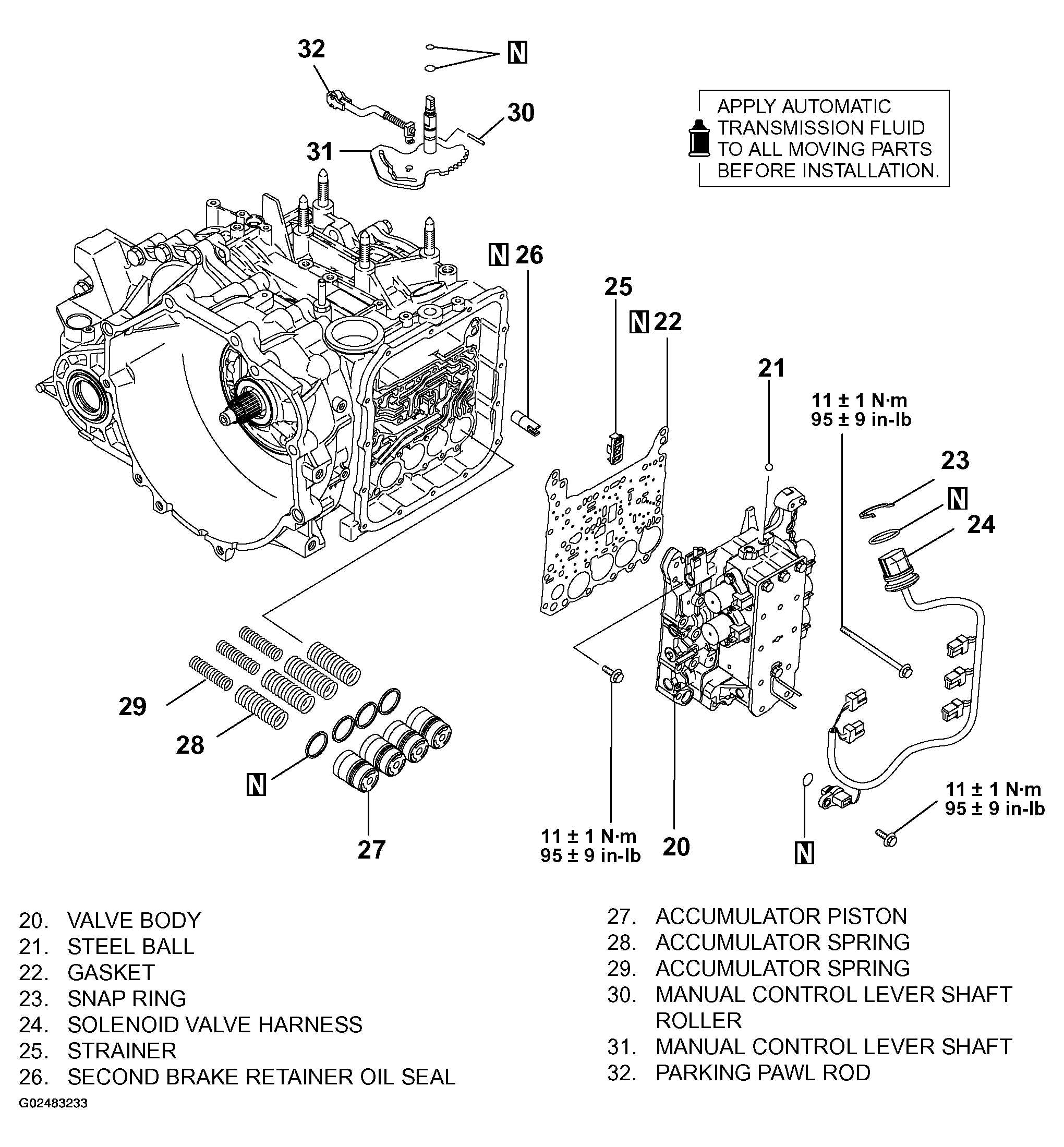

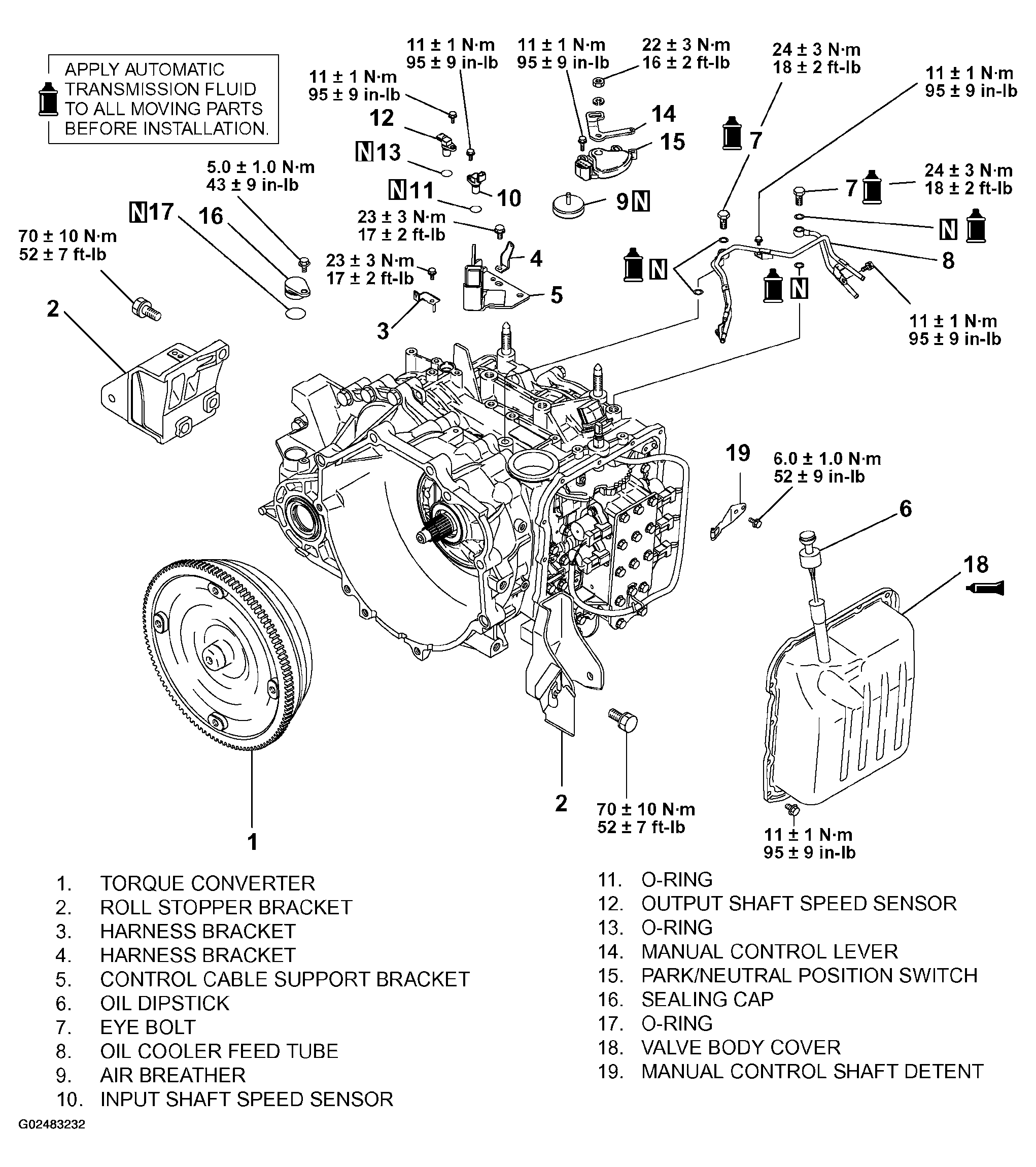

Fig 1: Disassembling/Assembling Transaxle F4A4B (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

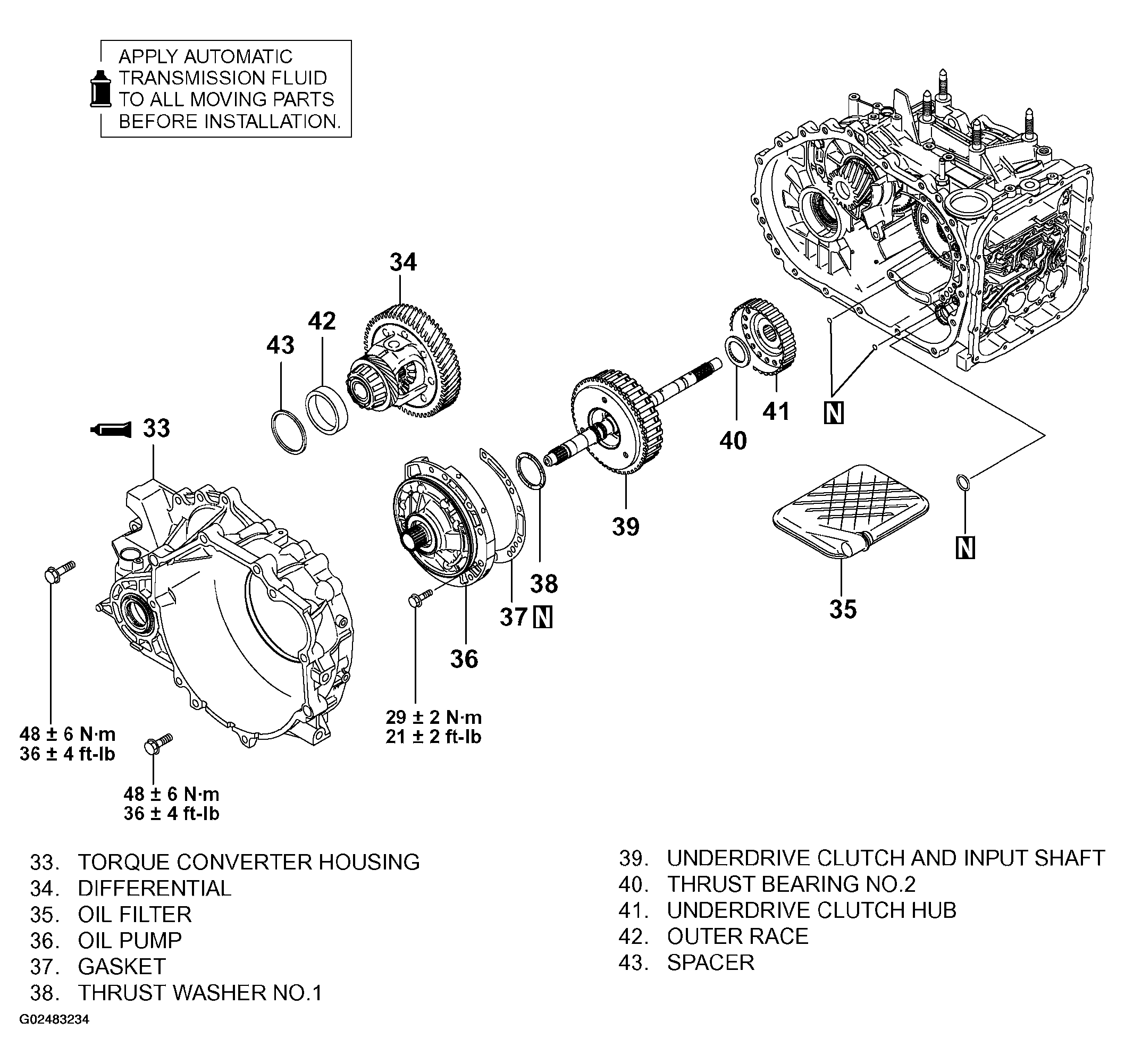

Fig 2: Disassembling/Assembling Transaxle F4A4B (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Disassembling/Assembling Transaxle F4A4B (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Disassembling/Assembling Transaxle F4A4B (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

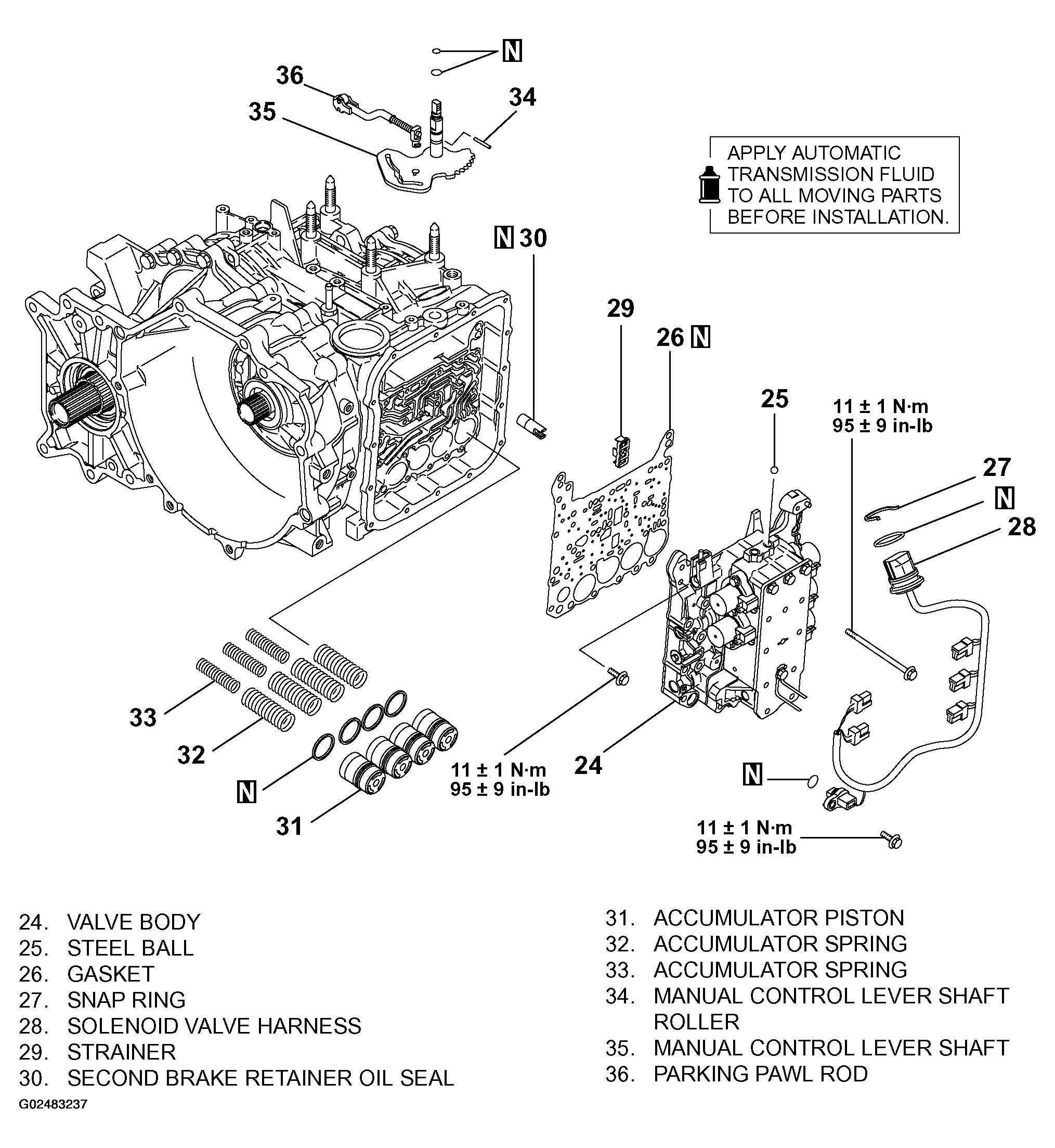

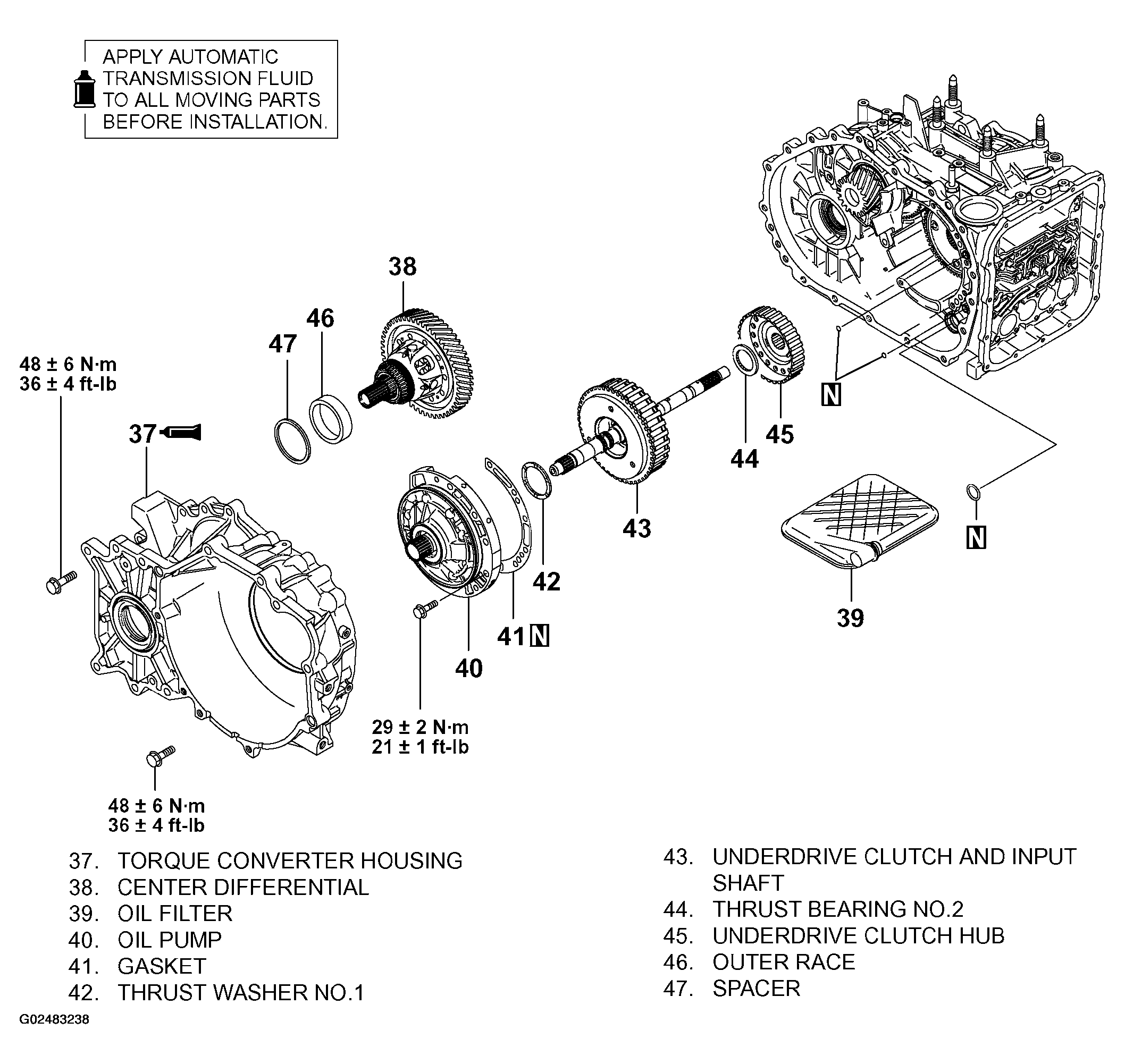

< W4A4B >

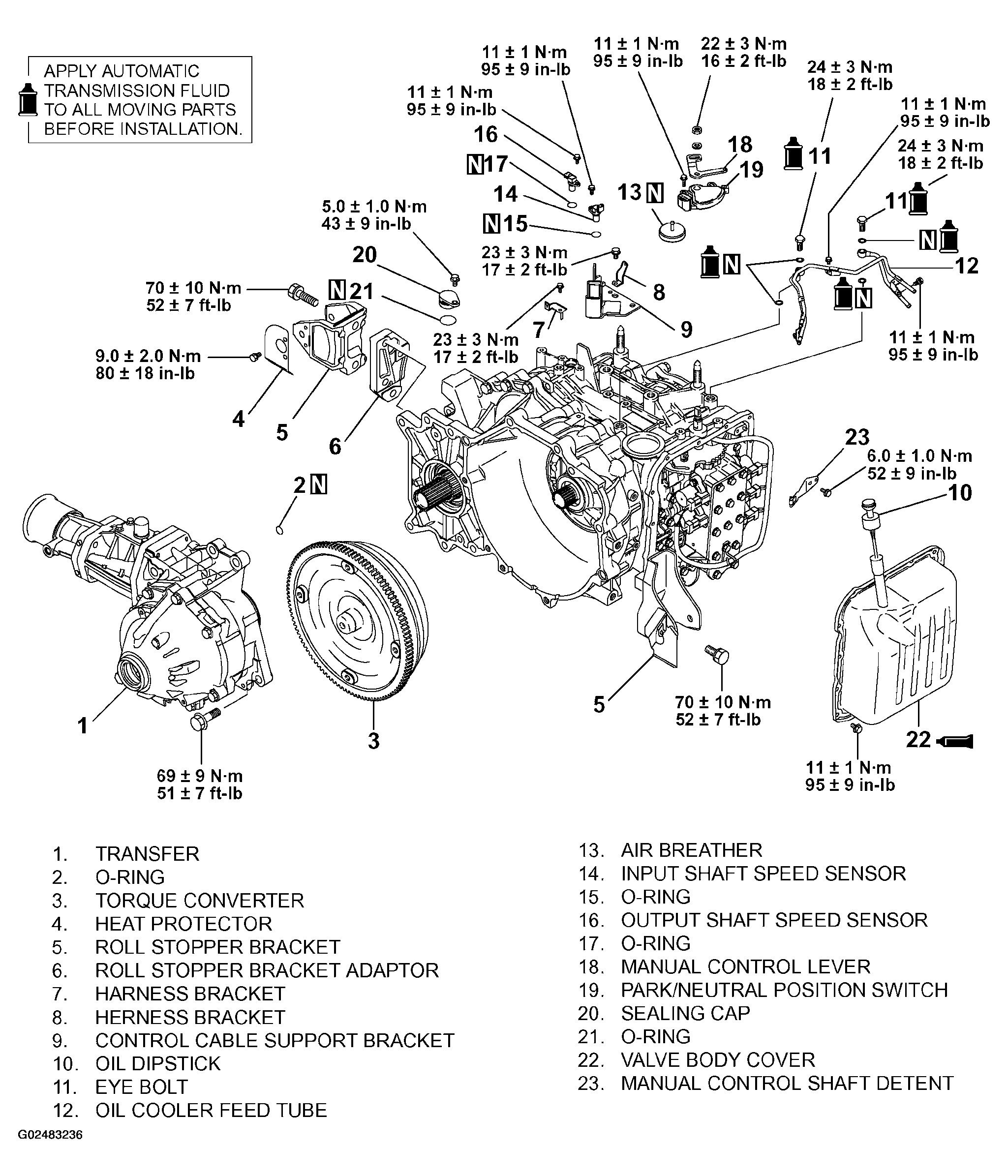

Fig 5: Disassembling/Assembling Transaxle W4A4B (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

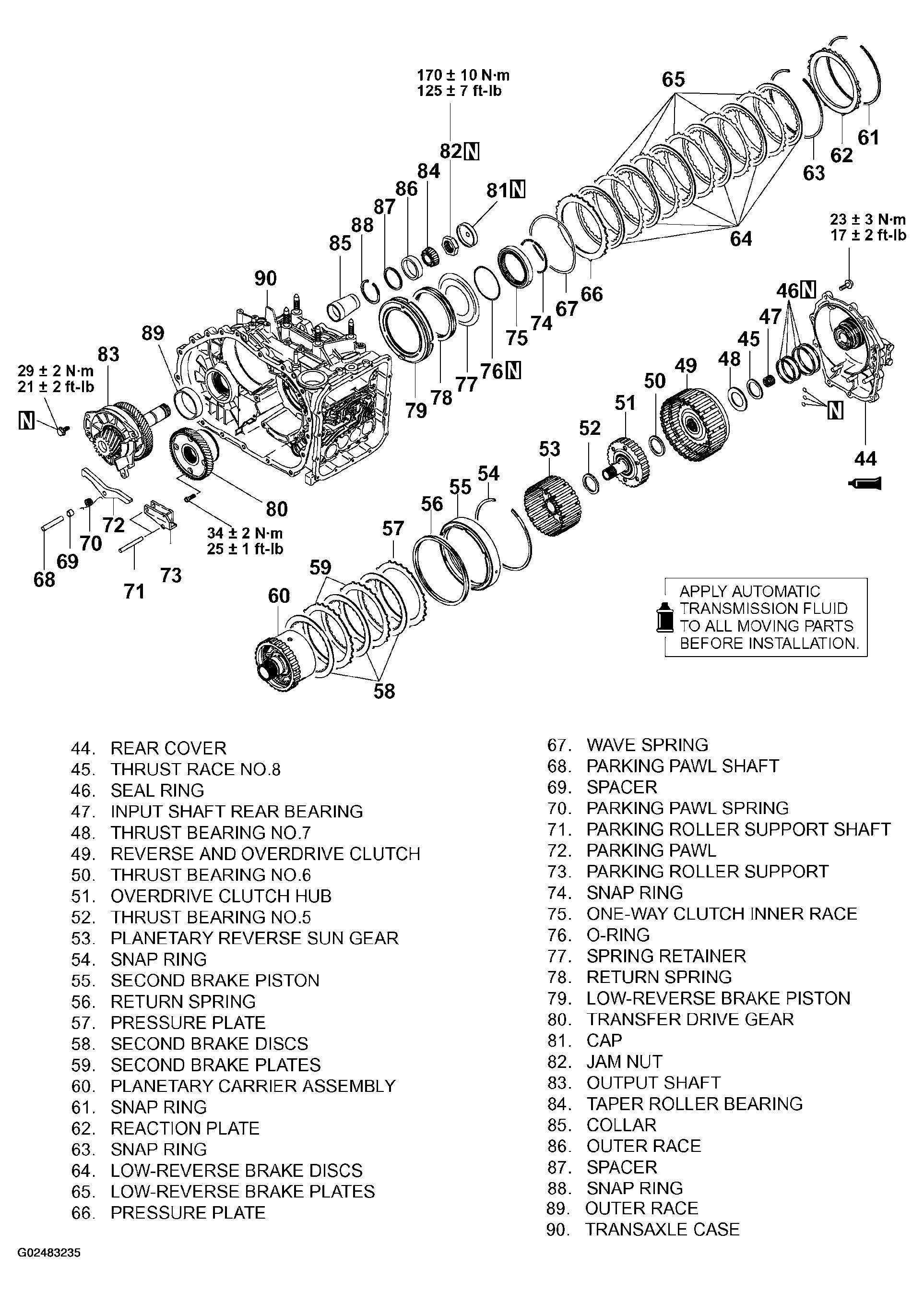

Fig 6: Disassembling/Assembling Transaxle W4A4B (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

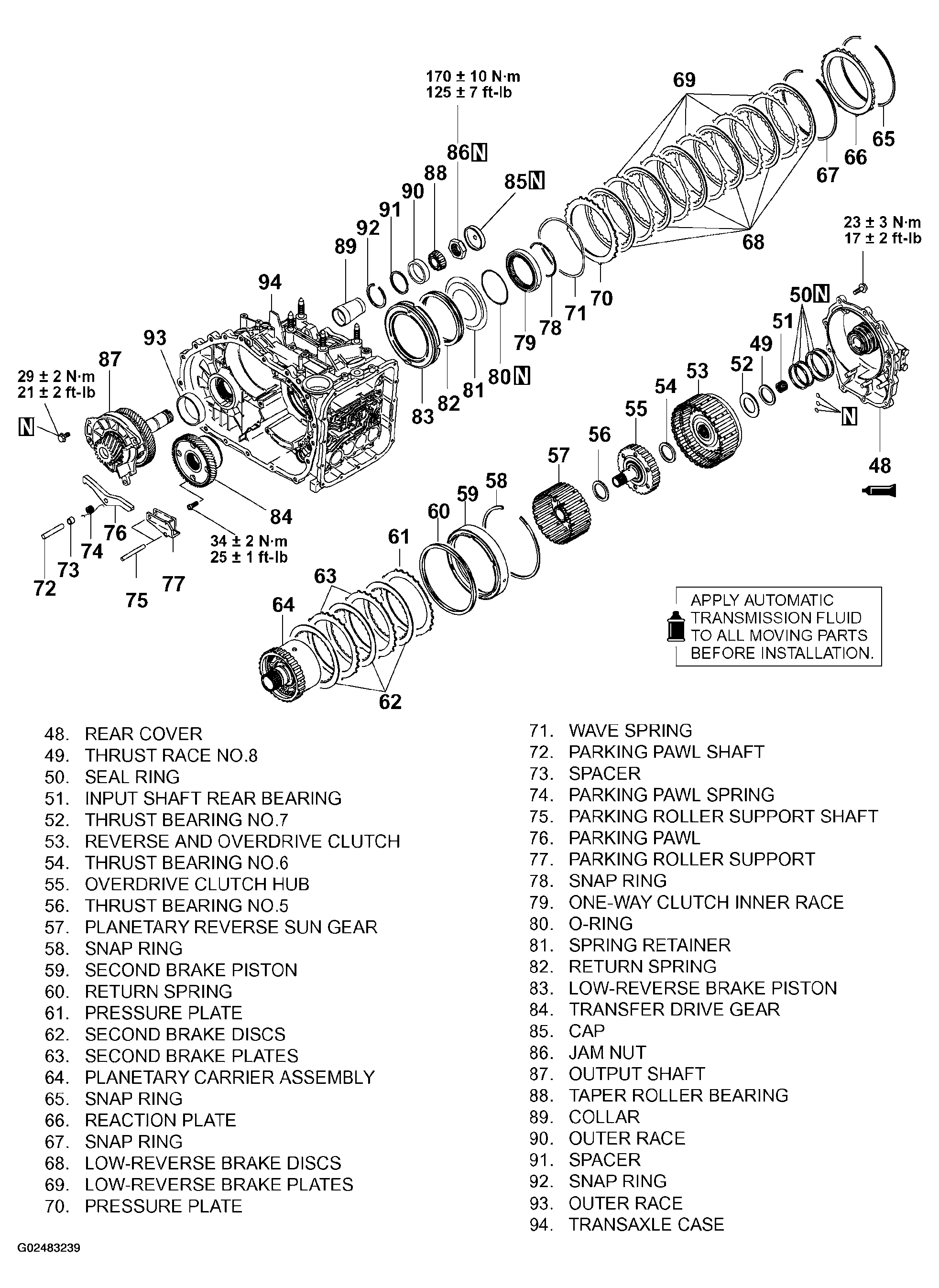

Fig 7: Disassembling/Assembling Transaxle W4A4B (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Disassembling/Assembling Transaxle W4A4B (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
