Disassembly And Assembly: Notes

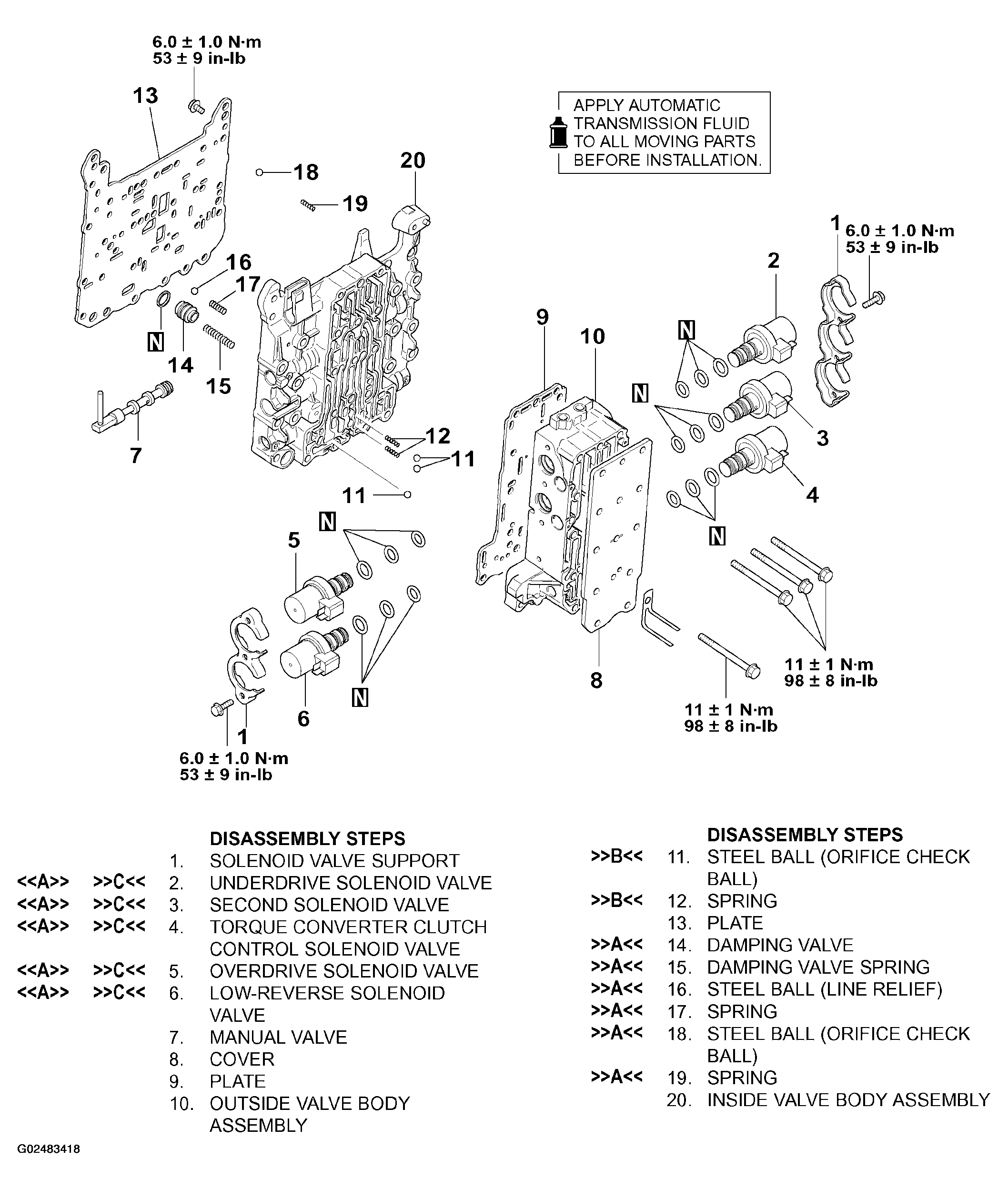

Fig 1: Disassembling/Assembling Valve Body (1 Of 3)
G02483418Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Disassembling/Assembling Valve Body (2 Of 3)
G02483419Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

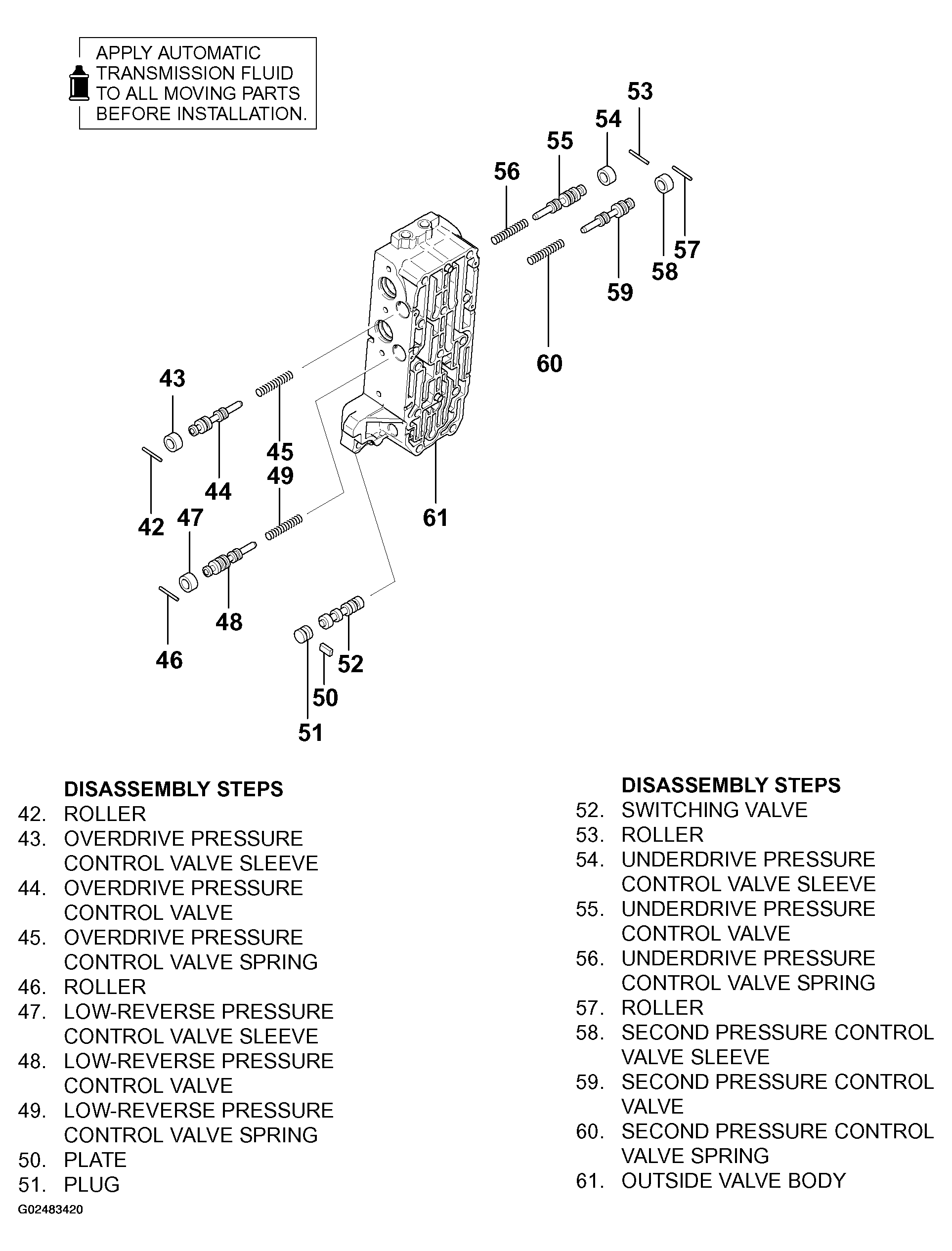

Fig 3: Disassembling/Assembling Valve Body (3 Of 3)
G02483420Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
