Special Tools

SPECIAL TOOLS CHART

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04297738

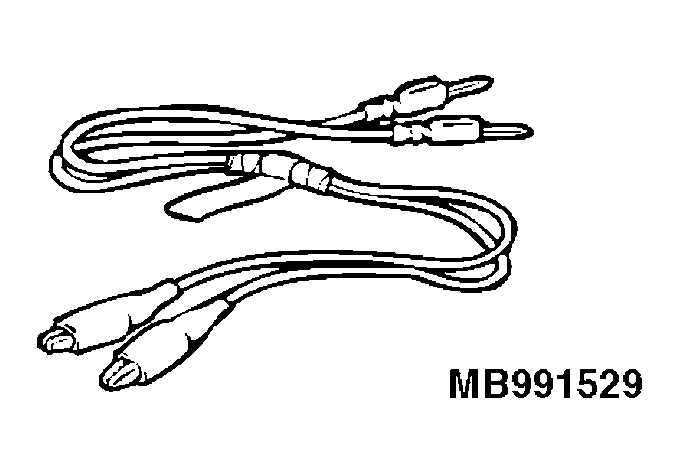

 MB991529 Diagnostic trouble code check harness Tool not necessary if scan tool (M.U.T.-III) is available
  • For registration of secret code
  • For setting of hazard answerback function
G04297739G04297740G04297741G04297742G04297743G04297744G04297745
G04297739G04297740G04297741G04297742G04297743G04297744G04297745
G04297739G04297740G04297741G04297742G04297743G04297744G04297745
G04297739G04297740G04297741G04297742G04297743G04297744G04297745
G04297739G04297740G04297741G04297742G04297743G04297744G04297745
G04297739G04297740G04297741G04297742G04297743G04297744G04297745
G04297739G04297740G04297741G04297742G04297743G04297744G04297745
 MB991958

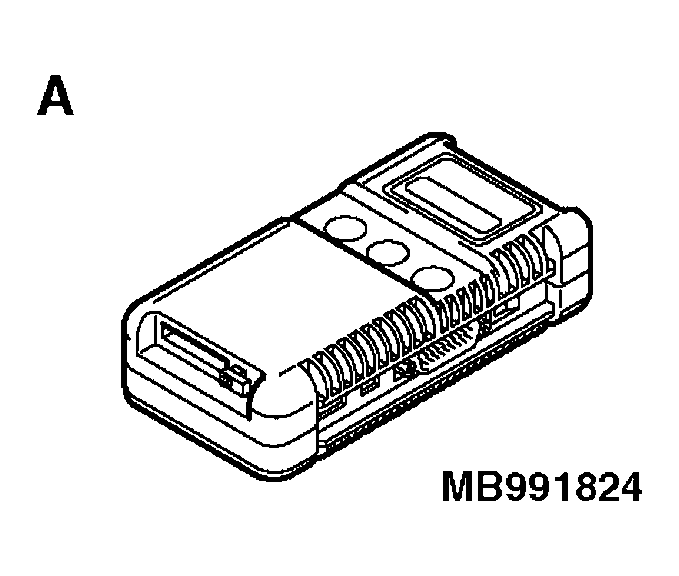

  1. MB991824

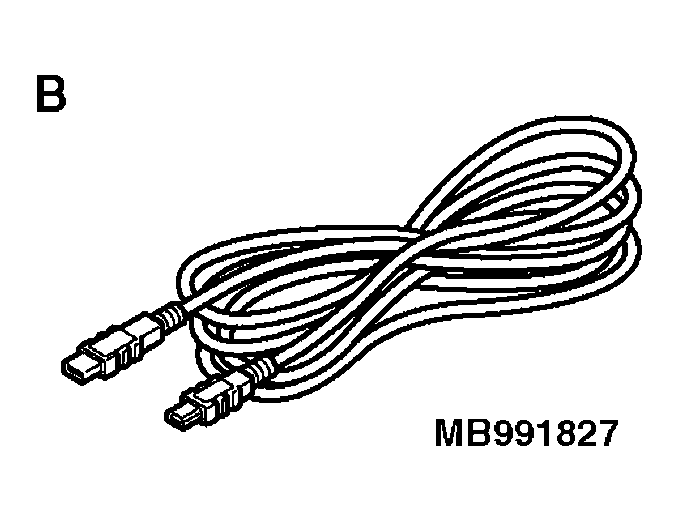

  2. MB991827

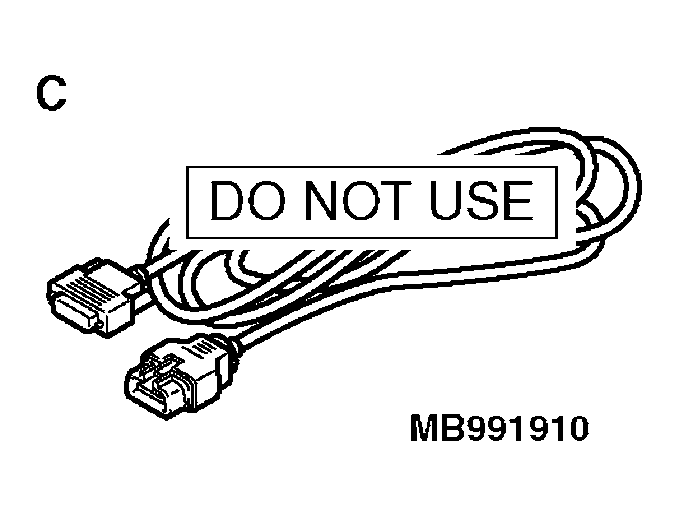

  3. MB991910

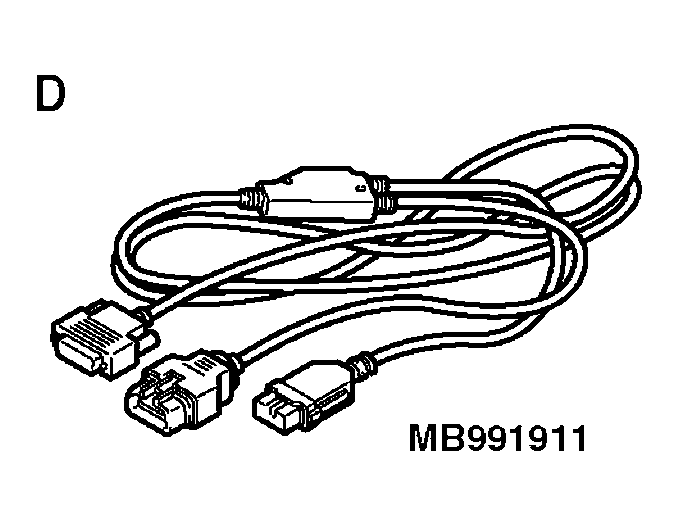

  4. MB991911
  5. MB991914

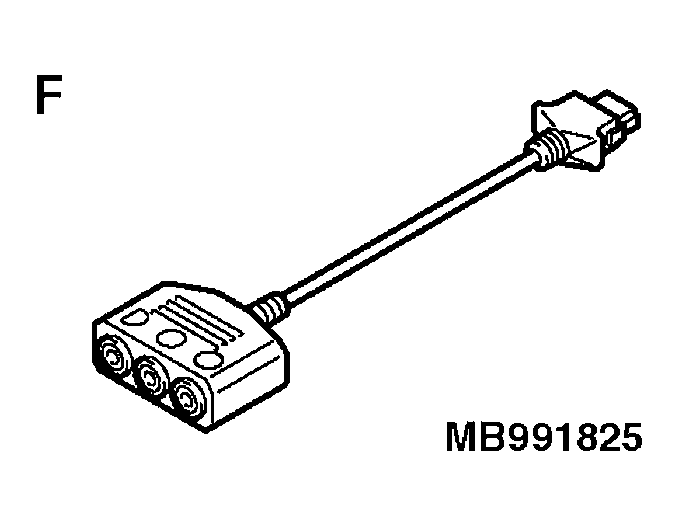

  6. MB991825

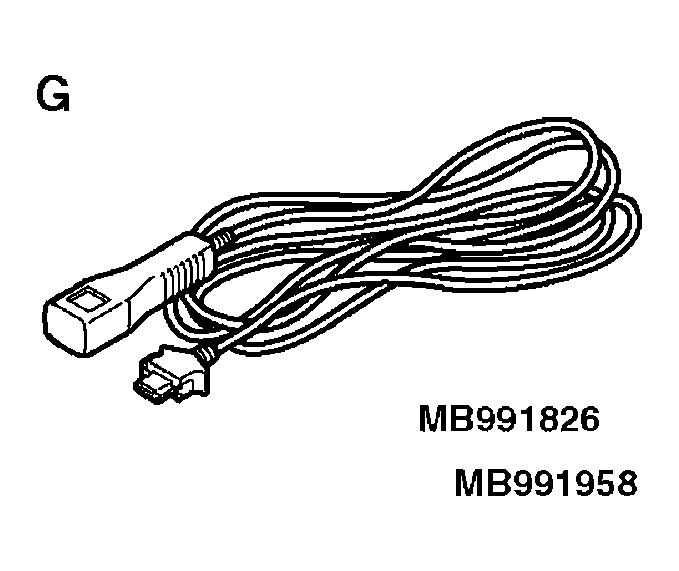

  7. MB991826

M.U.T.-III sub assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Daimler Chrysler models only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.
  • For registration of secret code
  • For setting of hazard answerback function
CAUTION: M.U.T.-III main harness B (MB991911) should be used. M.U.T.-III main harness A and C should not be used for this vehicle.
